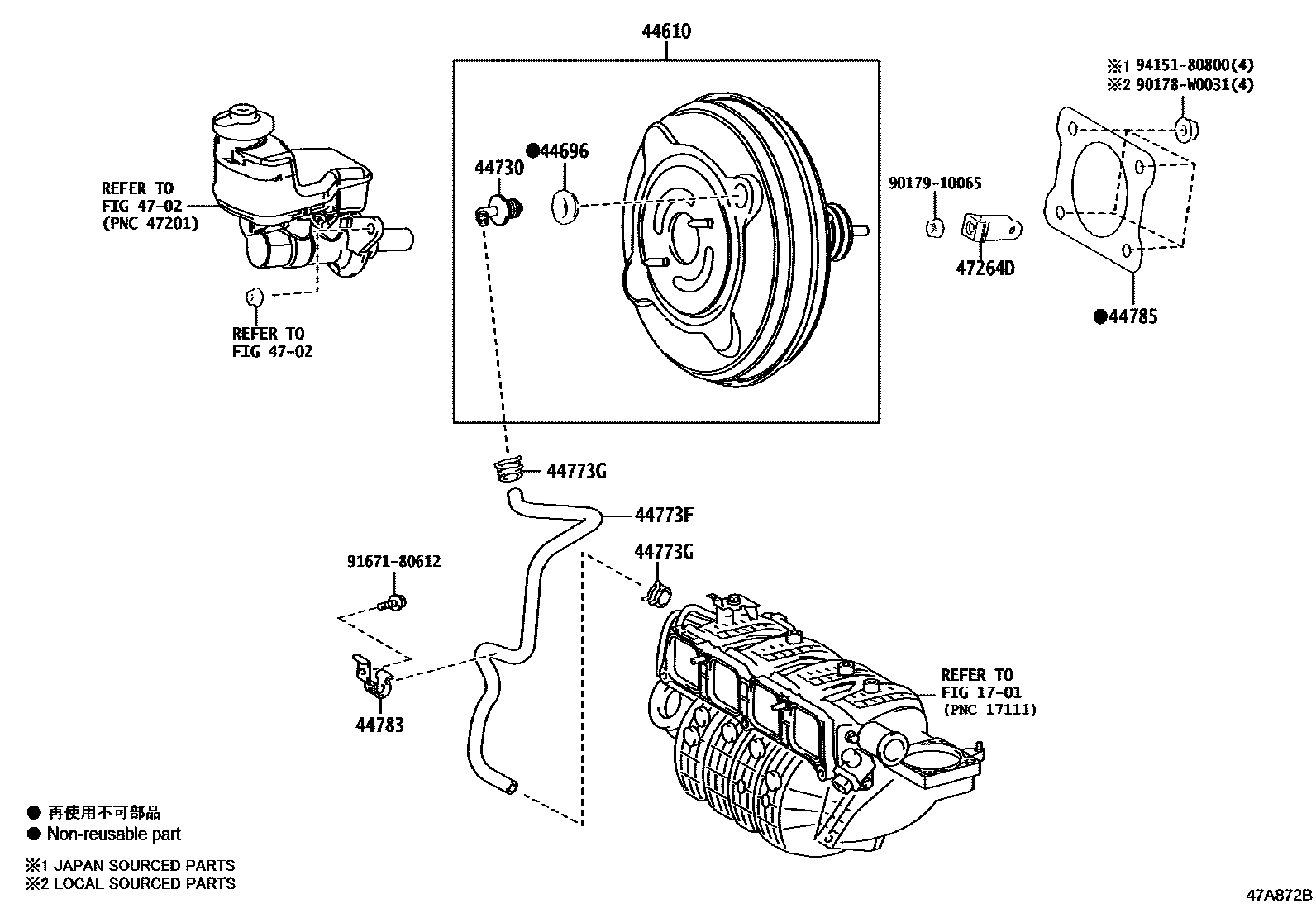

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1

1701

44610BOOSTER ASSY, BRAKE

main44610-33B20iASV71,AXVA70,GSV70201709-202101

main44610-33B30iASV70..RUS201709-202104

main44610-33B60iASV70..RHD201709-202101

main44610-33C30iAXVA70,GSV70..JPP..LHD202102-202203

main44610-33C60iAXVA70..RHD202102

44696GROMMET, CHECK VALVE

main90480-24439iASV71,GSV70..RUS201709-202203

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iAXVA70..RHD201709-202101

main44730-22150iASV71,AXVA70,GSV70201709-202101

main44730-30060iAXVA70,GSV70..JPP..LHD202102-202203

main44730-60070iASV70..LHD..EUR201709-202104

44773FHOSE, UNION TO CHECK VALVE

main44773-33180iAXVA70201709-202203

main44773-33190iGSV70..EUR201709-202203

main44773-33200iASV71201804-202104

main44773-33220iASV70..RHD201709-202101

main44773-33260iAXVA70..JPP..LHD202107

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iASV70..RHD;AXVA70,GSV70..EUR201709-202203

44783CLAMP, VACUUM HOSE

main44783-42030iASV70..EUR201709-202104

44785GASKET, BRAKE BOOSTER

main44785-05020iASV70,AXVA70,GSV70..EUR201709-202203

#,(L)

main44785-12040iAXVA70,GSV70,MXVA71..RUS201709-202203

#,(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iAXVA70,GSV70,MXVA71..RUS201709-202203

90178W0031

main90178-W0031

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

14 parts on this diagram · 6 diagrams in section
