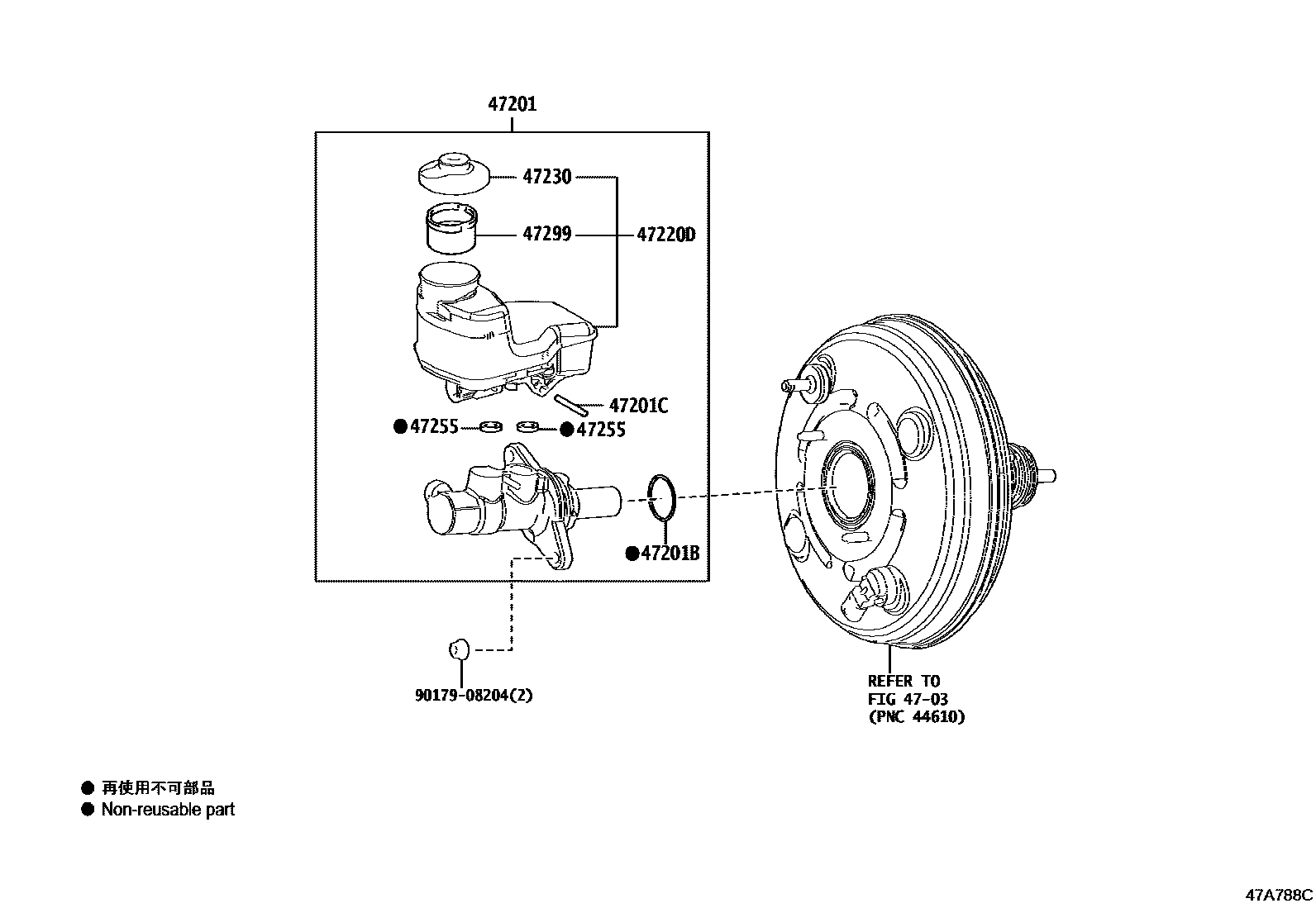

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33610iASV70..RUS201709-202104

main47201-33640iASV70..RHD201709-202101

main47201-33660iASV71,GSV70..RUS202102-202203

main47201-33670iAXVA70..RHD202102

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASV70,AXVA70,GSV70..EUR201709-202203

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAXVA70,GSV70,MXVA71..RUS201709-202203

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-33340iASV70,AXVA70,GSV70..EUR201709-202203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iAXVH71..RHD202002-202009

sub47230-47090

main47230-47090iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASV70,AXVA70,GSV70..EUR201709-202203

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASV70,AXVA70,GSV70..EUR201709-202203

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
