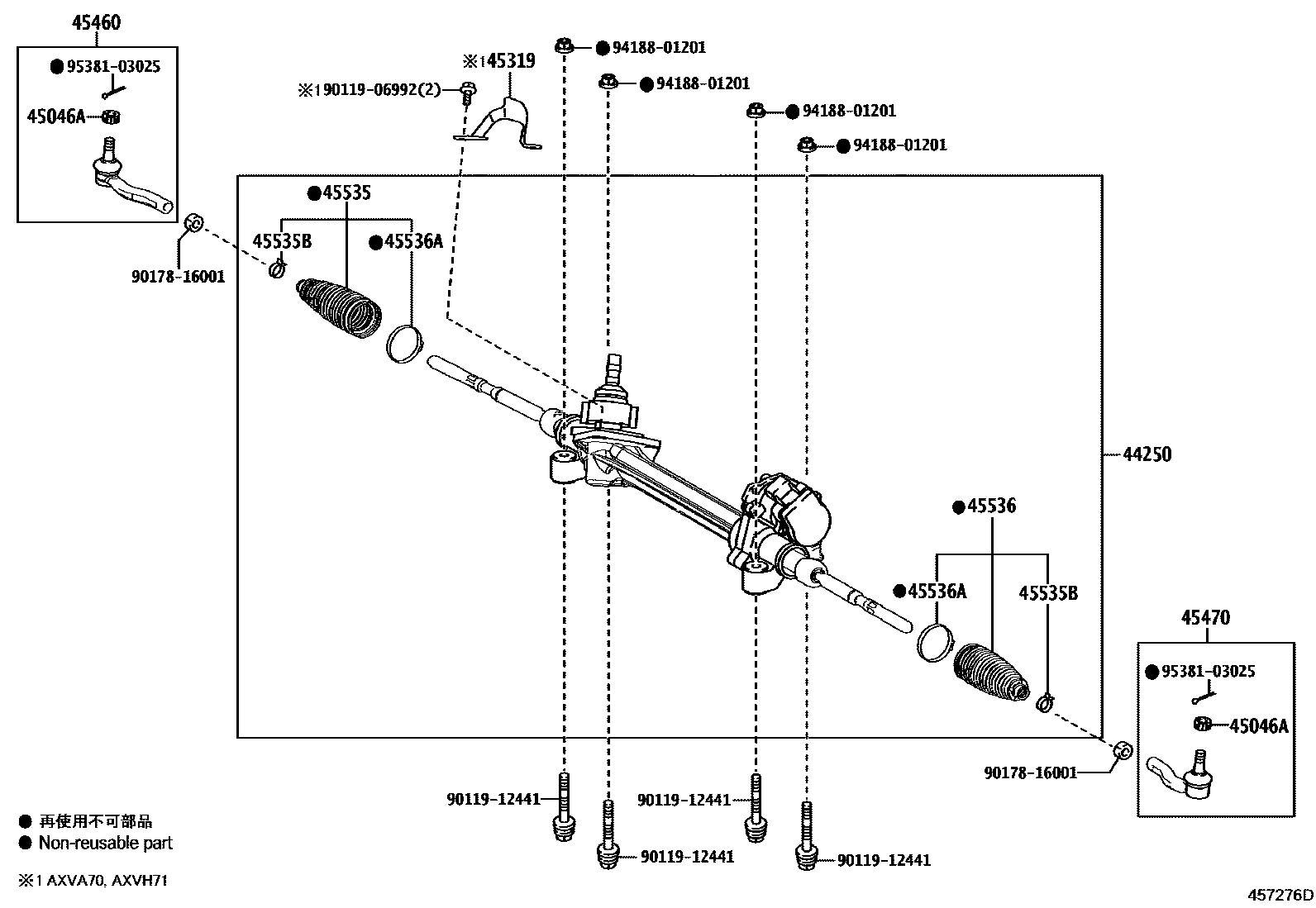

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06380iAXVH71..LHD..N201709-201909

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

sub44250-06382

main44250-33610iGSV70201709-201909

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

sub44250-33611

main44250-33611iASV70..LHD..EUR201910-202104

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

main44250-33612iAXVA70,MXVA71..RUS202102-202203

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

main44250-33612iGSV70..EUR202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 2

main44250-33612iGSV70..EUR202102

UKRAINE SPEC&EU SALE SPECIFICATIONS 2

main44250-33620iAXVH71,GSV70..LHD..(G,N)201709-201909

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

sub44250-33621

main44250-33621iGSV70..RUS201910-202104

TMR SALE SPECIFICATIONS 5

main44250-33621iGSV70..RUS201910-202104

TMR SALE SPECIFICATIONS 4&TMR SPORTY PACKAGE

main44250-33621iASV70..RUS201910-202104

TMR SALE SPECIFICATIONS 4.5

main44250-33621iASV70..LHD..EUR201910-202101

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

main44250-33622iAXVH71..LHD..D202102

UKRAINE SPEC&EU SALE SPECIFICATIONS 4

main44250-33622iGSV70..RUS202102-202203

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

main44250-33622iAXVH71..LHD..N202102-202312

main44250-33622iAXVH71..LHD..D202102

UKRAINE SPEC&EU SALE SPECIFICATIONS 6

main44250-33622iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4

main44250-33622iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6

main44250-33640iAXVH71..RHD..N201709-201909

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

sub44250-33641

main44250-33641iASV70..RHD201910-202101

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

main44250-33642iAXVA70..RHD202102

TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE

main44250-33650iASV70..RHD201709-201909

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

sub44250-33651

main44250-33651iASV70..RHD201910-202101

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

main44250-33652iAXVH71..RHD..(N,S)202102

TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE

main44250-33662iAXVH71..RHD..D202401

main44250-33700iAXVH71..LHD..D201902-201909

sub44250-33701

main44250-33701iAXVH71..LHD..D201910-202101

main44250-33702iAXVH71..LHD..D202102

main44250-33790iAXVH71..RHD..D201902-201909

sub44250-33791

main44250-33791iAXVH71..RHD..D201910-202101

main44250-33792iAXVH71..RHD..D202102-202401

main44250-33A30iAXVA70,AXVH70201910-202101

main44250-33A31iAXVH70202102

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

45319INSULATOR, STEERING GEAR HEAT

main45319-33010iAXVA70,MXVA71..RUS201709-202312

main45319-33020iGSV70..RUS201709-202203

main45319-33030iAXVA70,AXVH71..RHD201709-202101

45460ROD ASSY, TIE, RH

main45460-80008iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

45470ROD ASSY, TIE, LH

main45470-39365iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

45535BOOT, STEERING RACK, NO.1

main45535-09500iAXVA70201709-201910

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main45535-09500iAXVA70201709-201910

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

main45535-29025iAXVA70..S;ASV70,AXVH7#,GSV70..EUR201709-202312

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iAXVH71..LHD..N201709-201909

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main45537-02020iAXVA70201709-201909

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

main45538-06030iAXVA70,AXVH70201910-202101

main45538-06030iAXVH70202102

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main45538-06030iAXVH70202102

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

main90467-19021iAXVA70,GSV70,MXVA71..RUS201709-202312

45536BOOT, STEERING RACK, NO.2

main45535-09500iAXVH71..LHD..N201709-201910

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main45535-09500iAXVA70201709-201910

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

main45535-29025iAXVA70,GSV70,MXVA71..RUS201709-202312

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-06030iASV70,AXVH71,GSV70..EUR201709-202312

main45538-0T010iAXVH71..LHD..N201709-201909

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

main45538-0T010iAXVA70201709-201909

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main90467-19021iAXVA70,AXVH70201910-202101

main90467-19021iAXVH70202102

KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE

main90467-19021iAXVH70202102

KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE

9011906992

main90119-06992

9011912441

main90119-12441

9017816001

main90178-16001

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 3 diagrams in section
