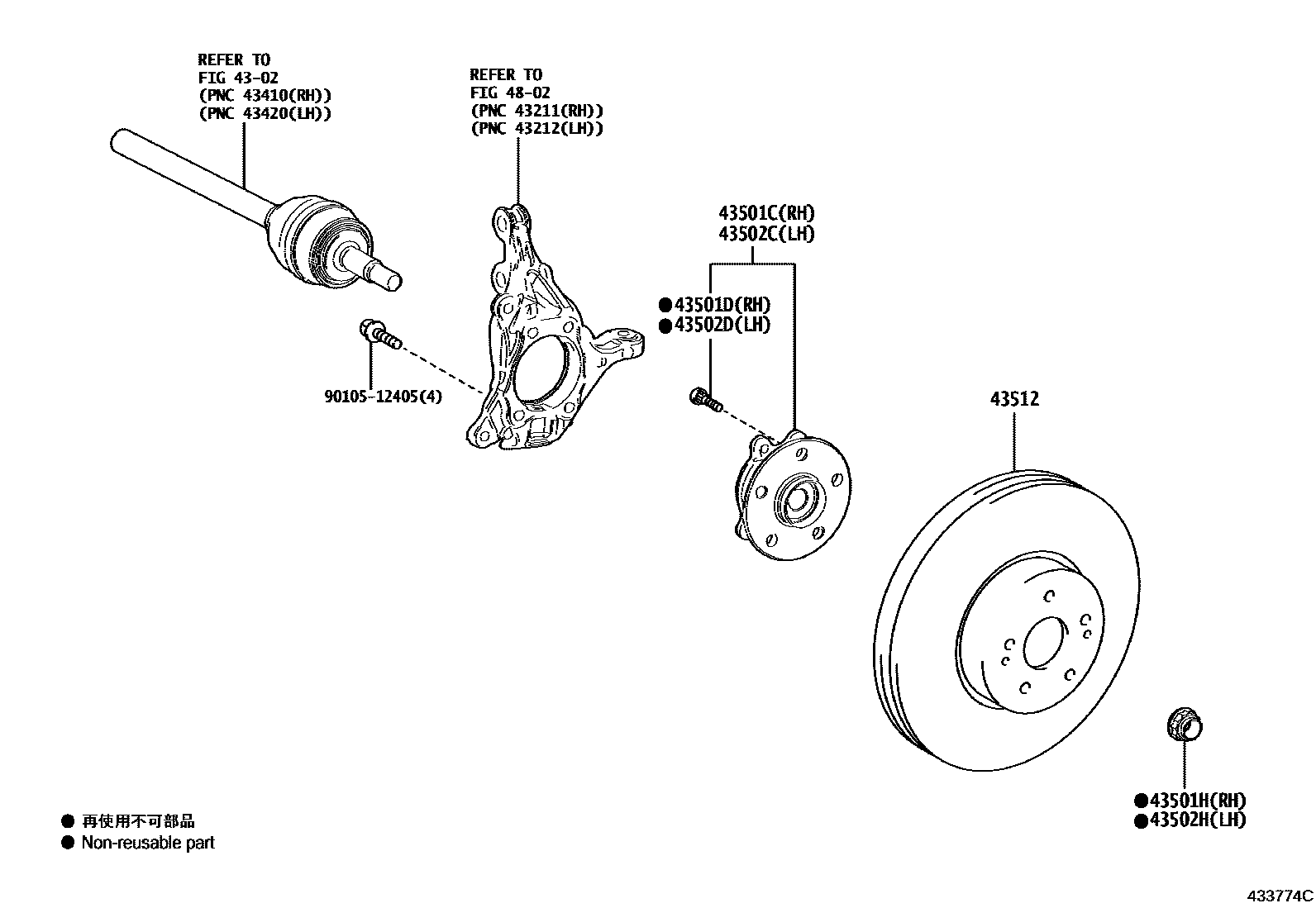

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33010iASV70,AXVA70..EUR201709-202207

sub43550-33070

main43550-33020iGSV70..EUR201709-202207

main43550-33050iGSV70..EUR202208

main43550-33070iAXVA70,AXVH7#..JPP202208-202308

main43550-33090iAXVH71..LHD..N202309-202312

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33010iASV70,AXVA70..EUR201709-202207

sub43550-33070

main43550-33020iAXVH7#,GSV70..EUR201709-202207

main43550-33050iGSV70..EUR202208

main43550-33070iAXVA70,AXVH7#..JPP202208-202308

main43550-33090iAXVH71..LHD..N202309-202312

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

43512DISC, FRONT

main43512-33150iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main43512-33150iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main43512-33150iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main43512-48130iAXVH71..D201902-202101

4802

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
