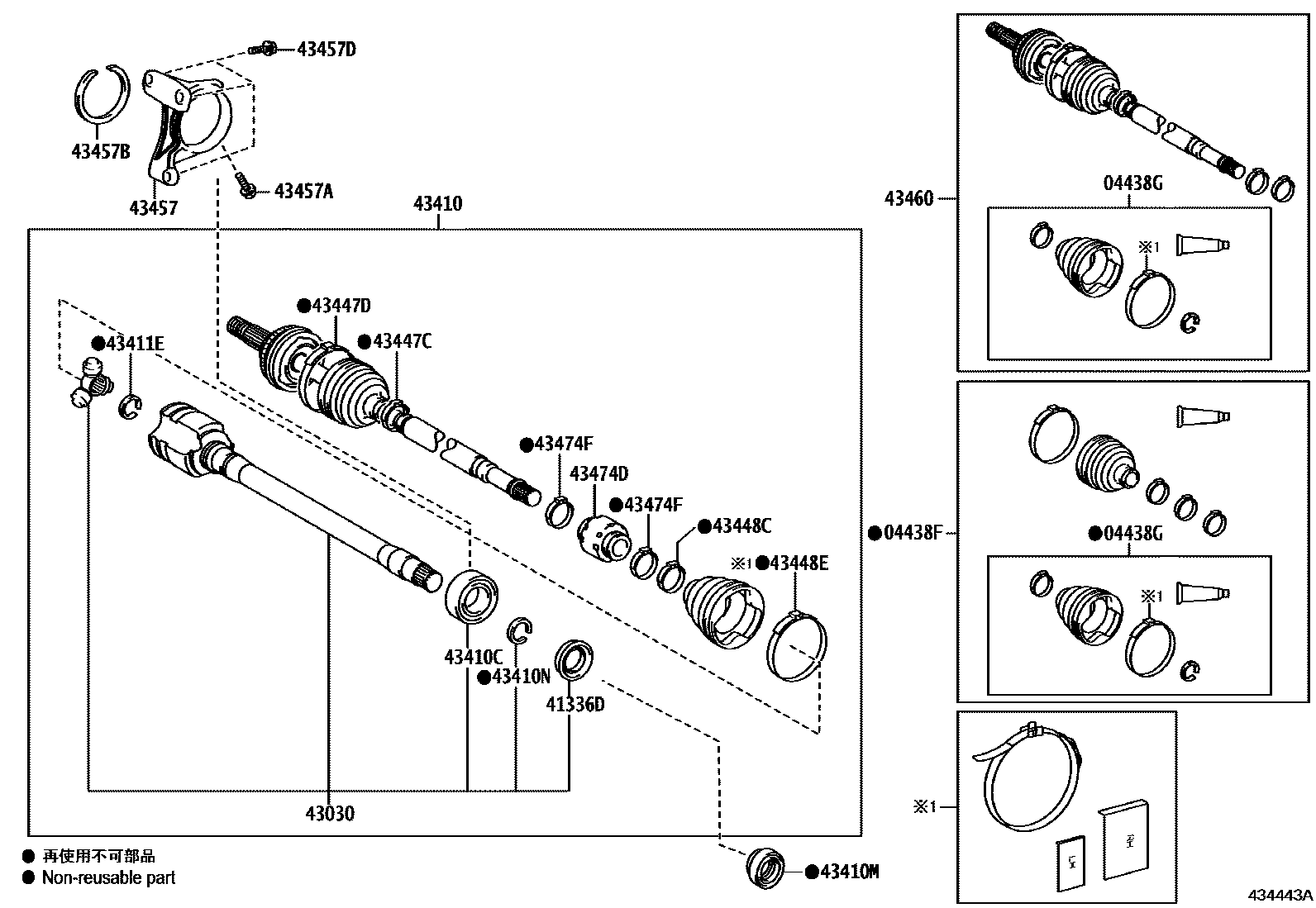

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH 0006 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-33110iGSV70..RUS201709-202203

main04427-33120iAXVH71..LHD..N¥6,700201709-202312

main04427-33130iAXVH7#¥7,500201709-202101

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33080iGSV70..RUS201709-202203

main04437-33090iASV70,AXVA70,AXVH7#..EUR¥4,150201709-202312

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iASV70..EUR¥330201709-202104

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-33060iAXVA70¥19,900201709-202203

main43030-33070iAXVH70;AXVH71..RHD;AXVH71..LHD..D¥19,900201709-202312

main43030-33080iASV7#..RUS201709-202104

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33350iAXVA70¥53,800201709-202203

main43410-33360iAXVH7#¥59,200201709-202101

main43410-33370iGSV70..EUR201709-202203

main43410-33380iASV7#..RUS201709-202104

main43410-33430iAXVH71..LHD..N¥53,800202102-202312

main43410-33440iMXVA71202104-202203

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003iASV70..EUR¥2,750201709-202104

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iASV70..EUR¥400201709-202104

main90311-40046iGSV70..RUS¥470201709-202203

main90311-40046iAXVH70¥470202008-202312

TYPE A:REFER ILLUST.

main90311-40047iMXVA71¥470202104-202203

main90311-40049iAXVH70¥470202008-202101

TYPE B:REFER ILLUST.

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78010iGSV70..RUS¥200201709-202203

main90520-38015iAXVH71..LHD..N¥100201709-202312

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iASV70,AXVA70,AXVH7#..EUR¥40201709-202312

main43425-58030iGSV70..EUR¥60201709-202203

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42100iAXVH71..LHD..N¥220201709-202312

main42345-42120iAXVH7#¥220201709-202101

main42345-48160iGSV70..EUR¥260201709-202203

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42090iAXVA70,MXVA71..RUS¥340201709-202312

main42345-42110iAXVH7#¥350201709-202101

main42345-78050iGSV70..RUS¥440201709-202203

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-28090iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70..JPP¥400202310-202312

main42345-33120iASV70,AXVA70,AXVH7#..EUR¥260201709-202104

main42345-48140iGSV70..EUR¥260201709-202203

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33140iASV7#..RUS¥1,480201709-202312

main42345-48130iGSV70..EUR¥450201709-202203

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAXVA70..JPP¥3,520201709-202203

main43457-33060iMXVA71¥3,400201709-202312

main43457-42030iGSV70..EUR¥3,610201709-202203

main43457-48010iASV70..EUR¥4,270201709-202104

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iGSV70..EUR¥110201709-202312

*10-1.25PX22-19.5,(J)

main90105-10361iGSV70..EUR¥110201709-202101

*10-1.25PX22-19.5

main90105-W0214iGSV70..EUR¥100201709-202312

*10-1.25PX22-19.5,(L)

main90119-10461iASV7#..RUS¥200201709-202104

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iASV70..EUR¥160201709-202104

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iAXVA70,AXVH7#,GSV70..EUR¥100201709-202104

main90105-10381iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP¥100202102-202312

(J)

main90105-W0215iAXVH71..LHD..N202102-202312

(L)

main90105-W0215iASV70..EUR201709-202104

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-39625iGSV70..EUR201709-202104

main43470-80412iASV70,AXVA70..EUR¥34,800201709-202104

main43470-80413iAXVH71¥34,900201709-201711

sub43470-80459¥45,000

main43470-80459iAXVH7#¥45,000201711-202101

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-33030iGSV70..RUS201709-202203

main43474-48080iASV7#..RUS¥2,480201709-202312

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790iGSV70..EUR¥190201709-202203

main42345-12090iASV70,AXVA70,AXVH7#..EUR¥140201709-202312

20 parts on this diagram · 6 diagrams in section
