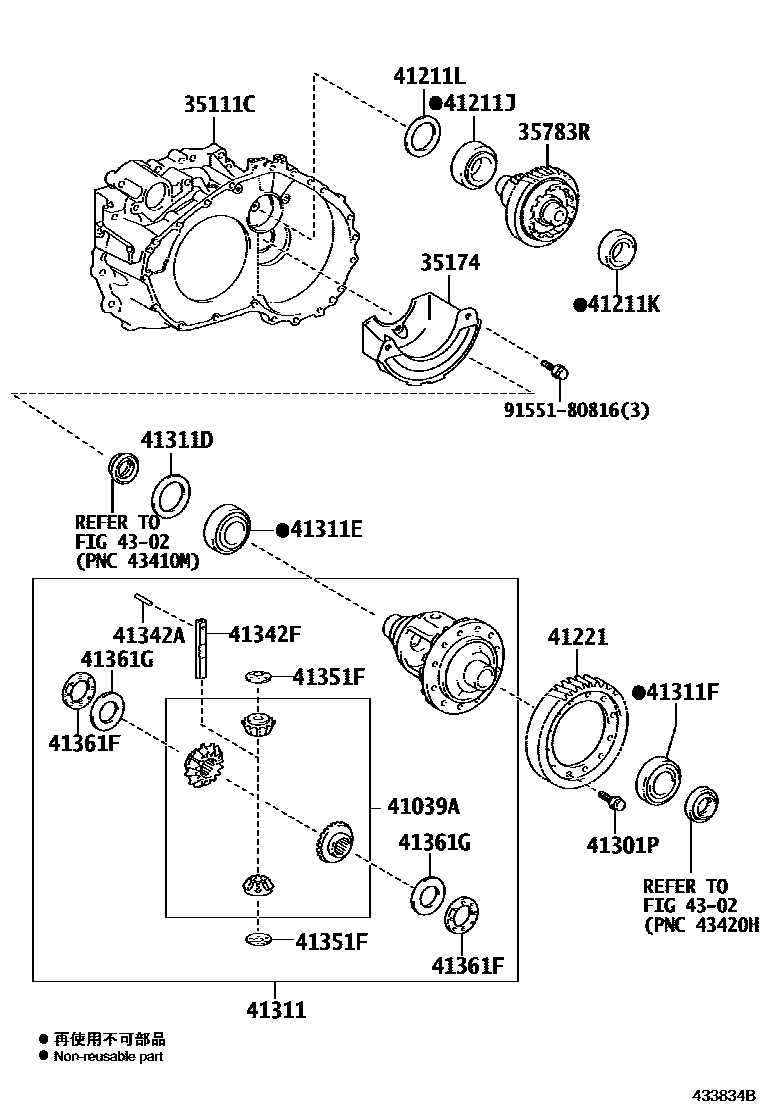

FRONT AXLE HOUSING & DIFFERENTIAL
35174SEPARATOR, TRANSAXLE HOUSING OIL
TOYOTA:REFER 35-01
AISIN:REFER 35-01
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
(J)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
(J)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=2.000
T=2.000,(J)
T=2.025
T=2.025,(J)
T=2.050
T=2.050,(J)
T=2.075
T=2.075,(J)
T=2.100,(J)
T=2.100
T=2.125
T=2.125,(J)
T=2.150,(J)
T=2.150
T=2.175
T=2.175,(J)
T=2.200
T=2.200,(J)
T=2.225
T=2.225,(J)
T=2.250
T=2.250,(J)
T=2.275
T=2.275,(J)
T=2.300
T=2.300,(J)
T=2.325
T=2.325,(J)
T=2.350
T=2.350,(J)
T=2.375
T=2.375,(J)
T=2.400
T=2.400,(J)
T=2.425,(J)
T=2.425
T=2.450
T=2.450,(J)
T=2.475
T=2.475,(J)
T=2.500
T=2.500,(J)
T=2.525,(J)
T=2.525
T=2.550
T=2.550,(J)
T=2.575
T=2.575,(J)
T=2.600
T=2.600,(J)
T=2.625
T=2.625,(J)
T=2.650
T=2.650,(J)
T=2.675
T=2.675,(J)
T=2.700
T=2.700,(J)
T=2.725,(J)
T=2.725
T=2.750
T=2.750,(J)
T=2.775,(J)
T=2.775
T=2.800
T=2.800,(J)
T=2.825
T=2.825,(J)
T=2.850
T=2.850,(J)
T=2.875
T=2.875,(J)
T=2.900,(J)
T=2.900
T=2.925
T=2.925,(J)
T=2.950
T=2.950,(J)
T=2.975
T=2.975,(J)
T=3.000,(J)
T=3.000
T=1.10,MARK 50
T=1.13,MARK 51
T=1.16,MARK 52
T=1.19,MARK 53
T=1.22,MARK 54
T=1.25,MARK 55
T=1.28,MARK 56
T=1.31,MARK 57
T=1.34,MARK 58
T=1.37,MARK 59
T=1.40,MARK 60
T=1.43,MARK 61
T=1.46,MARK 62
T=1.49,MARK 63
T=1.52,MARK 64
T=1.55,MARK 65
T=1.58,MARK 66
T=1.61,MARK 67
T=1.64,MARK 68
T=1.67,MARK 69
T=1.70,MARK 70
T=1.73,MARK 71
T=1.76,MARK 72
T=1.79,MARK 73
T=1.82,MARK 74
T=1.85,MARK 75
T=1.88,MARK 76
T=1.91,MARK 77
T=1.94,MARK 78
T=1.97,MARK 79
T=2.00,MARK 80
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
(J)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.000,(J)
T=2.025
T=2.025,(J)
T=2.050
T=2.050,(J)
T=2.075
T=2.075,(J)
T=2.100
T=2.100,(J)
T=2.125,(J)
T=2.125
T=2.150
T=2.150,(J)
T=2.175
T=2.175,(J)
T=2.200
T=2.200,(J)
T=2.225
T=2.225,(J)
T=2.250
T=2.250,(J)
T=2.275
T=2.275,(J)
T=2.300
T=2.300,(J)
T=2.325
T=2.325,(J)
T=2.350
T=2.350,(J)
T=2.375
T=2.375,(J)
T=2.400
T=2.400,(J)
T=2.425
T=2.425,(J)
T=2.450
T=2.450,(J)
T=2.475,(J)
T=2.475
T=2.500
T=2.500,(J)
T=2.525
T=2.525,(J)
T=2.550
T=2.550,(J)
T=2.575,(J)
T=2.575
T=2.600
T=2.600,(J)
T=2.625,(J)
T=2.625
T=2.650
T=2.650,(J)
T=2.675
T=2.675,(J)
T=2.700
T=2.700,(J)
T=2.725
T=2.725,(J)
T=2.750
T=2.750,(J)
T=2.775
T=2.775,(J)
T=2.800
T=2.800,(J)
T=2.825,(J)
T=2.825
T=2.850
T=2.850,(J)
T=2.875
T=2.875,(J)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
OUTER
INNER
OUTER
INNER
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
OUTER
INNER
INNER
OUTER
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.90
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
9155180816
main91551-80816
20 parts on this diagram · 4 diagrams in section
