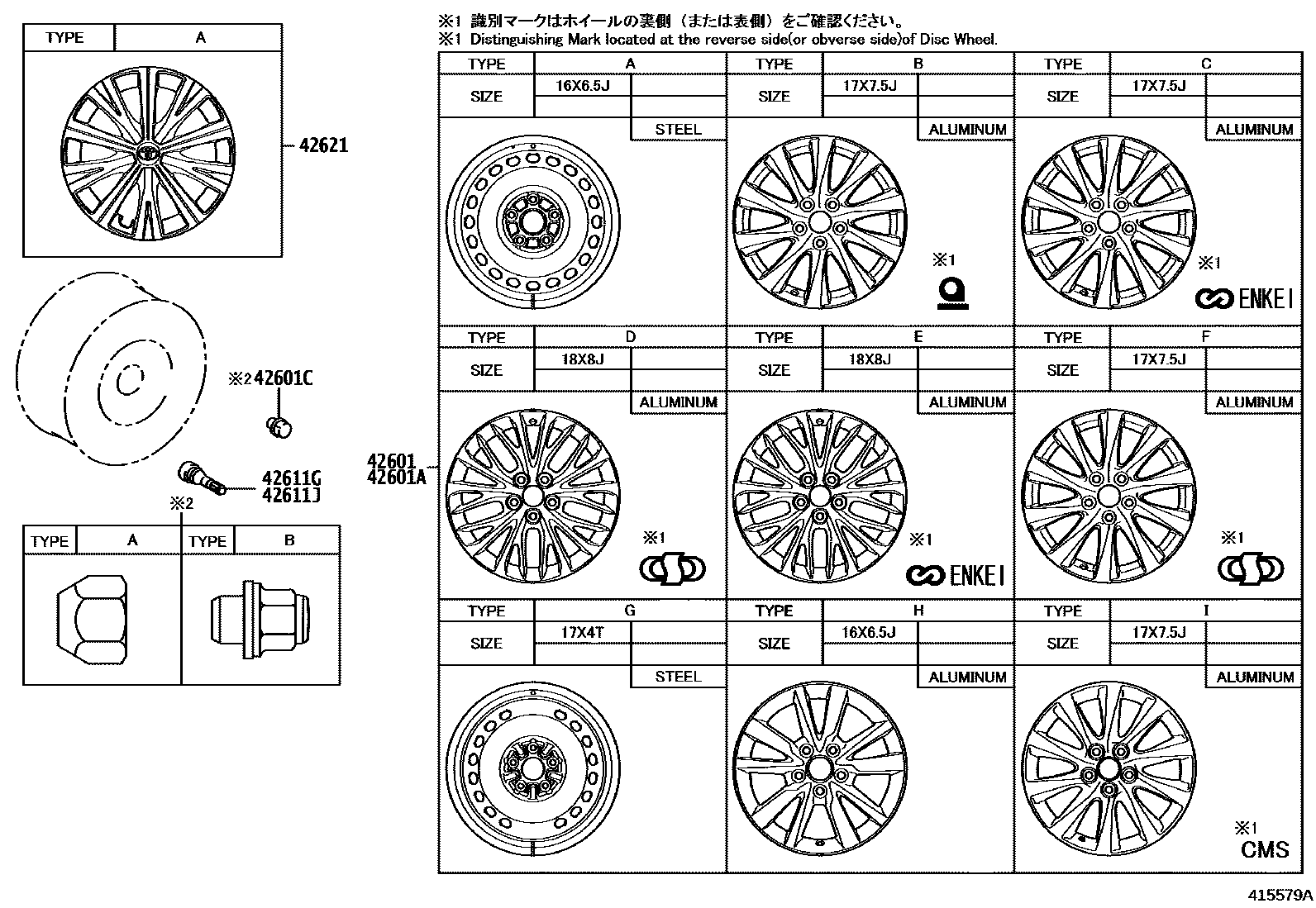

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5J,TYPE H:REFER ILLUST.
18X8J,TMR SALE SPECIFICATIONS 5,TYPE J:REFER ILLUST.
18X8J,TMR SALE SPECIFICATIONS 4.5,TYPE J:REFER ILLUST.
18X8J,TYPE J:REFER ILLUST.
17X7.5J,TYPE N:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE N:REFER ILLUST.
18X8J,TYPE R:REFER ILLUST.
16X6.5J, #,TYPE A:REFER ILLUST.
18X8J,#,TYPE D:REFER ILLUST.
18X8J,TYPE D:REFER ILLUST.
18X8J,JORDAN/LEBANON SPEC,TYPE D:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE D:REFER ILLUST.
18X8J,#,TYPE E:REFER ILLUST.
18X8J,#,TYPE D:REFER ILLUST.
17X7.5J,TYPE K:REFER ILLUST.
18X8J,TYPE S:REFER ILLUST.
18X8J,KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE,TYPE S:REFER ILLUST.
18X8J,TYPE T:REFER ILLUST.
18X8J,KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE,TYPE T:REFER ILLUST.
18X8J,TYPE S:REFER ILLUST.
18X8J,TYPE T:REFER ILLUST.
17X7.5J,UKRAINE SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE O:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE O:REFER ILLUST.
17X7.5J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,SUMMER TIRE,TYPE O:REFER ILLUST.
17X7.5J,TYPE O:REFER ILLUST.
17X7.5J,UKRAINE SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE Q:REFER ILLUST.
17X7.5J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,SUMMER TIRE,TYPE Q:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE Q:REFER ILLUST.
17X7.5J,TYPE Q:REFER ILLUST.
17X7.5J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,SUMMER TIRE,TYPE P:REFER ILLUST.
17X7.5J,UKRAINE SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE P:REFER ILLUST.
17X7.5J,TYPE P:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE P:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 4,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 6,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 3,TYPE S:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 4,TYPE S:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 6,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 3,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 4,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 6,TYPE S:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 3,TYPE S:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 4,TYPE S:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 6,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 4,TYPE T:REFER ILLUST.
18X8J,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 4,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 6,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4,TYPE T:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6,TYPE T:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 3,TYPE T:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 4,TYPE T:REFER ILLUST.
18X8J,ISRAEL SPEC&EU SALE SPECIFICATIONS 6,TYPE T:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 3,TYPE T:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 6,TYPE T:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 3,TYPE T:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 4,TYPE T:REFER ILLUST.
18X8J,EU SALE SPECIFICATIONS 6,TYPE T:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE L:REFER ILLUST.
16X6.5J,TYPE H:REFER ILLUST.
18X8J,TMR SALE SPECIFICATIONS 4.5,TYPE J:REFER ILLUST.
18X8J,TYPE J:REFER ILLUST.
18X8J,TMR SALE SPECIFICATIONS 5,TYPE J:REFER ILLUST.
16X6.5J, #,TYPE A:REFER ILLUST.
18X8J,TYPE D:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE D:REFER ILLUST.
17X4T,KOREA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE G:REFER ILLUST.
17X4T,TYPE G:REFER ILLUST.
17X4T,KOREA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE,TYPE G:REFER ILLUST.
17X7.5J,TYPE O:REFER ILLUST.
17X7.5J,TYPE Q:REFER ILLUST.
17X7.5J,TYPE P:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 3&SPARE TIRE-GROUND TIRE,TYPE S:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,AZERBAIJAN,ARMENIA,GEORGIA SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 3&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,TURKEY SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
18X8J,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 4&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&EU SALE SPECIFICATIONS 6&SPARE TIRE-GROUND TIRE,TYPE T:REFER ILLUST.
18X8J,UKRAINE SPEC&TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE T:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-235/45R18 8J ALUMINUM, SUMMER TIRE,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM, SUMMER TIRE,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-235/45R18 8J ALUMINUM,ALL SEASON TIRE,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
JORDAN/LEBANON SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
SPARE TIRE-TEMPORARY TIRE
42621CAP, WHEEL
TYPE A:REFER ILLUST.
6 parts on this diagram · 4 diagrams in section
