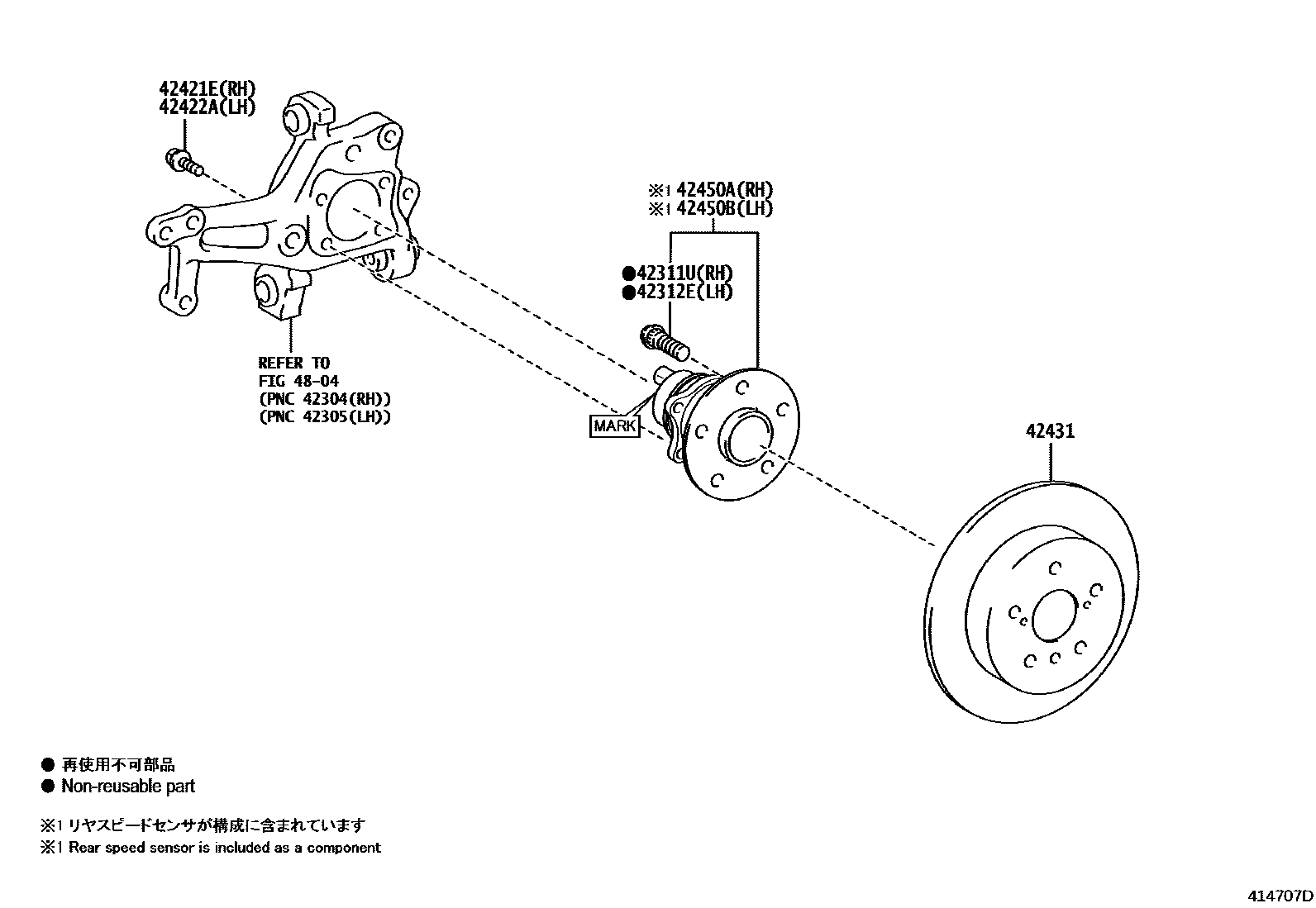

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iASV70,AXVA70,AXVH7#,GSV70..EUR¥240201709-202312

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iASV70,AXVA70,AXVH7#,GSV70..EUR¥240201709-202312

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406iASV70,AXVA70,AXVH7#,GSV70..EUR¥160201709-202312

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406iASV70,AXVA70,AXVH7#,GSV70..EUR¥160201709-202312

42431DISC, REAR

main42431-78010iASV70,AXVA70,AXVH7#,GSV70..EUR¥6,600201709-202312

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-33080iASV7#,AXVA70,AXVH71,GSV70¥25,000201709-202001

MARK=89544-33020

sub42450-42060¥22,600

main42450-42060iASV70,AXVA70,AXVH7#,GSV70..EUR¥22,600201810-202312

MARK=89544-12030

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-33080iASV7#,AXVA70,AXVH71,GSV70¥25,000201709-202001

MARK=89544-33020

sub42450-42060¥22,600

main42450-42060iASV70,AXVA70,AXVH7#,GSV70..EUR¥22,600201810-202312

MARK=89544-12030

4804

8 parts on this diagram · 1 diagram in section
