OIL COOLER & TUBE (HEV OR BEV OR FCEV)

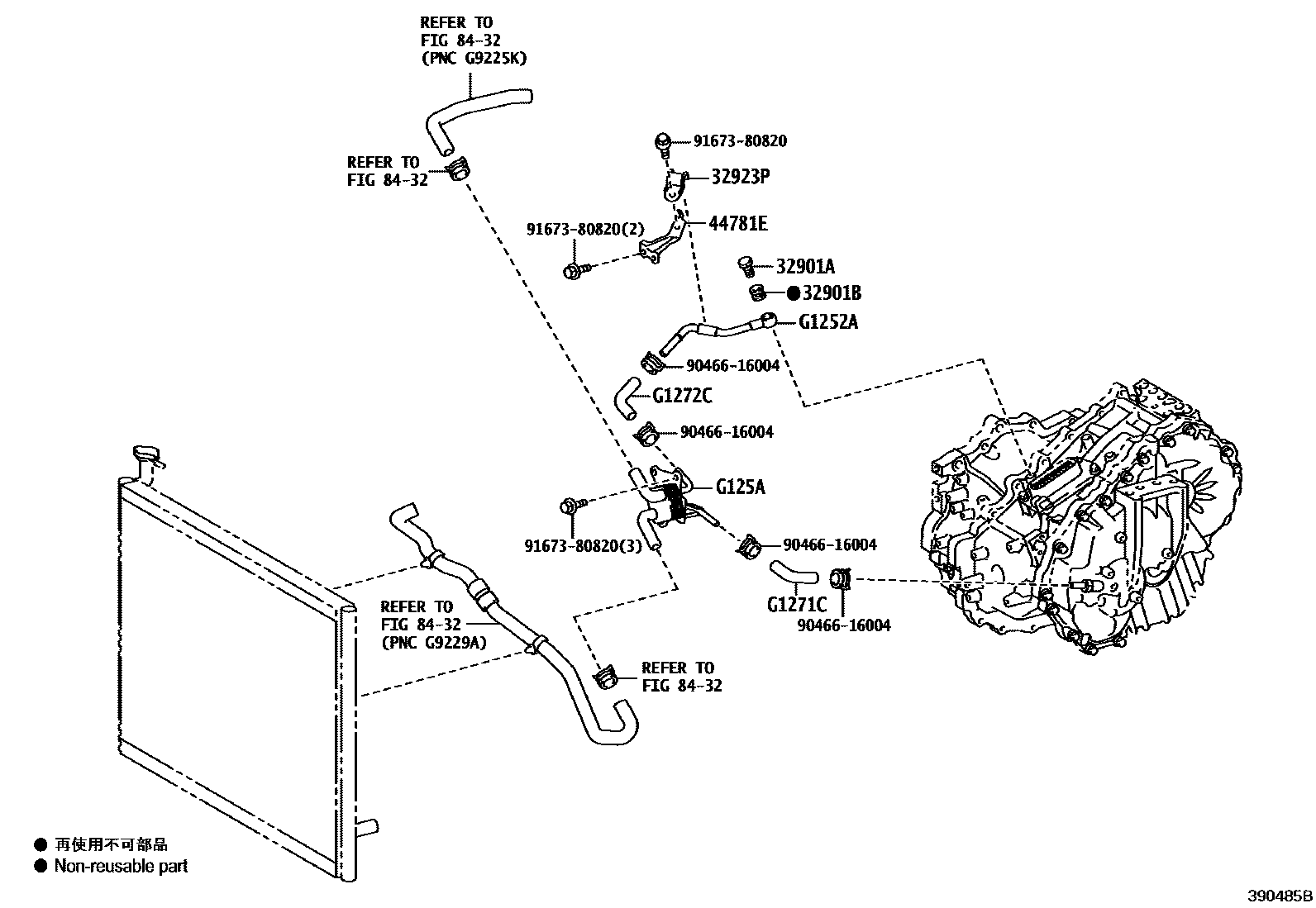

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i201709-202101

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i201709-202101

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i201709-202101

44781EBRACKET, HOSE

main44781-33020i201709-202101

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010i201709-202101

G125ACOOLER, MOTOR COOLING

mainG125A33010i201709-202101

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010i201709-202101

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010i201709-202101

9046616004

main90466-16004

9167380820

main91673-80820

11 parts on this diagram · 1 diagram in section
