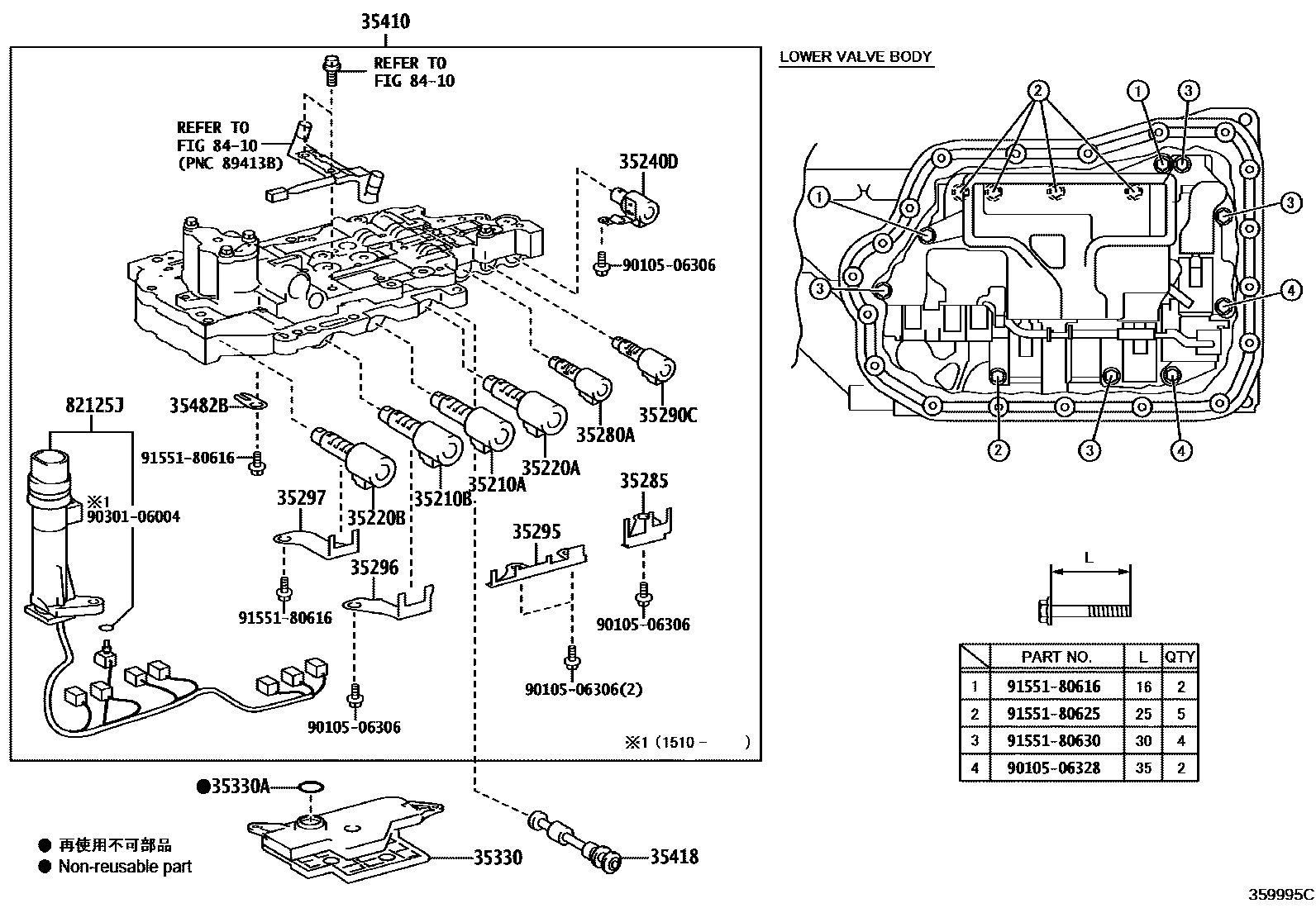

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
AISIN AW:REFER 35-01
(J)
35290CVALVE, SOLENOID(SLT)
35295PLATE, SOLENOID LOCK, NO.2
(J)
35296PLATE, SOLENOID LOCK, NO.3
(J)
35297PLATE, SOLENOID LOCK, NO.4
(J)
35330STRAINER ASSY, VALVE BODY OIL
(J)
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
sub35410-33260
AISIN:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
35482BCLAMP, TEMPERATURE SENSOR
(J)
8410
9010506306
main90105-06306
9010506328
main90105-06328
9030106004
main90301-06004
9155180616
main91551-80616
9155180625
main91551-80625
9155180630
main91551-80630
24 parts on this diagram · 4 diagrams in section
