EXHAUST GAS RECIRCULATION SYSTEM

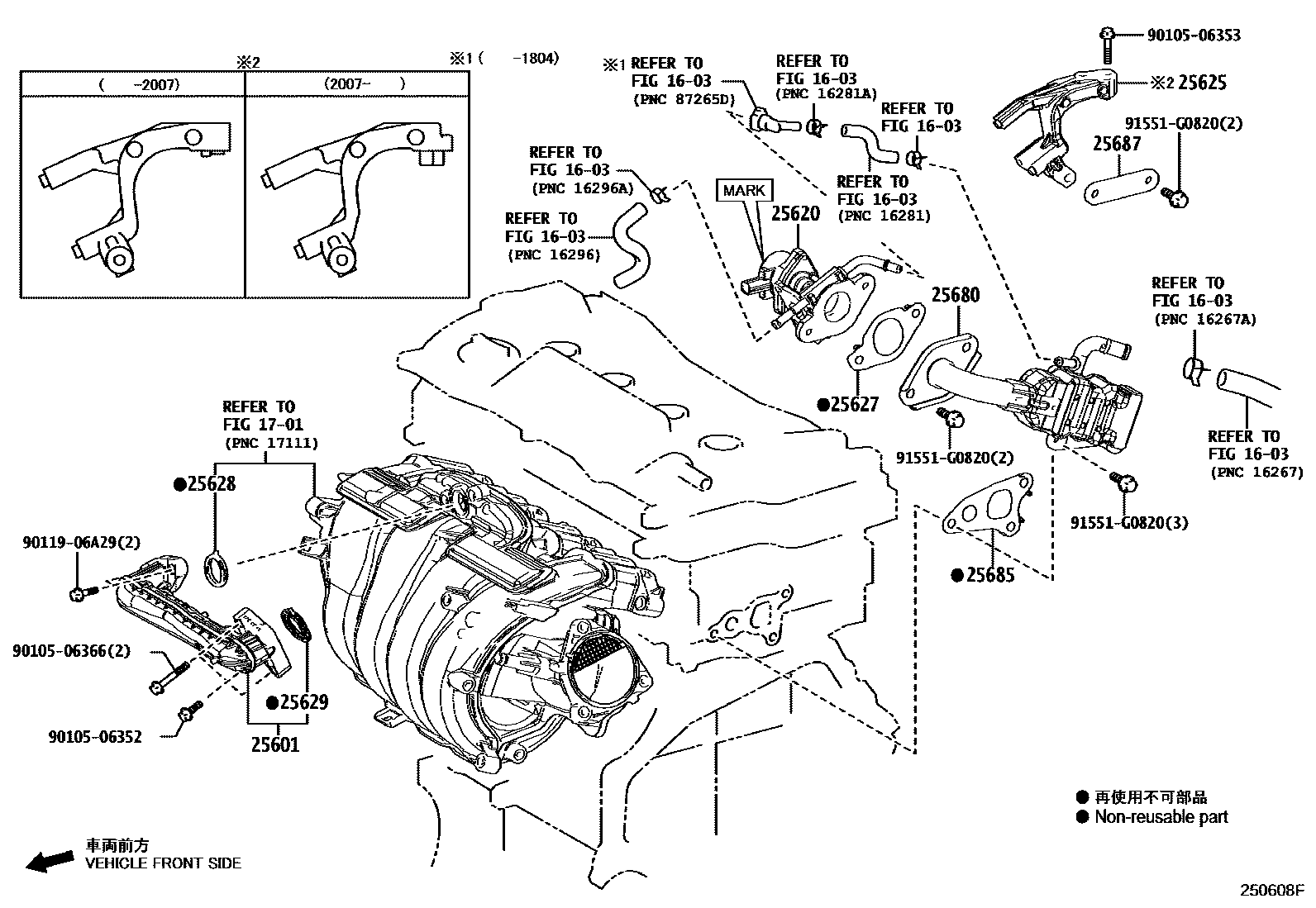

Parts diagram
1603
1701
25601PIPE SUB-ASSY, EGR, NO.1
main25601-25010i201709-201710
sub25601-25011
main25601-25011i201711-202008
main25601-25030i202008-202312
main25601-F2020i202104-202203
25620VALVE ASSY, EGR
main25620-24050i202008-202312
main25620-24060i202208
UKRAINE SPEC
main25620-24060i202208
EGYPT SPEC
main25620-25020i201709-201804
MARK=25620 25020
sub25620-25040
sub16281-25021
sub96138-41501
main25620-25040i201804-202008
MARK=25620 25040
main25620-36050i201804-202104
main25620-F2020i202104-202203
25625BRACKET, EGR VALVE
main25625-0V010i201804-202104
NO.1:REFER ILLUST.
main25625-0V020i201804-202104
NO.2:REFER ILLUST.
main25625-25010i201709-202007
main25625-25030i202007-202008
25627GASKET, EGR VALVE
main25627-0V010i201804-202104
main25627-24010i202008-202312
main25627-25010i201709-202008
main25627-F2040i202104-202203
25628GASKET, EGR INLET
main25628-25010i201709-202312
main25628-28010i201804-202104
main25628-F2040i202104-202203
25629GASKET, EGR VALVE ADAPTER
main25629-25010i201709-202312
25680COOLER ASSY, EGR
main25680-0V010i201804-202104
main25680-24010i202104-202203
main25680-25010i201709-202008
main25680-25030i201709-202008
main25680-25060i202008-202312
main25680-25070i202208
UKRAINE SPEC
main25680-25070i202208
EGYPT SPEC
main25680-25080i202208
UKRAINE SPEC
25685GASKET, EGR COOLER, NO.1
main25685-0V010i201804-202104
main25685-25010i201709-201710
sub25685-25011
main25685-25011i201710-202312
25687BRACKET, EGR COOLER, NO.1
main25687-25010i201709-202008
9010506352
main90105-06352
9010506353
main90105-06353
9010506366
main90105-06366
9011906A29
main90119-06A29
91551G0820
main91551-G0820

16 parts on this diagram · 5 diagrams in section
