ALTERNATOR

0001 112V 100A,130A 0002 112V 100A, 130A, 150A 0003 112V 100A, 130A, 150A 0004 112V 100A 0005 112V 130A,150A

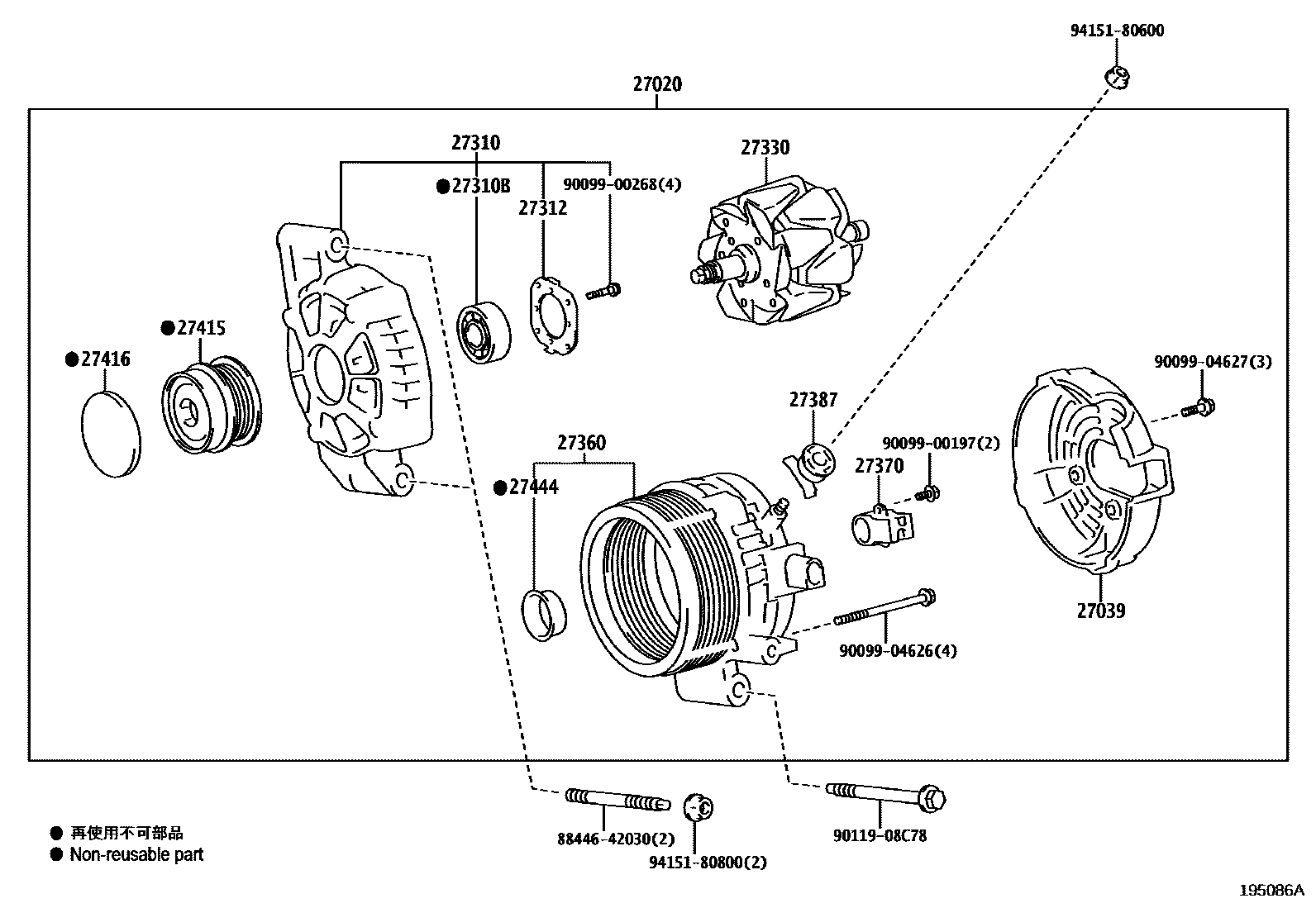

27020ALTERNATOR ASSY

main27060-0P430i2GRFKS..GSV70..RUS201804-202203

12V 150A

main27060-0V200i6ARFSE..ASV71201804-202104

12V 100A

main27060-0V360i2ARFE..ASV70..RUS201804-202104

12V 150A

main27060-25010iA25AFKS..AXVA70201709-202101

12V 100A

main27060-25030iA25AFKS..AXVA70..JPP..RUS202211

12V 130A

main27060-31360i2GRFKS..GSV70..EUR201709-202401

12V 100A

main27060-31370i2GRFKS..GSV70..EUR202401-202402

12V 130A

main27060-36140i2ARFE..ASV70..EUR201709-202101

12V 100A

main27060-F2060iM20AFKS..MXVA71202104-202203

12V 130A

main27060-F2070iA25AFKS..AXVA70..RUS202104-202203

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-0Y150iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71..RUS201804-202203

main27039-31650i2GRFKS..GSV70..EUR201907-202101

main27039-37220i2GRFKS..GSV70..EUR201709-202101

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P480i2GRFKS..GSV70..RUS201804-202203

main27310-0V180i6ARFSE..ASV71201804-202104

main27310-0V330i2ARFE..ASV70..RUS201804-202104

main27310-24130iA25AFKS..AXVA70..JPP..RUS202211

main27310-24150iA25AFKS..AXVA70201801-202101

main27310-25020iA25AFKS..AXVA70201709-201801

main27310-31590i2GRFKS..GSV70..EUR201709-202401

main27310-31600i2GRFKS..GSV70..EUR202401-202402

main27310-36160i2ARFE..ASV70..EUR201709-202101

main27310-F2050iA25AFKS,M20AFKS..AXVA70,MXVA71..RUS202104-202203

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2ARFE,6ARFSE,2GRFKS..ASV7#,GSV70..RUS201804-202203

main90099-10223iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR201709-202101

27312PLATE, RETAINER

main27312-0T300i2ARFE,6ARFSE,2GRFKS..ASV7#,GSV70..RUS201804-202203

main27312-72100iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR201709-202101

27330ROTOR ASSY, ALTERNATOR

main27330-0T350iM20AFKS..MXVA71202104-202203

main27330-0V330i2ARFE,2GRFKS..ASV70,GSV70..RUS201804-202203

main27330-0Y150i6ARFSE..ASV71201804-202104

main27330-37220iA25AFKS..AXVA70..JPP..RUS202211-202402

main27330-47330i2GRFKS..GSV70..EUR201709-202401

27360COIL ASSY, ALTERNATOR

main27360-0P480i2GRFKS..GSV70..RUS201804-202203

main27360-0V190i6ARFSE..ASV71201804-202104

main27360-0V330i2ARFE..ASV70..RUS201804-202104

main27360-24130iA25AFKS..AXVA70..JPP..RUS202211

main27360-24150iA25AFKS..AXVA70201801-202101

main27360-25020iA25AFKS..AXVA70201709-201801

sub27360-24150

main27360-31590i2GRFKS..GSV70..EUR201709-201907

sub27360-31650

main27360-31650i2GRFKS..GSV70..EUR201907-202401

main27360-31660i2GRFKS..GSV70..EUR202401-202402

main27360-36220i2ARFE..ASV70..EUR201709-202101

main27360-F2050iM20AFKS..MXVA71202104-202203

main27360-F2060iA25AFKS..AXVA70..RUS202104-202203

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0Y150iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71..RUS201804-202203

sub27370-31220

main27370-31220iA25AFKS..AXVA70..JPP201709-202101

main27370-31650i2GRFKS..GSV70..EUR201907-202101

27387INSULATOR, TERMINAL

main27387-0Y150i2ARFE,2GRFKS..ASV70,GSV70..RUS201804-202203

main27387-20130iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR201709-202101

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRFKS..GSV70..RUS201709-202203

main27415-0W021i2ARFE..ASV70..RUS201709-202104

main27415-0W190iA25AFKS,M20AFKS..AXVA70,MXVA71..RUS202104-202203

main27415-36020i6ARFSE..ASV71201804-202104

main27415-F0010iA25AFKS..AXVA70201709-202101

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ARFE,2GRFKS..ASV70,GSV70..RUS201709-202203

27444PACKING, ALTERNATOR BEARING COVER

main27444-0T300i2ARFE,6ARFSE,2GRFKS..ASV7#,GSV70..RUS201804-202203

main27444-21190iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR201709-202101

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 5 diagrams in section
