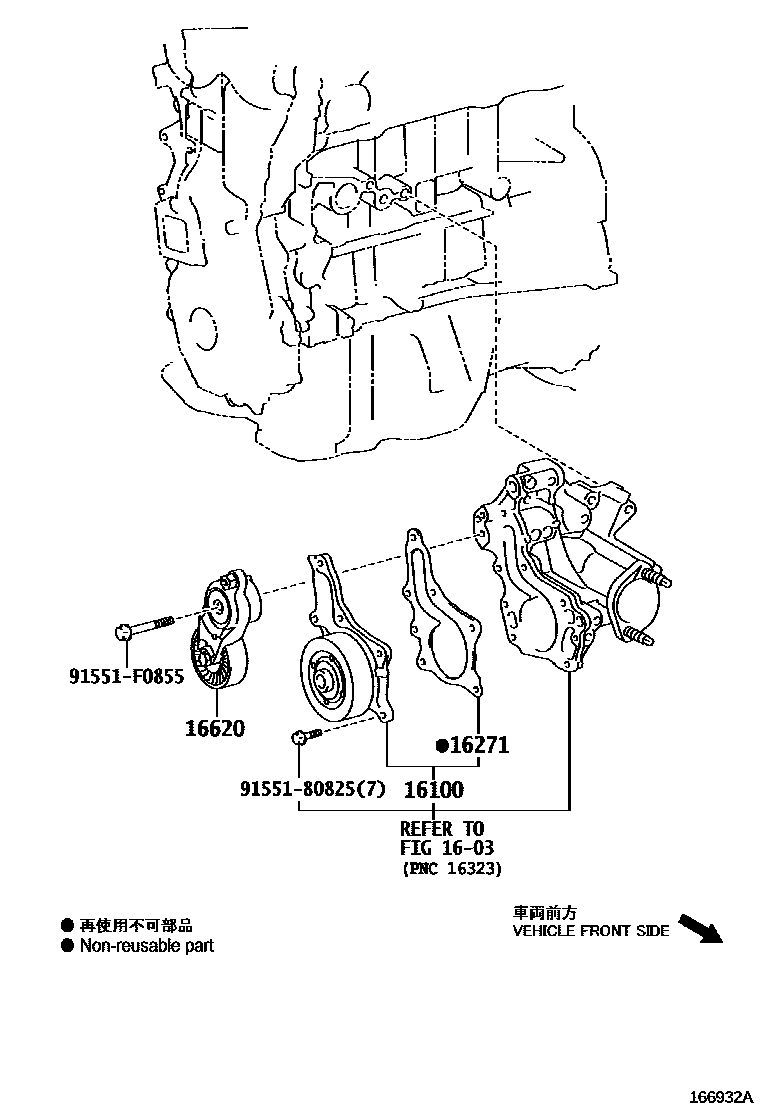

WATER PUMP

0001 1*524 0002 1*347 0003 1 0004 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09600i2ARFE..ASV70..RUS201804-202104

*347

sub16100-09601

main16100-09700i6ARFSE..ASV71201804-202104

main16100-39515i2ARFE..ASV70..EUR¥11,800201709-202103

*524

sub16100-39516¥11,800

main16100-39615i2GRFKS..GSV70¥9,500201709-202004

sub16100-39616¥9,500

main16100-39616i2GRFKS..GSV70..EUR¥9,500202004-202203

16271GASKET, WATER PUMP

main16271-0V010i6ARFSE..ASV71¥670201804-202104

main16271-31050i2GRFKS..GSV70..EUR¥1,740201709-202203

main16271-36010i2ARFE..ASV70..RUS¥610201804-202104

*347

main16271-36010i2ARFE..ASV70..EUR¥610201709-202103

*524

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V042i2ARFE..ASV70..RUS201804-202104

*347T/P A:REF.ILLUST

main16620-0V051i2ARFE..ASV70..RUS¥11,200201804-202104

*347T/P B:REF.ILLUST

main16620-31090i2GRFKS..GSV70..EUR¥15,200201709-202203

main16620-36012i2ARFE..ASV70¥13,400201709-201712

*524

sub16620-36013¥10,100

main16620-36013i2ARFE..ASV70..RUS¥10,100201804-202104

*347

main16620-36013i2ARFE..ASV70..EUR¥10,100201801-202104

*524

9155180825

main91551-80825¥80

91551F0855

main91551-F0855¥100

6 parts on this diagram · 4 diagrams in section
