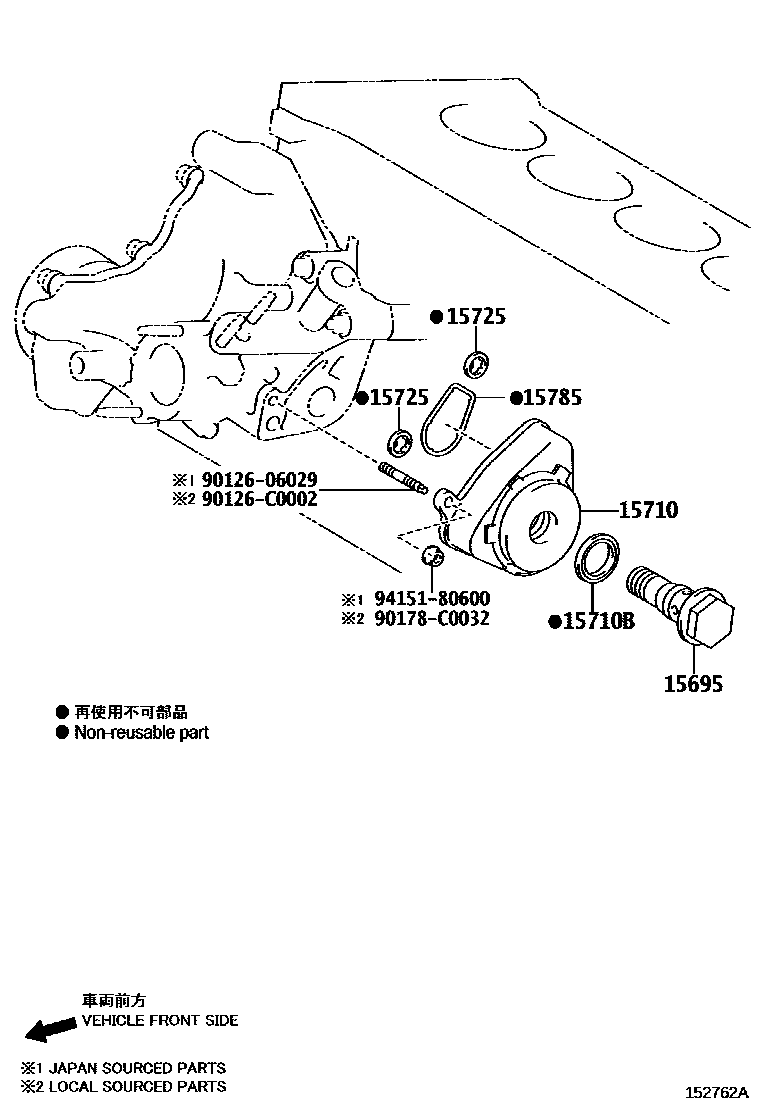

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15695BOLT, OIL COOLER UNION

main15695-62030i6ARFSE..ASV71201804-202104

15710COOLER ASSY, OIL

main15710-25010iA25AFXS..AXVH71..RHD..N201910-202101

HONGKONG SPEC

main15710-36010i6ARFSE..ASV71201804-202104

main15710-F2020iM20AFKS..MXVA71202104-202203

15710BRING, O(FOR OIL COOLER)

main90210-22001i6ARFSE..ASV71201804-202104

15725GASKET, OIL COOLER COVER

main15725-36010×2i6ARFSE..ASV71201804-202104

15785GASKET, OIL COOLER

main15785-25010×2iA25AFXS..AXVH71..D201910-202101

HONGKONG SPEC

main15785-36010i6ARFSE..ASV71201804-202104

9012606029

main90126-06029

90126C0002

main90126-C0002

90178C0032

main90178-C0032

9415180600

main94151-80600

9 parts on this diagram · 3 diagrams in section
