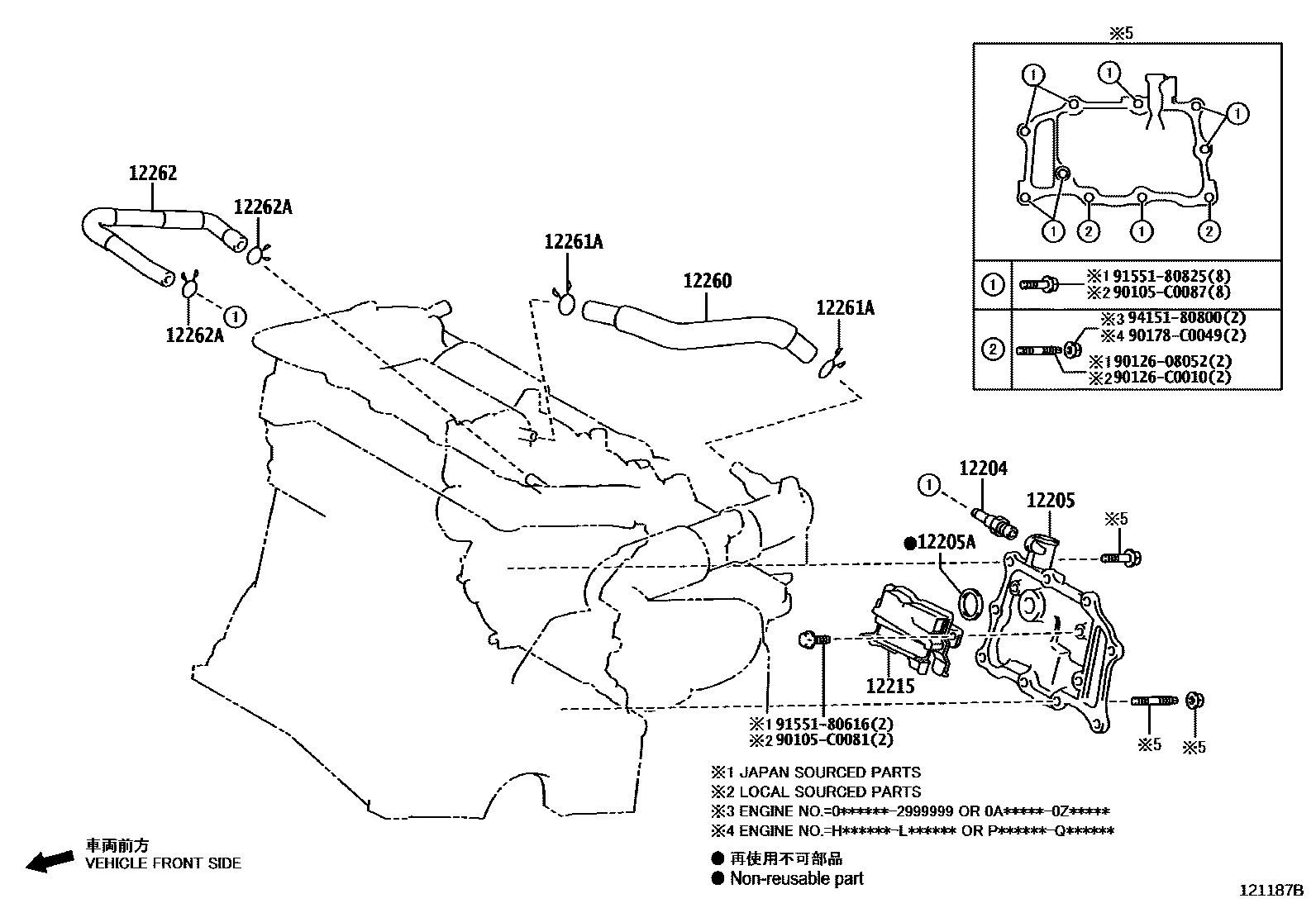

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
*347
*524
12205CASE SUB-ASSY, VENTILATION
(L),*347
*524
(J),*347
12205ARING, O(FOR VENTILATION CASE)
*347
*524
12215SEPARATOR, CASE
*524
*347
12260HOSE ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.2
12262HOSE, VENTILATION, NO.2
*347
*524
12262ACLIP(FOR VENTILATION HOSE NO.2)
*347
*524
90105C0081
main90105-C0081
90105C0087
main90105-C0087
9012608052
main90126-08052
90126C0010
main90126-C0010
90178C0049
main90178-C0049
9155180616
main91551-80616
9155180825
main91551-80825
9415180800
main94151-80800
17 parts on this diagram · 6 diagrams in section
