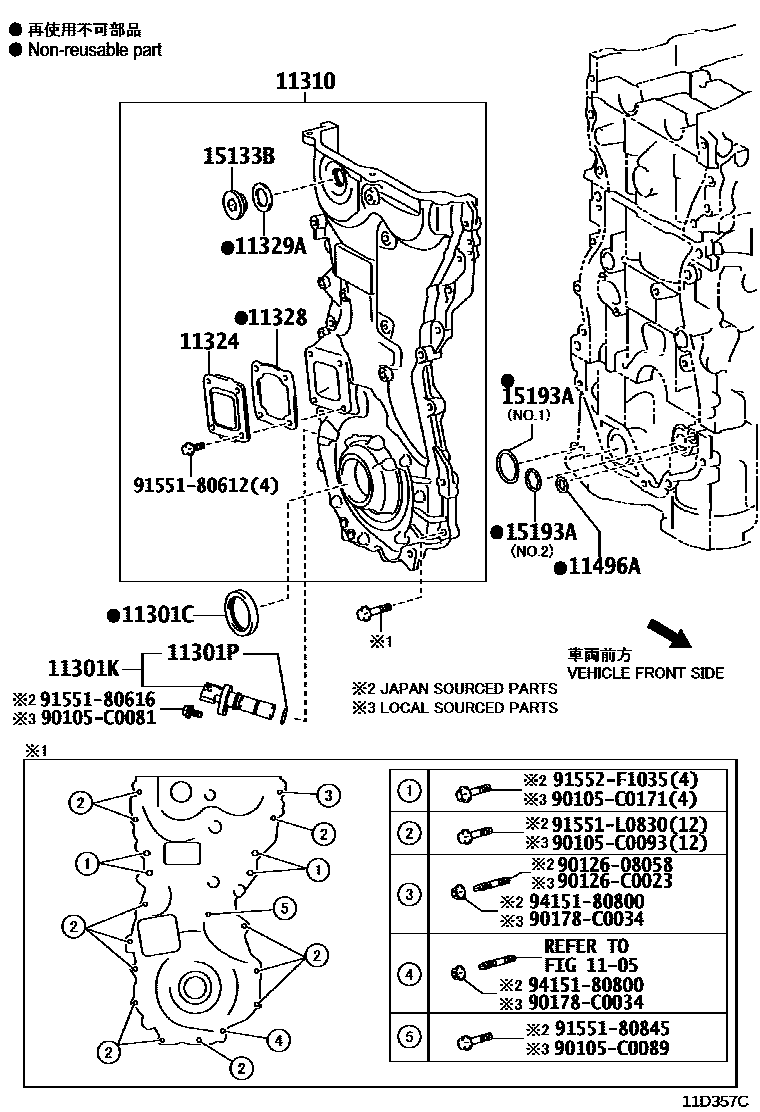

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
*524
*347
11301KSENSOR, CRANK POSITION
*524
*347
11301PO RING, CRANK POSITION SENSOR
*524
*347
11310COVER ASSY, TIMING CHAIN
*347
*524
11324PLATE, TIMING CHAIN COVER
*347
*524
11328GASKET, TIMING GEAR OR CHAIN COVER
*347
*524
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
*347
*524
11496AGASKET, OIL HOLE COVER
*347
*524
15133BPLUG, OIL PUMP RELIEF VALVE
*524
*347
15193AGASKET, OIL PUMP
*347,NO.1:REF.ILLUST
NO.1:REFER ILLUST.
*524,NO.1:REF.ILLUST
*347,NO.2:REF.ILLUST
NO.2:REFER ILLUST.
*524,NO.2:REF.ILLUST
90105C0081
main90105-C0081
90105C0089
main90105-C0089
90105C0093
main90105-C0093
90105C0171
main90105-C0171
9012608058
90126C0023
main90126-C0023
90178C0034
main90178-C0034
9155180612
9155180616
9155180845
91551L0830
91552F1035
9415180800
24 parts on this diagram · 6 diagrams in section
