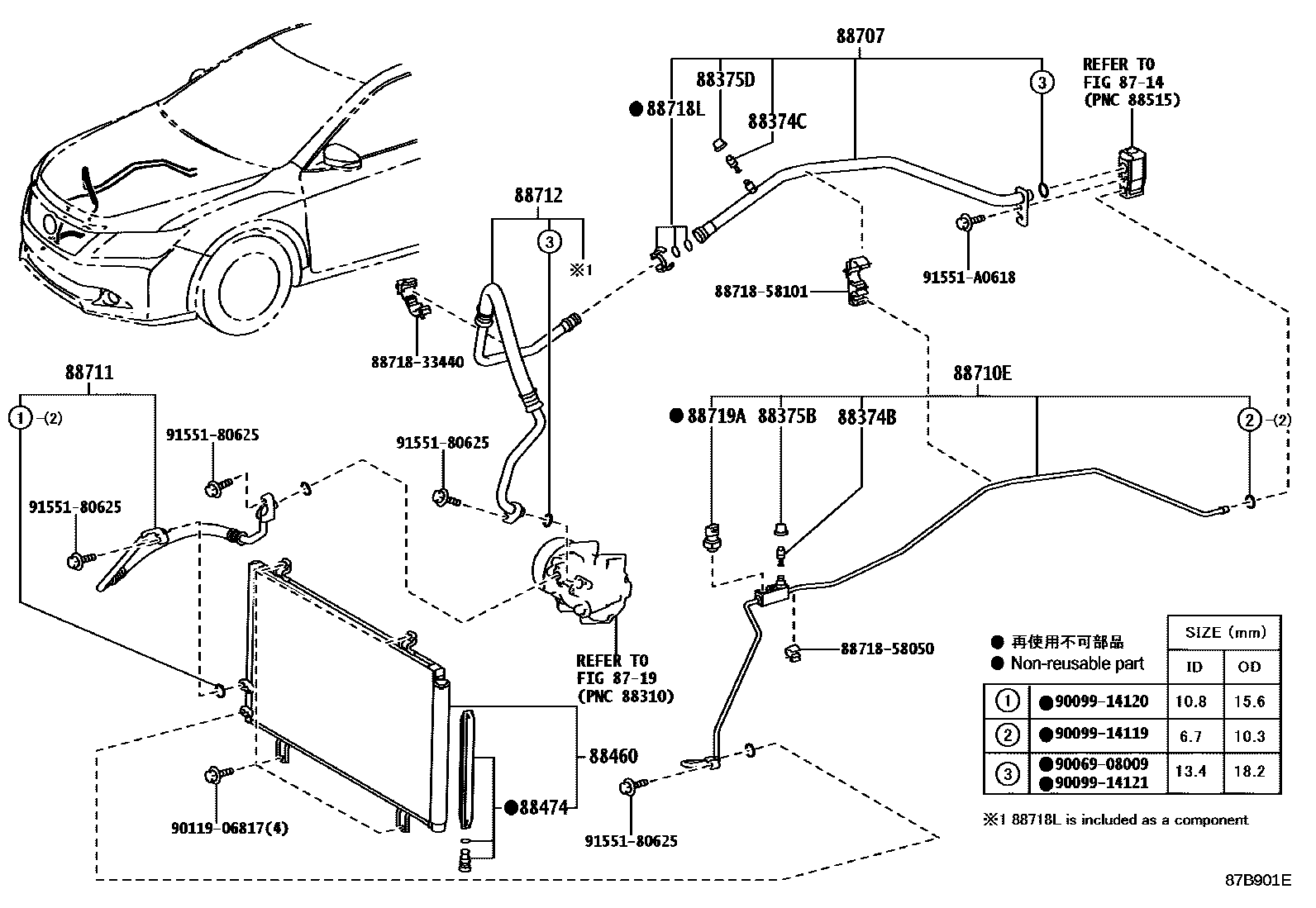

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iASV50,AVV50,GSV50..JPP201108-201704

88374CVALVE, SERVICE, NO.2

main88374-30010iASV50,AVV50,GSV50..JPP201108-201704

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iASV5#,GSV50..RUP201108-201704

88375DCAP, SERVICE VALVE, NO.2

main88375-02070iASV50..RUP¥440201306-201602

sub88375-0E030

main88375-0E030iASV5#..RUP201602

main88375-30290iASV50,AVV50,GSV50..JPP201108-201704

88460CONDENSER ASSY, COOLER

main88460-33130iAVV50¥46,000201108-201704

main88460-33140iASV5#,GSV50201108-201803

88474DRYER, COOLER

main88474-17010iASV50,GSV50..JPP201108-201704

main88474-47020iAVV50¥0201108-201704

88707PIPE SUB-ASSY, SUCTION

main88707-06130iASV5#..RUP201306-201411

main88707-33040iGSV50..RUP201108-201704

main88707-33050iASV50..JPP201108-201702

main88707-33060iAVV50..RHD¥12,000201108-201704

main88707-33070iAVV50..LHD201108-201704

main88707-33120iACV51201208-201411

main88707-33230iASV50..JPP201702-201704

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-06470iACV51201208-201411

main88710-33360iGSV50..JPP201108-201704

main88710-33370iASV50..JPP201108-201702

sub88710-33610

main88710-33380iAVV50..RHD¥20,600201108-201704

main88710-33390iAVV50..LHD201108-201704

main88710-33510iGSV50..RUP201503

main88710-33520iASV5#..RUP201503

main88710-33610iASV50..JPP201702-201704

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06550iACV51201208-201411

main88711-33260iGSV50..JPP201108-201704

main88711-33270iASV50..RUP201108-201704

main88711-33280iAVV50¥11,900201108-201704

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-06270iASV5#..RUP201306-201411

main88712-06350iACV51201208-201411

main88712-33290iGSV50..RUP201108-201704

main88712-33300iASV50..RUP201108-201704

main88712-33310iAVV50¥14,000201108-201704

88718LCLAMP, PIPING

main88718-52280iACV51,ASV50,AVV50,GSV50¥0201108-201704

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASV50,AVV50,GSV50..JPP¥0201108-201704

8871833440PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33440

8871858050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58050

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

9006908009

main90069-08009¥350

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9011906817

main90119-06817¥70

9155180625

main91551-80625¥60

91551A0618

main91551-A0618¥60

24 parts on this diagram · 6 diagrams in section
