MIRROR
8106
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE M.M.,8W7
87915BCOVER, OUTER MIRROR, LOWER RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
TMMR,2GR,SFX,N5
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE M.M.,8W7
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024

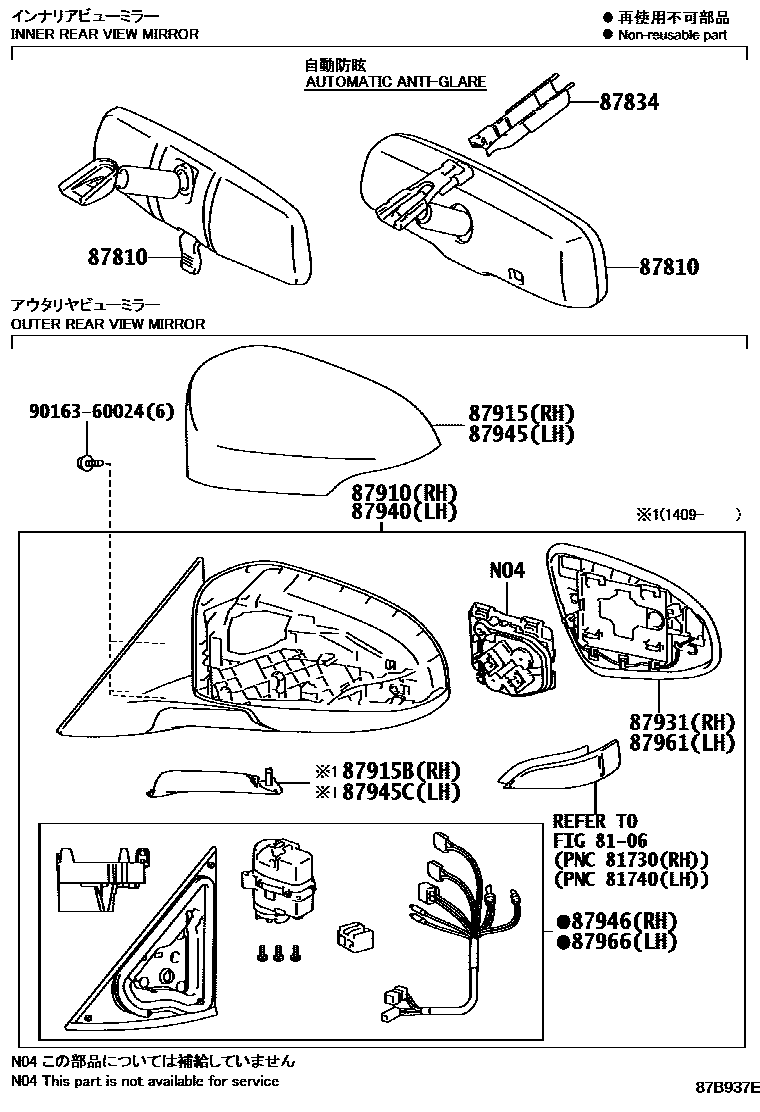

14 parts on this diagram · 2 diagrams in section
