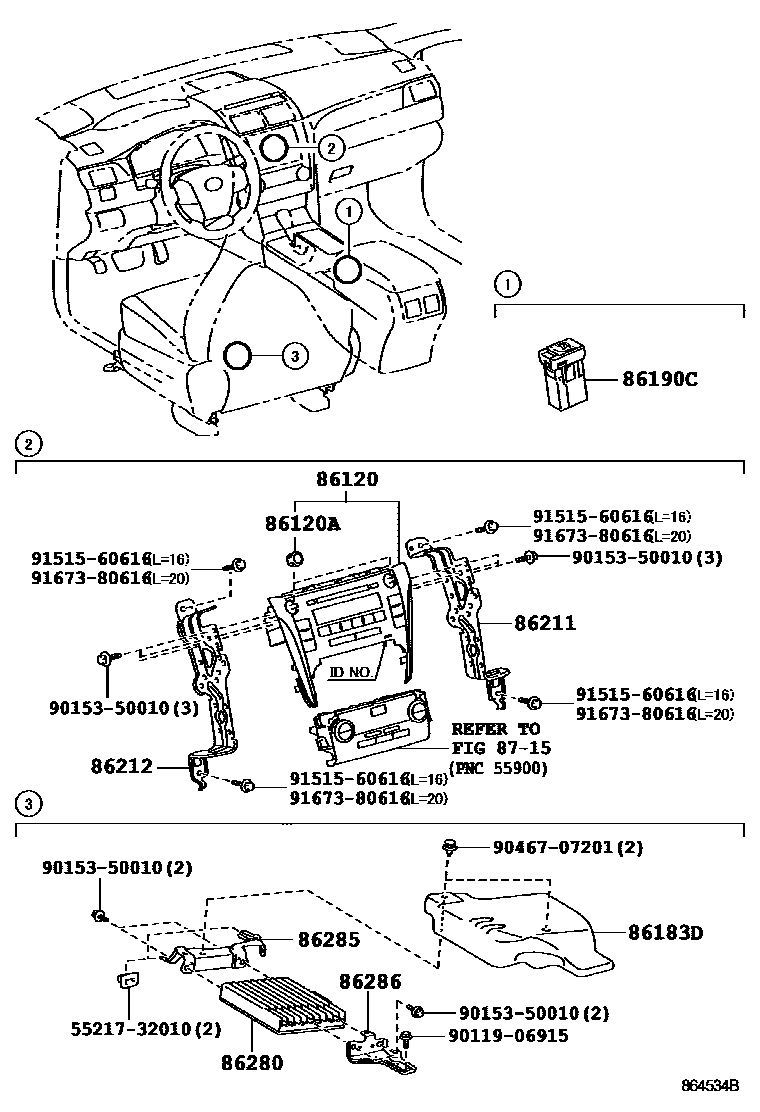

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PIONEER,ID=P10119,AUDIO-CD 6SPEAKER BLUETOOTH AM=10KHZ STEP
sub86120-33G21
PIONEER,ID=P10119,AUDIO-CD 6SPEAKER BLUETOOTH AM=10KHZ STEP
sub86120-33G22
PIONEER,ID=P10118
PIONEER,ID=P10178
PIONEER,ID=P10724
86120AKNOB, RADIO RECEIVER SWITCH
86183DCOVER, AUDIO AMPLIFIER
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,BLACK
sub86183-33050
86190CADAPTER ASSY, STEREO JACK, NO.1
AUDIO-*DA CD 6SPEAKER *BT AM=9KHZ STEP
HONG KONG SPEC
86211BRACKET, RADIO, NO.1
WITHOUT(REAR DOOR SUN SHADE)
AUDIO-RADIO LESS 6SPEAKER
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&TMR,2AR,SFX,R4,SPL,EDIT
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&TMR 2AR SFX R4 SPL EDIT2
86212BRACKET, RADIO, NO.2
WITHOUT(REAR DOOR SUN SHADE)
AUDIO-RADIO LESS 6SPEAKER
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&TMR,2AR,SFX,R4,SPL,EDIT
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&TMR 2AR SFX R4 SPL EDIT2
86280AMPLIFIER ASSY, STEREO COMPONENT
*SES&*AFLS&*NS&*JA&HID
*SES&*NS&*JA&HID
WITHOUT(REAR DOOR SUN SHADE)
WITHOUT(REAR DOOR SUN SHADE)
*SES&*AFLS&*NS&*JA&HID
*SES&*NS&*JA&HID
TSUTSUMI,SFX,N4
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
TMMR,2GR,SFX,N5
86285BRACKET, AMPLIFIER, NO.1
*SES&*AFLS&*NS&*JA&HID
*SES&*NS&*JA&HID
WITHOUT(REAR DOOR SUN SHADE)
TSUTSUMI,SFX,N4
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
TMMR,2GR,SFX,N5
86286BRACKET, AMPLIFIER, NO.2
*SES&*AFLS&*NS&*JA&HID
*SES&*NS&*JA&HID
WITHOUT(REAR DOOR SUN SHADE)
TSUTSUMI,SFX,N4
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
TMMR,2GR,SFX,N5
8715
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9011906915
main90119-06915
9015350010
main90153-50010
9046707201
main90467-07201
9151560616
main91515-60616
9167380616
main91673-80616
16 parts on this diagram · 6 diagrams in section
