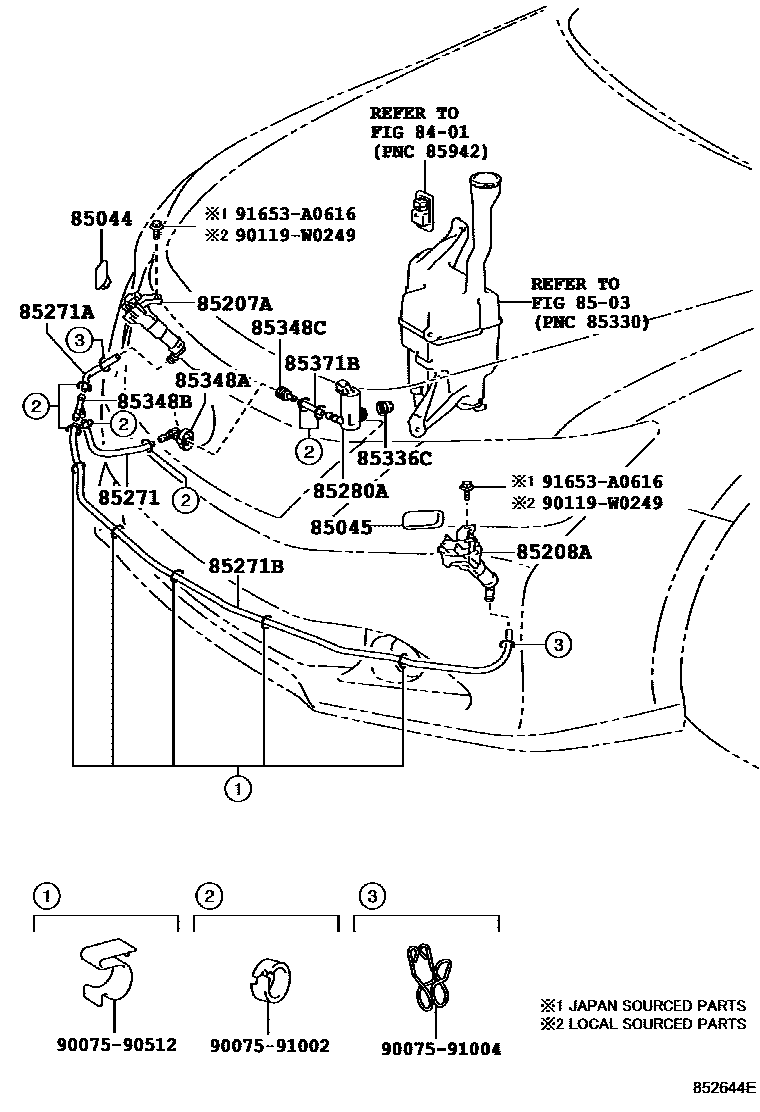

HEADLAMP CLEANER
8401
8503
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),WHITE PEARL CS.,070
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),SILVER ME.,1F7
SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),GRAY ME.,1G3
GRAY ME.,1G3
DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),WHITE PEARL CS.,070
WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),SILVER ME.,1F7
GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W7
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),WHITE PEARL CS.,070
WHITE PEARL CS.,070
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),SILVER ME.,1F7
SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),GRAY ME.,1G3
GRAY ME.,1G3
DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),ATTITUDE BLACK MC.,218
RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),RED M.M.,3R3
BEIGE ME.,4T8
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),BEIGE ME.,4T8
OLIVE M.M.,6T7
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),DK.BLUE MC.,8S6
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),WHITE PEARL CS.,070
WHITE PEARL CS.,070
SILVER ME.,1F7
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),SILVER ME.,1F7
GRAY M.M.,1H1
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),GRAY M.M.,1H1
DK. STEEL MC.,1H2
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),ATTITUDE BLACK MC.,218
RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),RED M.M.,3R3
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TRUE BLUE M.M.,8W1
TRUE BLUE M.M.,8W1
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),DK.BLUE M.M.,8W7
DK.BLUE M.M.,8W7
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85271HOSE, HEADLAMP CLEANER, NO.1
L=220
L=160
L=180,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
L=180
85271AHOSE, HEADLAMP CLEANER, NO.2
L=35
L=120
L=120,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
L=100
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1550
L=1600
L=1800
L=1800,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85336CPACKING, HEADLAMP CLEANER MOTOR
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
L=35
L=35,WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
L=35,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
9007590512
main90075-90512
9007591002
main90075-91002
9007591004
main90075-91004
90119W0249
main90119-W0249
91653A0616
main91653-A0616
20 parts on this diagram · 2 diagrams in section
