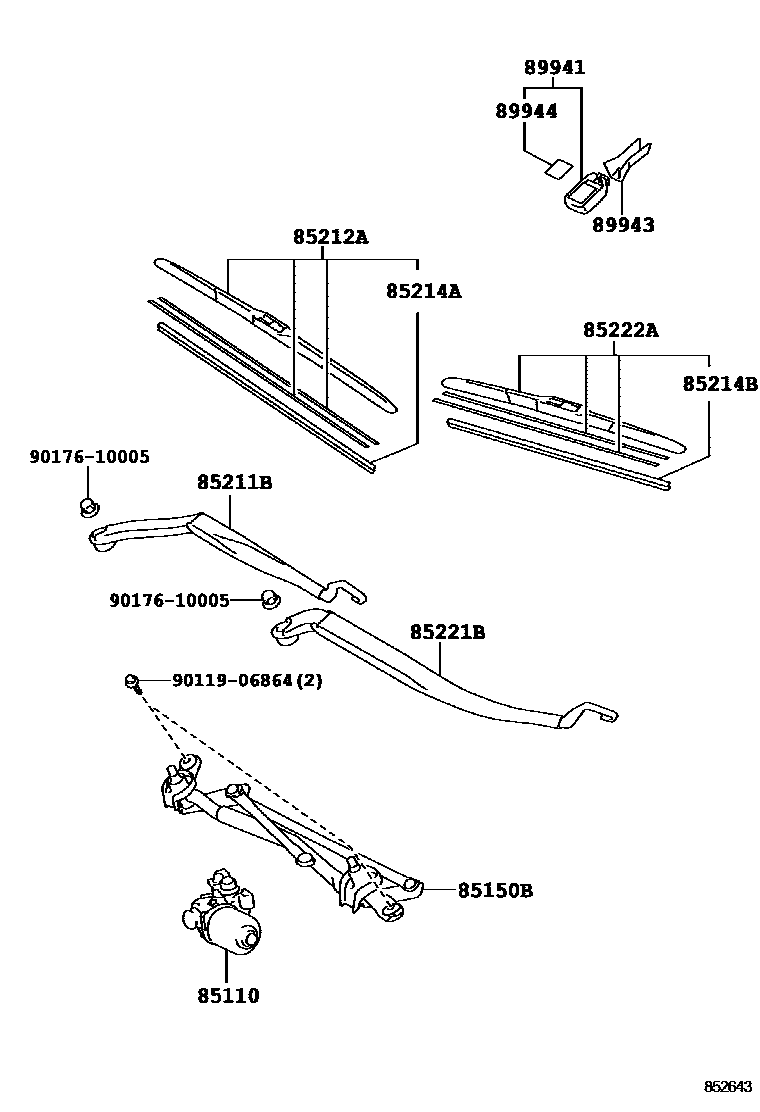

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-06180iACV51,ASV50,GSV50..RUP201311-201411

main85110-06210iASV5#,GSV50..RUP201411-201601

main85110-33350iASV50,AVV50..RHD201108-201409

main85110-33360iACV51,ASV50,GSV50..RUP201108-201311

main85110-33410iASV50,AVV50..RHD201409-201704

main85110-33420iASV50,AVV50,GSV50..JPP..LHD201409-201704

85150BLINK ASSY, WIPER

main85150-06180iACV51,ASV50,GSV50..RUP201311-201411

main85150-33260iASV50,AVV50..RHD201409-201704

main85150-33270iASV50,AVV50,GSV50..JPP..LHD201409-201704

85211BARM, FRONT WIPER, RH

main85211-06170iACV51,ASV50,GSV50..RUP201311-201411

main85211-33330iASV50,AVV50..RHD201108-201409

main85211-33340iASV50,AVV50,GSV50..JPP..LHD201108-201409

85212ABLADE, FR WIPER, RH

main85212-06170iACV51,ASV50,GSV50..RUP201311-201411

main85212-33250iASV50,AVV50..RHD201409-201704

main85212-33260iASV50,AVV50,GSV50..JPP..LHD201108-201409

85214ARUBBER, WIPER, RH

main85214-06170iASV5#,GSV50..RUP201411

main85214-33180iASV50,AVV50,GSV50..JPP..LHD201108-201409

main85214-52110iASV50,AVV50..RHD201409-201704

main85214-68020iASV50,AVV50..RHD201108-201212

85214BRUBBER, WIPER, LH

main85214-06180iASV5#,GSV50..RUP201411

main85214-33180iASV50,AVV50..RHD201108-201409

main85214-52110iASV50,AVV50,GSV50..JPP..LHD201409-201704

main85214-68020iACV51,ASV50,AVV50,GSV50..LHD201108-201212

85221BARM, FRONT WIPER, LH

main85221-06170iASV5#,GSV50..RUP201411

main85221-33320iASV50,AVV50..RHD201409-201704

main85221-33340iASV50,AVV50,GSV50..JPP..LHD201108-201409

85222ABLADE, FR WIPER, LH

main85222-06170iASV5#,GSV50..RUP201411

main85222-33260iASV50,AVV50..RHD201409-201704

main85222-33270iASV50,AVV50,GSV50..JPP..LHD201108-201409

89941SENSOR, RAIN

main89941-52010iASV50,AVV50,GSV50..JPP201108-201409

89943COVER, RAIN SENSOR

main89943-42010iASV50,AVV50,GSV50..JPP201108-201409

89944TAPE, RAIN SENSOR

main89944-42010iASV50,AVV50,GSV50..JPP201108-201409

9011906864

main90119-06864

9017610005

main90176-10005

13 parts on this diagram · 1 diagram in section
