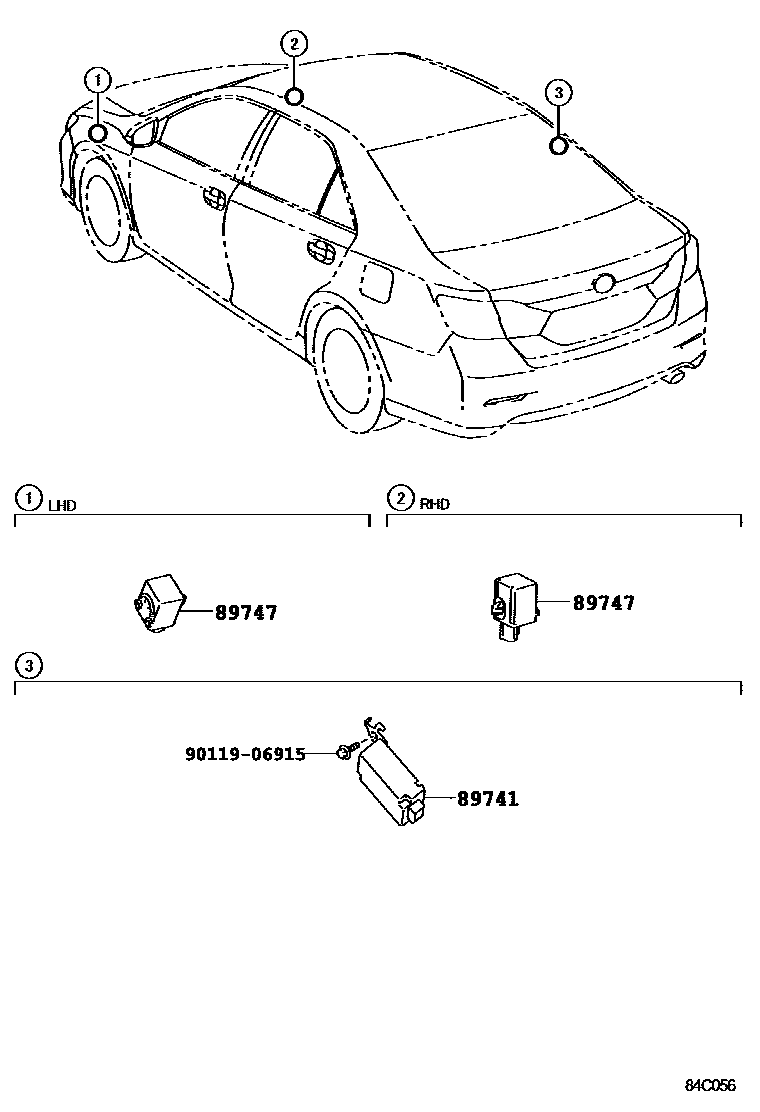

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0003 1W/(SMART ENTRY) 0005 1W/(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89740-33260iGSV50..RUP201108-201411

sub89740-33262

main89740-33261iASV5#,GSV50..RUP201409

sub89740-33262

main89740-33300iASV50..RHD201409-201704

BRAZIL SPEC

main89741-33500iASV50201108-201109

main89741-33501iASV50..JPP201110-201409

main89741-33590iASV50..JPP..LHD201409-201704

main89740-33320iASV50..LHD..EUR201108-201409

CHILE SPEC

main89741-33520iASV50..LHD..EUR201108-201409

CHILE SPEC

main89741-33540iASV50..LHD..EUR201108-201409

JORDAN/SYRIA SPEC

main89741-33580iASV50..LHD..EUR201409-201704

CHILE SPEC

main89741-33610iASV50..LHD..EUR201409-201704

JORDAN/SYRIA SPEC

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGSV50..RUP201108-201411

9011906915

main90119-06915

3 parts on this diagram · 3 diagrams in section
