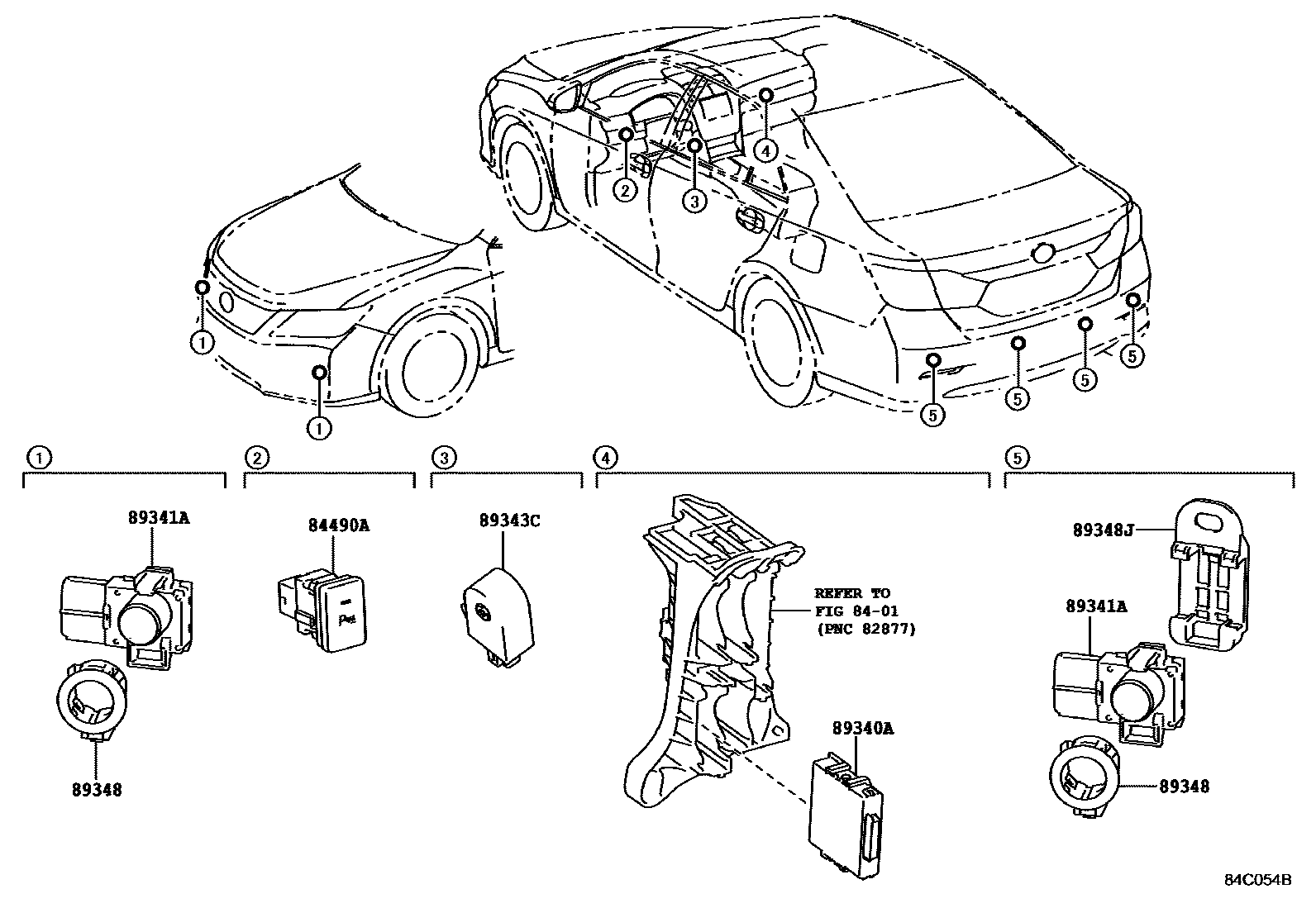

CLEARANCE & BACK SONAR

0001 1 0002 1

8401

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-06120iASV50,GSV50..RUP201411-201502

main84490-06121iASV5#,GSV50..RUP201503

main84490-33030iGSV50..JPP;ASV50..JPP..RUS;ASV50,AVV50..RHD201108-201409

sub84490-33031

main84490-33060iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201502

main84490-33061iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201503-201704

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-33110iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201704

BRAZIL SPEC

89341ASENSOR, ULTRASONIC, NO.1

main89341-33210-A0×6iASV5#,GSV50..RUS201409-201512

SUPER WHITE 2,040

main89341-33210-A1×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

WHITE PEARL CS.,070

main89341-33210-B0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

BRAZIL SPEC,SILVER ME.,1F7

main89341-33210-B2×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

BRAZIL SPEC,DK. STEEL MC.,1H2

main89341-33210-B7×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

BRAZIL SPEC,GRAY M.M.,1H1

main89341-33210-C0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

BRAZIL SPEC,ATTITUDE BLACK MC.,218

main89341-33210-D0×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201512

BRAZIL SPEC,RED M.M.,3R3

main89341-33210-J0×6iASV50..RHD;AVV50,GSV50;ASV50..JPP..RUS201409-201512

BRAZIL SPEC,TRUE BLUE M.M.,8W1

main89341-33210-J9×6iASV50..RHD;AVV50,GSV50;ASV50..JPP..RUS201409-201512

BRAZIL SPEC,DK.BLUE M.M.,8W7

main89341-33260-A0×6iACV51,ASV50,GSV50..RUS201108-201411

SUPER WHITE 2,040

main89341-33260-A1×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

WHITE PEARL CS.,070

main89341-33260-B0×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

SILVER ME.,1F7

main89341-33260-B1×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201601-201704

BRAZIL SPEC,GRAY M.M.,1H1

main89341-33260-B2×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

DK. STEEL MC.,1H2

main89341-33260-B3×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

GRAY ME.,1G3

main89341-33260-C0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201601-201803

ATTITUDE BLACK MC.,218

main89341-33260-D0×6iACV51;GSV50..JPP;ASV50..JPP..RUS;ASV50,AVV50..RHD201209-201411

RED M.M.,3R3

main89341-33260-E0×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

BEIGE ME.,4T8

main89341-33260-E1×6iASV5#,GSV50..RUP201612-201803

DK. BROWN M.M.,4U3

main89341-33260-G0×6iASV50..RHD;GSV50..EUR;ACV51,AVV50201108-201411

OLIVE M.M.,6T7

main89341-33260-J0×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201601-201704

BRAZIL SPEC,TRUE BLUE M.M.,8W1

main89341-33260-J1×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201601-201704

BRAZIL SPEC,DK.BLUE M.M.,8W7

main89341-33260-J2×6iASV50..RHD;GSV50..JPP;ACV51,AVV50201309-201411

DK.BLUE MC.,8S6

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-72010iGSV50..JPP;ASV50..JPP..RUS;ASV50,AVV50..RHD201108-201409

BRAZIL SPEC

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33100-A0×6iASV5#,GSV50..RUS201409-201512

SUPER WHITE 2,040

main89348-33100-A1×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

WHITE PEARL CS.,070

main89348-33100-B0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

SILVER ME.,1F7

main89348-33100-B2×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

DK. STEEL MC.,1H2

main89348-33100-C0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

ATTITUDE BLACK MC.,218

main89348-33100-D0×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201512

RED M.M.,3R3

main89348-33100-J0×6iASV50..RHD;AVV50,GSV50;ASV50..JPP..RUS201409-201512

TRUE BLUE M.M.,8W1

main89348-33100-P0×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201409-201512

GRAY M.M.,1H1

main89348-33100-R1×6iASV50..RHD;AVV50,GSV50;ASV50..JPP..RUS201409-201512

DK.BLUE M.M.,8W7

main89348-33200-A0×6iASV5#,GSV50..RUP201601-201803

SUPER WHITE 2,040

main89348-33200-A1×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201601-201803

WHITE PEARL CS.,070

main89348-33200-B0×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

SILVER ME.,1F7

main89348-33200-B1×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201601-201704

BRAZIL SPEC,GRAY M.M.,1H1

main89348-33200-B2×6iASV50..RUS;ASV50..RHD;ASV51,AVV50,GSV50201601-201803

DK. STEEL MC.,1H2

main89348-33200-B3×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

GRAY ME.,1G3

main89348-33200-C0×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

ATTITUDE BLACK MC.,218

main89348-33200-D0×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201601-201704

BRAZIL SPEC,RED M.M.,3R3

main89348-33200-E0×6iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

BEIGE ME.,4T8

main89348-33200-E1×6iASV5#,GSV50..RUP201612-201803

DK. BROWN M.M.,4U3

main89348-33200-G0×6iASV50..RHD;GSV50..EUR;ACV51,AVV50201108-201411

OLIVE M.M.,6T7

main89348-33200-J0×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201601-201704

BRAZIL SPEC,TRUE BLUE M.M.,8W1

main89348-33200-J1×6iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201601-201704

BRAZIL SPEC,DK.BLUE M.M.,8W7

main89348-33200-J2×6iGSV50..JPP;ASV50..RHD;ACV51,AVV50;ASV50..JPP..RUS201309-201411

DK.BLUE MC.,8S6

89348JCLIP, ULTRASONIC SENSOR

main89348-33090×4iASV50..RUS;ACV51,GSV50;ASV50,AVV50..RHD201108-201411

7 parts on this diagram · 2 diagrams in section
