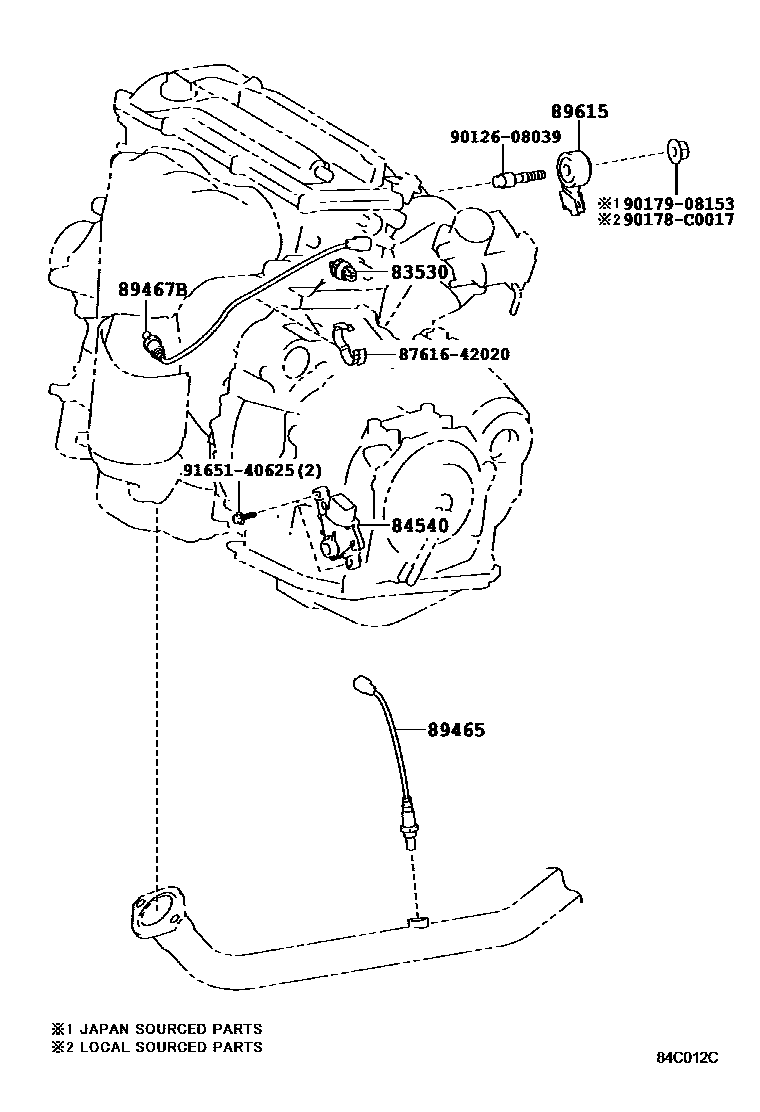

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0009 1ENGINE ROOM 1/2 0011 1ENGINE ROOM 1/2 0013 1ENGINE ROOM 2/2 0015 1ENGINE ROOM 2/2 0017 1COWL 0019 1COWL 0021 1COWL 0022 1COWL 0023 1INSTRUMENT PANEL 0025 1INSTRUMENT PANEL 0027 1INSTRUMENT PANEL 0028 1INSTRUMENT PANEL 0029 1STEERING 0031 1STEERING 0033 1STEERING 0034 1STEERING 0035 1SEAT 0037 1SEAT 0039 1DOOR,ROOF,FLOOR & LUGGAGE 0041 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASV50,GSV50201409-201602

DENSO

main83530-60020iASV50,GSV50..RUP201409

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV5#,GSV50201409-201803

main84540-48010iACV51201208-201411

89465SENSOR, OXYGEN

main89465-06250iGSV50..RUP201311-201411

LH

main89465-06290iASV50..RUP201311-201411

main89465-06350iGSV50..RUP201411

LH

main89465-07080iGSV50..RUP201311-201411

RH

main89465-33360iGSV50..RUP201108-201311

LH

main89465-33420iGSV50..RUP201108-201311

RH

main89465-33470iAVV50201409-201704

main89465-33480iASV50..RUS201108-201205

main89465-33560iASV50..RUP201409

main89465-33570iACV51201208-201411

89467BSENSOR, AIR FUEL RATIO

main89467-06070iACV51201311-201411

main89467-06130iGSV50..RUP201311-201408

LH, MARK=89467-06130

main89467-06140iGSV50..RUP201311-201411

RH

main89467-06170iASV50..RUP201306-201411

(L)

main89467-06220iASV51201503

main89467-0E130iGSV50..RUP201408-201411

LH, MARK=89467-0E130

main89467-33160iACV51201208-201311

main89467-33220iGSV50..RUP201108-201311

LH

main89467-33230iGSV50..RUP201108-201311

RH

main89467-48190iASV50..RUP201108-201306

main89467-48220iGSV50..JPP201409-201704

LH

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGSV50..JPP201108-201409

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

90178C0017

main90178-C0017

9017908153

main90179-08153

9165140625

main91651-40625

10 parts on this diagram · 26 diagrams in section
