HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125CORD, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
sub81130-33771
sub81130-33811
sub81130-33841
sub81130-33881
sub81145-33781
sub81145-33791
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
sub81145-33801
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
TSUTSUMI SFX R4
TSUTSUMI,SFX,N4
sub81145-33A01
W(*AFLS)
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
81144CCOVER, HEADLAMP SOCKET
TSUTSUMI SFX R4
*SES&*AFLS&HID
*SES&*AFLS&*NS&*JA&HID
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
TSUTSUMI,SFX,N4
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
81175UNIT ASSY, HEADLAMP, LH
sub81170-33771
sub81170-33811
sub81170-33841
sub81170-33881
sub81185-33781
sub81185-33791
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
sub81185-33801
TSUTSUMI,SFX,N4
TSUTSUMI SFX R4
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
sub81185-33A01
W(*AFLS)
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
W/O(*AFLS)
W(*AFLS)
TSUTSUMI,SFX,N4,W(*AFLS)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),W(*AFLS)
TSUTSUMI SFX R4,W(*AFLS)
85662MOTOR, HEADLAMP LEVELING, LH
W/O(*AFLS)
W(*AFLS)
TSUTSUMI,SFX,N4,W(*AFLS)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER),W(*AFLS)
TSUTSUMI SFX R4,W(*AFLS)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
90105W0157
main90105-W0157
9015950388
main90159-50388
9018905142
main90189-05142
9018905144
main90189-05144

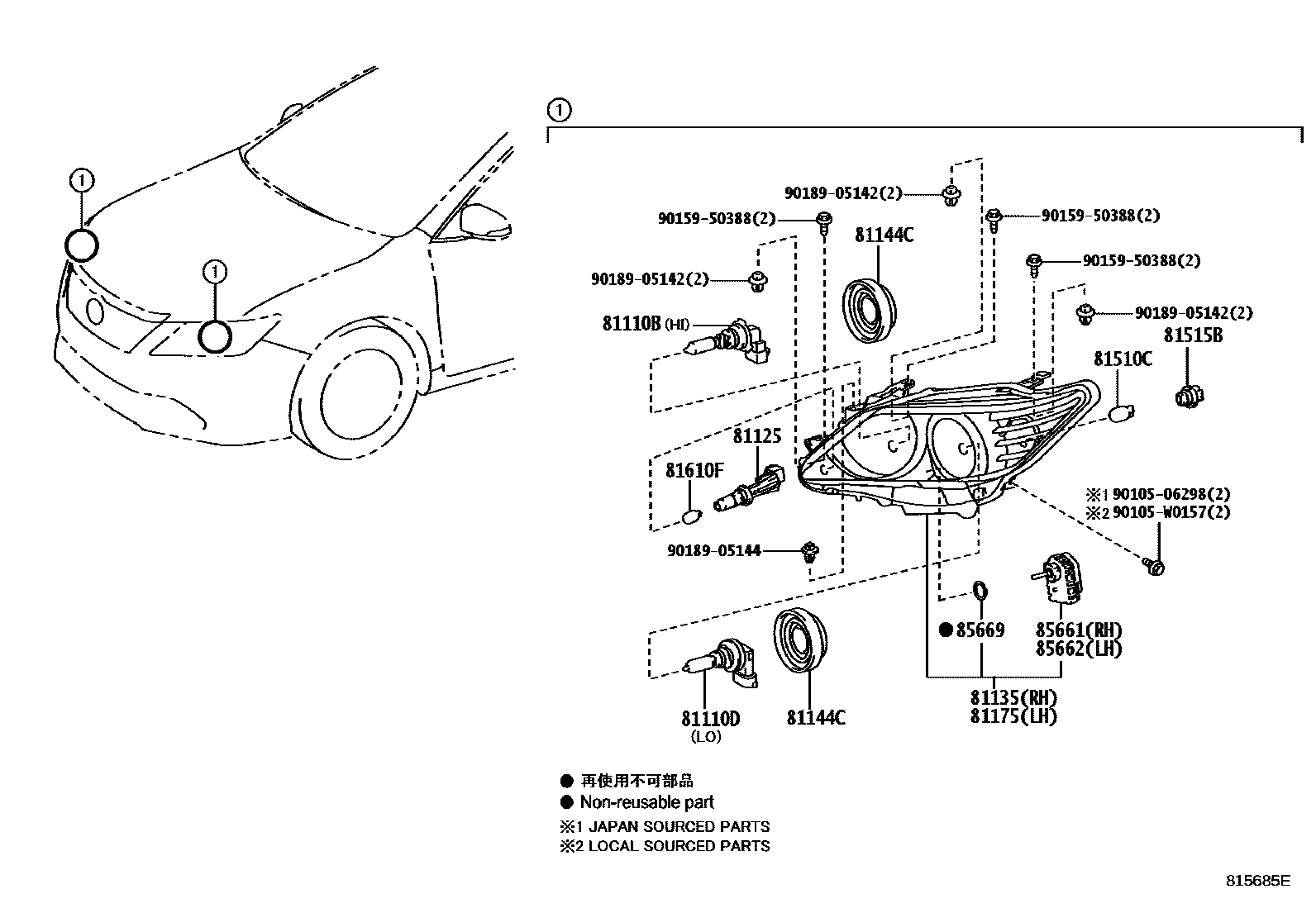

17 parts on this diagram · 7 diagrams in section
