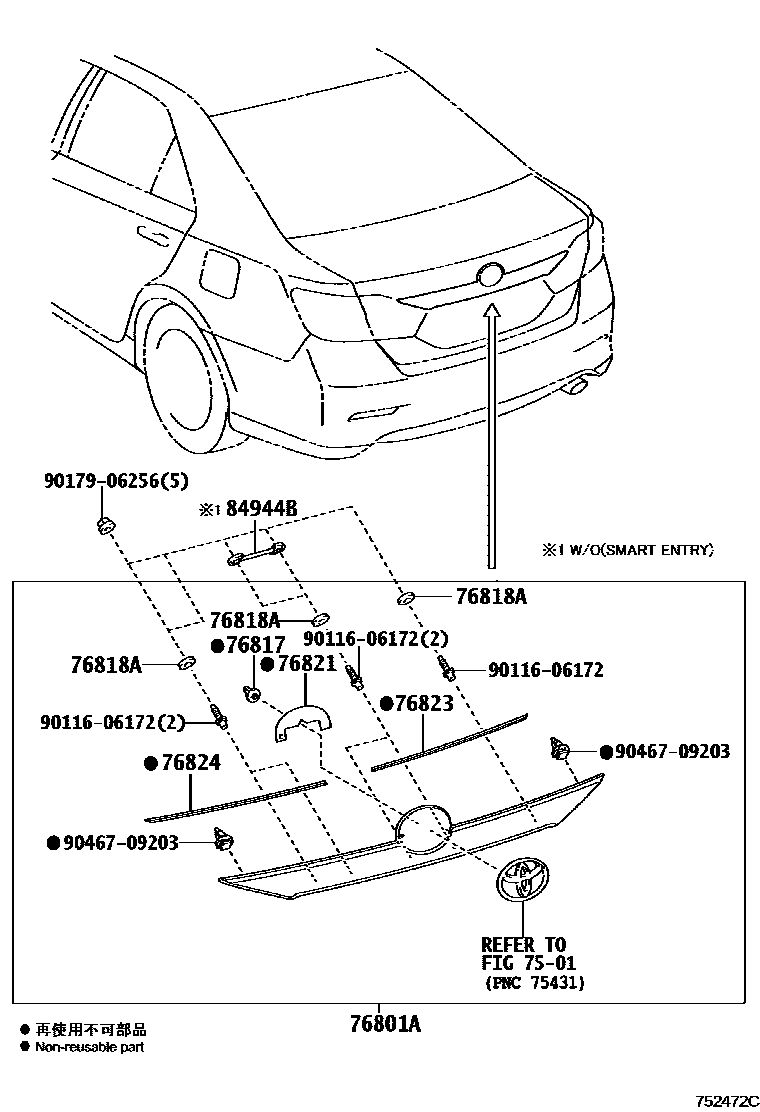

REAR MOULDING
7501
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
PLATED,*SES&*AFLS&*NS&*JA&HID
sub75403-33030
PLATED,*PSE(*DRP) & LEATHER PACKAGE&BACK MONITOR(REAR TELEVISION CAMERA)-WITH
sub75403-33030
PLATED,*SES&*AFLS&HID
sub75403-33030
76817CLIP, BACK DOOR OUTSIDE GARNISH
76818APAD, LUGGAGE GARNISH, NO.1
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH
TSUTSUMI,SFX,N4
*PSE(*DRP) & LEATHER PACKAGE
TSUTSUMI SFX R4
*SES&*AFLS&HID
*SES&*AFLS&*NS&*JA&HID
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
9011606172
9017906256
9046709203
11 parts on this diagram · 2 diagrams in section
