FRONT MOULDING

0001 1 0003 1 0004 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-33140iASV50,AVV50,GSV50..JPP201108-201704

75770MOULDING ASSY, HOOD, FRONT

main75770-33010iASV50,AVV50,GSV50..JPP201108-201305

PLATED

sub75770-33030

sub75796-33010

main75770-33011iASV50,AVV50,GSV50..JPP201309-201409

PLATED

main75770-33020iACV51,ASV50,GSV50..RUP201111-201305

PLATED

sub75770-33060

sub75796-33010

main75770-33021iACV51,ASV50,GSV50..RUP201309-201312

PLATED

sub75770-33022

main75770-33022iACV51,ASV50,GSV50..RUP201401-201405

PLATED

sub75770-33023

main75770-33023iACV51,ASV50,GSV50..RUP201406-201411

PLATED

main75770-33030iASV50,AVV50,GSV50..JPP201305-201309

sub75770-33011

main75770-33040iASV50,AVV50,GSV50..JPP201409-201704

PLATED

sub75770-33050

main75770-33050iASV5#,GSV50..RUP201411-201803

PLATED

main75770-33060iACV51,ASV50,GSV50..RUP201305-201309

sub75770-33021

75777CPAD, HOOD FRONT MOULDING

main75777-33010iASV50,AVV50,GSV50..JPP201108-201411

main75777-33030iASV5#,GSV50..RUP201409-201704

75778FPAD, HOOD FRONT MOULDING, RH

main75778-33010iASV50,AVV50,GSV50..JPP201108-201411

75788DPAD, HOOD FRONT MOULDING, LH

main75788-33020iASV50,AVV50,GSV50..JPP201108-201411

7579633010

main75796-33010

9010805003

main90108-05003

9017605024

main90176-05024

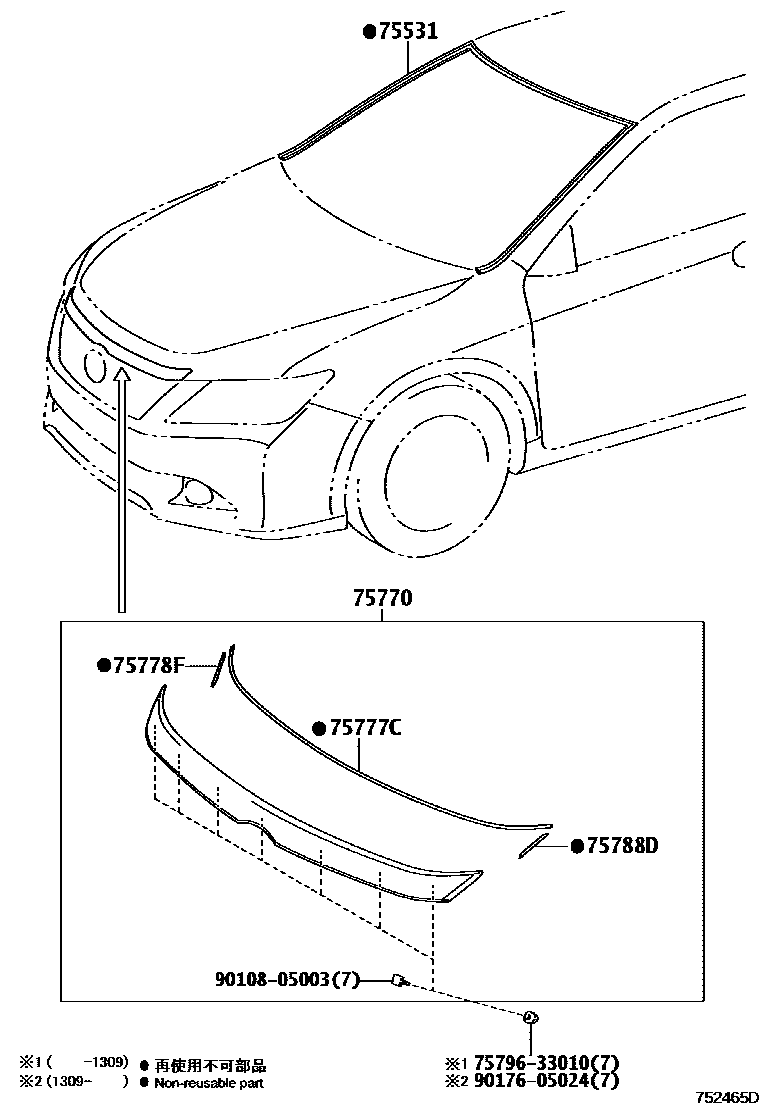

8 parts on this diagram · 3 diagrams in section
