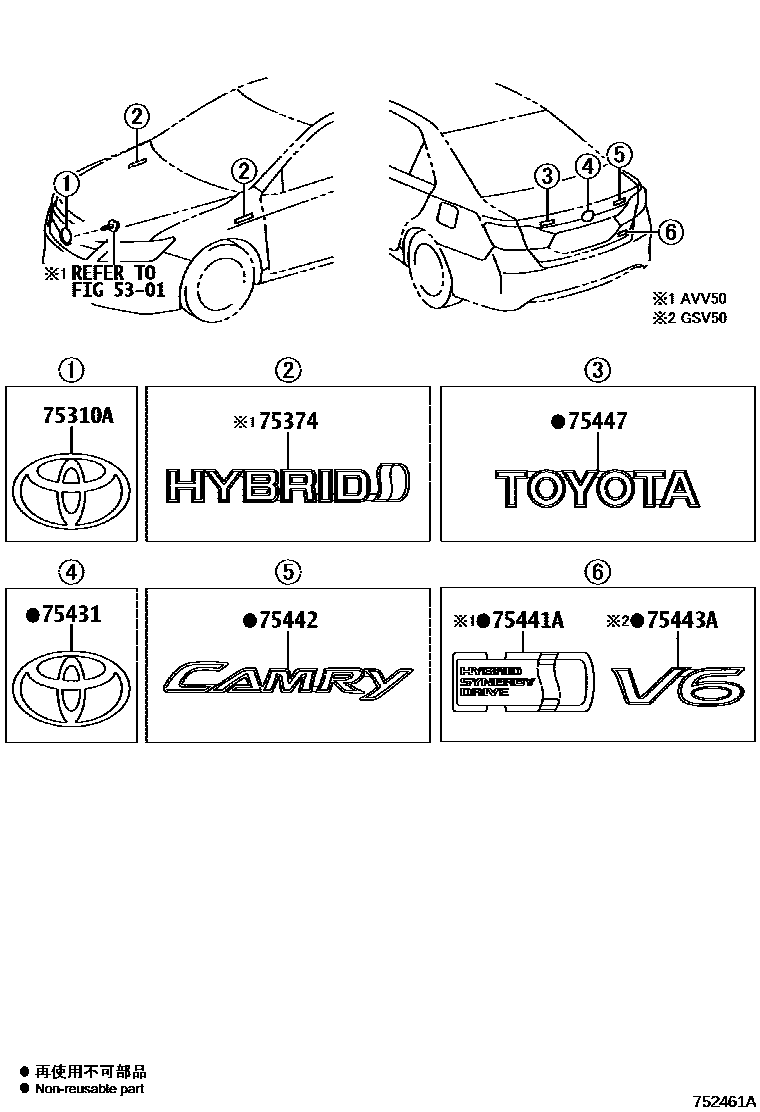

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0003 1

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-47010iAVV50201108-201409

main90975-02189iASV50,GSV50..JPP201409-201704

main90975-02192iGSV50..RUP201411-201704

main90975-T2022iASV50..RUP201704

SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4

75374EMBLEM, SIDE PANEL

main75374-52050iAVV50201409-201704

RH

main75374-52060iAVV50201409-201704

LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-33030iASV50,GSV50..JPP201108-201409

main75403-33040iACV51,ASV50,GSV50..RUP201111-201411

main75403-48010iAVV50201409-201704

main90975-02071iASV50,GSV50..JPP201409-201704

main90975-02127iASV5#,GSV50..RUP201411

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-33151iAVV50201108-201409

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-33330iASV50,AVV50,GSV50..JPP201409-201704

CAMRY

main75442-33350iASV5#,GSV50..RUP201411

CAMRY

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-33530iGSV50..JPP201409-201704

V6

main75443-33550iGSV50..RUP201411

V6

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-33140iASV50,AVV50,GSV50..JPP201409-201704

main75447-33150iASV5#,GSV50..RUP201411-201704

8 parts on this diagram · 2 diagrams in section
