BATTERY CARRIER

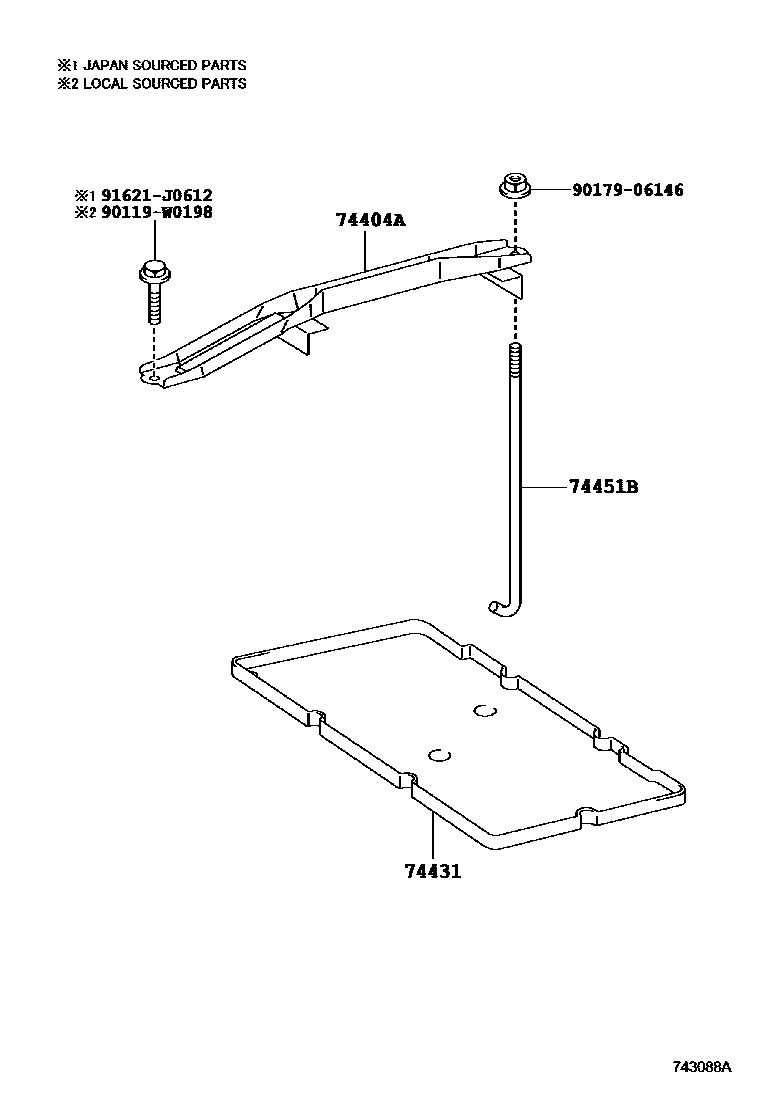

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-33120i201108-201409

74431TRAY, BATTERY

main74431-33011i201409-201704

main74440-33021i201409-201704

74451BBOLT, BATTERY CLAMP

main74452-33010i201108-201409

90119W0198

main90119-W0198

9017906146

main90179-06146

91621J0612

main91621-J0612

6 parts on this diagram · 2 diagrams in section
