EPC Data

FRONT SEAT & SEAT TRACK

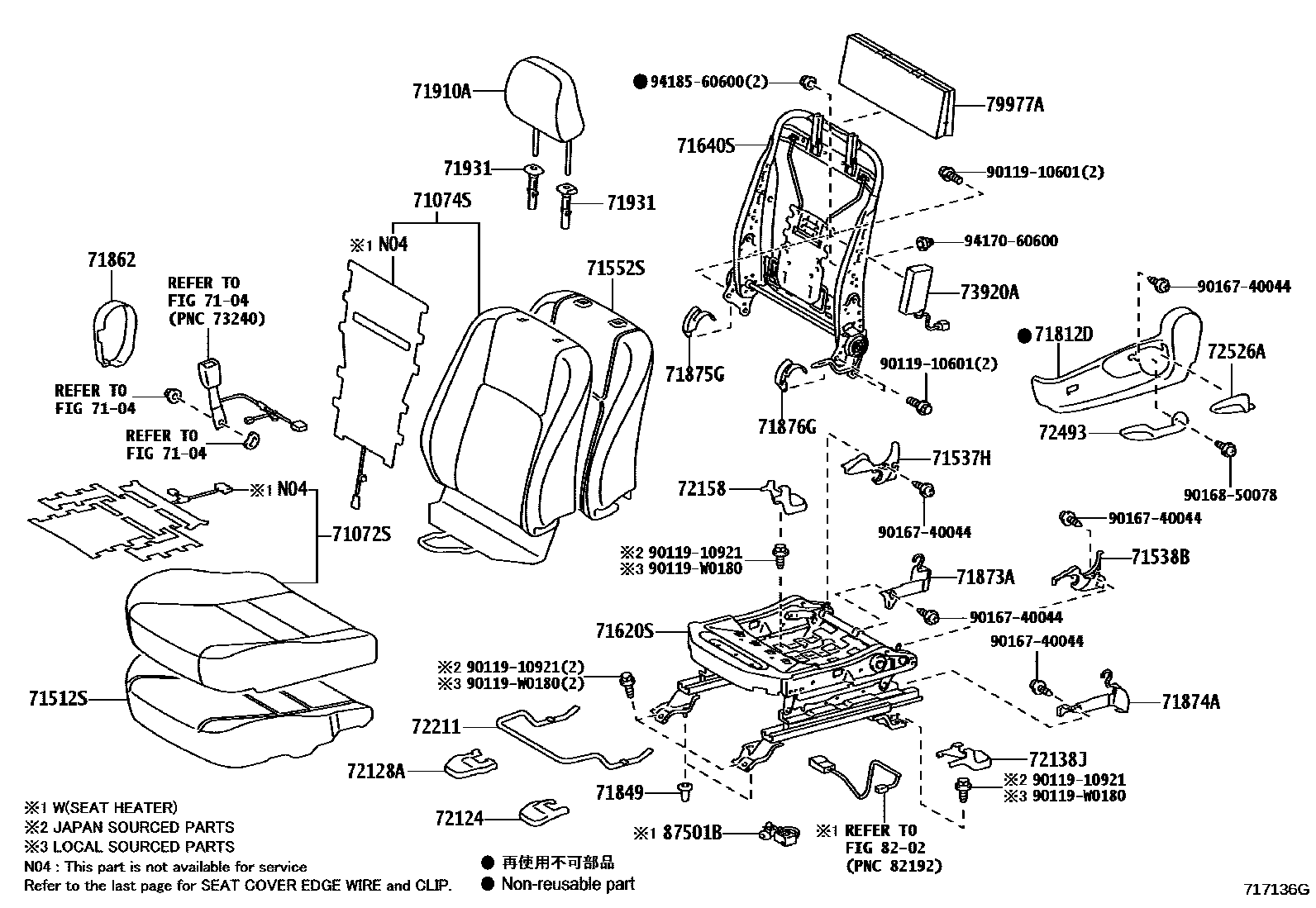

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33J30-A2i201108-201401
SHELL,TRIM0#
main71072-33J30-C2i201108-201401
BLACK,TRIM2#
main71072-33J31-A2i201401-201409
SHELL,TRIM0#
main71072-33J31-C2i201401-201409
BLACK,TRIM2#
main71072-33J40-A6i201108-201205
SHELL,TRIM0#
sub71072-33J41
main71072-33J40-A6i201108-201205
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J41
main71072-33J40-C7i201108-201205
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J41
main71072-33J40-C7i201108-201205
BLACK,TRIM2#
sub71072-33J41
main71072-33J41-A6i201206-201401
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71072-33J41-A6i201206-201401
SHELL,TRIM0#
main71072-33J41-C7i201206-201401
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33J41-C7i201206-201401
BLACK,TRIM2#
main71072-33J42-A6i201401-201409
SHELL,TRIM0#
main71072-33J42-A6i201401-201409
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71072-33J42-C7i201401-201409
BLACK,TRIM2#
main71072-33J42-C7i201401-201409
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33J50-A2i201108-201401
SHELL,TRIM0#
sub71072-33J51
sub71512-33331
main71072-33J50-C2i201108-201401
BLACK,TRIM2#
sub71072-33J51
sub71512-33331
main71072-33J51-A2i201111-201411
SHELL,TRIM0#
main71072-33J51-C2i201111-201411
BLACK,TRIM2#
main71072-33J60-A2i201108-201401
SHELL,TRIM0#
main71072-33J60-C2i201108-201401
BLACK,TRIM2#
main71072-33J61-A2i201401-201409
SHELL,TRIM0#
main71072-33J61-C2i201401-201409
BLACK,TRIM2#
main71072-33J90-21i201108-201206
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J91
main71072-33J90-21i201108-201206
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT),BLACK,TRIM2#
sub71072-33J91
main71072-33J90-21i201108-201206
SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
sub71072-33J91
main71072-33J90-21i201108-201206
BLACK,TRIM2#
sub71072-33J91
main71072-33J90-21i201108-201206
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J91
main71072-33J90-21i201108-201206
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J91
main71072-33J90-A9i201108-201206
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J91
main71072-33J90-A9i201108-201206
SHELL,TRIM0#
sub71072-33J91
main71072-33J90-A9i201108-201206
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J91
main71072-33J90-A9i201108-201206
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J91
main71072-33J90-A9i201108-201206
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT),SHELL,TRIM0#
sub71072-33J91
main71072-33J90-A9i201108-201206
SEAT HEATER-WITH(FRONT & REAR),SHELL,TRIM0#
sub71072-33J91
main71072-33J91-21i201206-201401
SEAT HEATER-WITH(FRONT & REAR),BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-21i201206-201401
BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-21i201206-201401
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-21i201206-201401
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-21i201206-201401
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-21i201206-201401
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT),BLACK,TRIM2#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT),SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J91-A9i201206-201401
SEAT HEATER-WITH(FRONT & REAR),SHELL,TRIM0#
sub71072-33J92
sub71512-33341
main71072-33J92-21i201206-201411
BLACK,TRIM2#
main71072-33J92-21i201206-201411
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33J92-A9i201206-201411
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71072-33J92-A9i201206-201411
SHELL,TRIM0#
main71072-33K00-A6i201108-201205
SHELL,TRIM0#
sub71072-33K01
main71072-33K00-A6i201108-201205
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub71072-33K01
main71072-33K00-C7i201108-201205
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
sub71072-33K01
main71072-33K00-C7i201108-201205
BLACK,TRIM2#
sub71072-33K01
main71072-33K01-A6i201206-201401
SHELL,TRIM0#
main71072-33K01-A6i201206-201401
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71072-33K01-C7i201206-201401
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33K01-C7i201206-201401
BLACK,TRIM2#
main71072-33K02-A6i201401-201409
SHELL,TRIM0#
main71072-33K02-A6i201401-201409
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71072-33K02-C7i201401-201409
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33K02-C7i201401-201409
BLACK,TRIM2#
main71072-33L90-A0i201409-201704
FLAXEN,TRIM0#
main71072-33L90-C0i201409-201704
BLACK,TRIM2#
main71072-33N00-A0i201409-201704
FLAXEN,TRIM0#
main71072-33N00-C0i201409-201704
BLACK,TRIM2#
main71072-33N10-C0i201409-201803
BLACK,TRIM2#
main71072-33N20-A2i201409-201704
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71072-33N20-A2i201409-201704
FLAXEN,TRIM0#
main71072-33N20-C1i201409-201704
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71072-33N20-C1i201409-201704
BLACK,TRIM2#
main71072-33N50-A2i201409-201803
FLAXEN,TRIM0#
main71072-33N50-C1i201409-201803
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33L50-A0i201108-201409
SHELL,TRIM0#
main71074-33L50-C0i201108-201409
BLACK,TRIM2#
main71074-33L60-A3i201108-201409
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71074-33L60-A3i201108-201409
SHELL,TRIM0#
main71074-33L60-C5i201108-201409
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33L60-C5i201108-201409
BLACK,TRIM2#
main71074-33L70-A0i201108-201411
SHELL,TRIM0#
main71074-33L70-C0i201108-201411
BLACK,TRIM2#
main71074-33L80-A3i201108-201411
SHELL,TRIM0#
main71074-33L80-C5i201108-201411
BLACK,TRIM2#
main71074-33N90-A0i201409-201704
FLAXEN,TRIM0#
main71074-33N90-C0i201409-201704
BLACK,TRIM2#
main71074-33P00-C0i201409-201803
BLACK,TRIM2#
main71074-33P20-A2i201409-201704
FLAXEN,TRIM0#
main71074-33P20-A2i201409-201704
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P20-C1i201409-201704
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P20-C1i201409-201704
BLACK,TRIM2#
main71074-33P30-A2i201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P30-A2i201409-201704
FLAXEN,TRIM0#
main71074-33P30-A2i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),FLAXEN,TRIM0#
main71074-33P30-A2i201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P30-A2i201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P30-C1i201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P30-C1i201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P30-C1i201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P30-C1i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),BLACK,TRIM2#
main71074-33P30-C1i201409-201704
BLACK,TRIM2#
main71074-33P40-A2i201411-201803
FLAXEN,TRIM0#
main71074-33P40-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P40-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P40-A2i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71074-33P40-C1i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P40-C1i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P40-C1i201411-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71074-33P40-C1i201411-201803
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-33330i201108-201401
sub71512-33410
main71512-33331i201111-201704
main71512-33340i201108-201401
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE
sub71512-33420
main71512-33340i201108-201401
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE
sub71512-33420
main71512-33340i201108-201401
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE
sub71512-33420
main71512-33340i201108-201401
*PSE(*DRP) & LEATHER PACKAGE
sub71512-33420
main71512-33340i201108-201401
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT)
sub71512-33420
main71512-33341i201111-201704
*PSE(*DRP) & LEATHER PACKAGE
main71512-33341i201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE
main71512-33341i201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71512-33341i201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71512-33341i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-47010-A1i201108-201411
SHELL,TRIM0#
sub71537-47010¥1,070
main71537-47010-A4i201409-201803
FLAXEN,TRIM0#
sub71537-47010¥1,070
main71537-47010-C0i201108-201803
BLACK,TRIM2#
sub71537-47010¥1,070
main71537-60110-A1i201108-201409
SHELL,TRIM0#
main71537-60110-A3i201409-201704
FLAXEN,TRIM0#
main71537-60110-C0i201108-201704
BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-47010-A1i201108-201411
SHELL,TRIM0#
sub71538-47010¥1,070
main71538-47010-A4i201409-201803
FLAXEN,TRIM0#
sub71538-47010¥1,070
main71538-47010-C0i201108-201803
BLACK,TRIM2#
sub71538-47010¥1,070
main71538-47020-A1i201108-201409
SHELL,TRIM0#
sub71538-47020¥1,540
main71538-47020-A2i201409-201704
FLAXEN,TRIM0#
sub71538-47020¥1,540
main71538-47020-C0i201108-201704
BLACK,TRIM2#
sub71538-47020¥1,540
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-33230i201108-201704
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-06490i201411
main71620-33030i201108-201311
sub71620-33031
main71620-33031i201312-201704
main71620-33050i201108-201311
*PSE(*DRP) & LEATHER PACKAGE
sub71620-33051
main71620-33051i201312-201704
*PSE(*DRP) & LEATHER PACKAGE
main71620-33060i201108-201311
sub71620-33061
main71620-33061i201312-201704
main71620-33070i201108-201311
sub71620-33071
main71620-33071i201312-201704
main71620-33080i201108-201312
sub71620-33081
main71620-33080i201108-201311
*LES&*DA&*PSE&*AFLS&HID&*PSE(*DRP) & LEATHER PACKAGE
sub71620-33081
main71620-33080i201108-201311
*SES&*AFLS&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE
sub71620-33081
main71620-33080i201108-201311
*SES&*AFLS&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE
sub71620-33081
main71620-33080i201108-201311
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT)
sub71620-33081
main71620-33080i201108-201311
SEAT HEATER-WITH(FRONT & REAR)
sub71620-33081
main71620-33081i201312-201411
*SES&HID&*PSE(*DRP) & LEATHER PACKAGE
main71620-33081i201312-201411
*LES&*DA&*PSE&*PSE(*DRP) & LEATHER PACKAGE
main71620-33081i201312-201411
*PSE(*DRP) & LEATHER PACKAGE
main71620-33081i201312-201411
*SES&*NS&*JA&HID&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71620-33081i201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE
main71620-33081i201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71620-33081i201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71620-33081i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
main71620-33090i201108-201311
*PSE(*DRP) & LEATHER PACKAGE
sub71620-33091
main71620-33091i201312-201409
*PSE(*DRP) & LEATHER PACKAGE
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-06680i201411
main71640-33030i201108-201704
main71640-33040i201108-201704
*PSE(*DRP) & LEATHER PACKAGE
main71640-33050i201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
main71640-33050i201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE
main71640-33050i201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71640-33050i201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71640-33050i201108-201704
*PSE(*DRP) & LEATHER PACKAGE
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33300-A0i201108-201411
SHELL,TRIM0#
main71812-33300-A1i201409-201704
FLAXEN,TRIM0#
main71812-33300-C0i201108-201803
BLACK,TRIM2#
main71812-33310-A0i201108-201411
SHELL,TRIM0#
main71812-33310-A0i201108-201411
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71812-33310-A1i201409-201803
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71812-33310-A1i201409-201803
FLAXEN,TRIM0#
main71812-33310-C0i201108-201803
BLACK,TRIM2#
main71812-33310-C0i201108-201803
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71812-33370-A0i201211-201409
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71812-33370-A0i201211-201409
SHELL,TRIM0#
main71812-33370-A1i201409-201704
FLAXEN,TRIM0#
main71812-33370-A1i201409-201704
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71812-33370-C0i201211-201704
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71812-33370-C0i201211-201704
BLACK,TRIM2#
main71812-60310-A1i201108-201409
SHELL,TRIM0#
main71812-60310-A2i201409-201704
FLAXEN,TRIM0#
main71812-60310-C0i201108-201704
BLACK,TRIM2#
main71812-60320-A1i201108-201210
SHELL,TRIM0#
sub71812-33370
main71812-60320-A1i201108-201210
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub71812-33370
main71812-60320-C0i201108-201210
BLACK,TRIM2#
sub71812-33370
main71812-60320-C0i201108-201210
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
sub71812-33370
71849CAP, SEAT ADJUSTER COVER, LH
main71848-47010i¥100201108-201704
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33070-A0i201108-201409
SHELL,TRIM0#
main71862-33070-A1i201409-201704
FLAXEN,TRIM0#
main71862-33070-C0i201108-201704
BLACK,TRIM2#
main71862-33080-A0i201108-201411
SHELL,TRIM0#
main71862-33080-A1i201409-201803
FLAXEN,TRIM0#
main71862-33080-C0i201108-201803
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47040i¥1,060201108-201409
main71873-60030i¥790201409-201704
main71873-60030i¥790201108-201409
*PSE(*DRP) & LEATHER PACKAGE
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-21040-C0i201108-201803
BLACK
sub71873-21040¥1,820
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-33110i¥1,060201108-201704
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47040i¥1,060201108-201704
main71874-60110i¥800201409-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
main71874-60110i¥800201108-201704
*PSE(*DRP) & LEATHER PACKAGE
main71874-60110i¥800201409-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE
main71874-60110i¥800201409-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE
main71874-60110i¥800201409-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-47030-A1i201108-201411
SHELL,TRIM0#
sub71875-47030¥480
main71875-47030-A3i201409-201704
FLAXEN,TRIM0#
sub71875-47030¥480
main71875-47030-C0i201108-201803
BLACK,TRIM2#
sub71875-47030¥480
main71875-60210-A1i201108-201411
SHELL,TRIM0#
main71875-60210-A1i201108-201411
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71875-60210-A3i201409-201803
FLAXEN,TRIM0#
main71875-60210-A3i201409-201803
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71875-60210-C0i201108-201803
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71875-60210-C0i201108-201803
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-47030-A1i201108-201411
SHELL,TRIM0#
sub71876-47030¥480
main71876-47030-A3i201409-201704
FLAXEN,TRIM0#
sub71876-47030¥480
main71876-47030-C0i201108-201803
BLACK,TRIM2#
sub71876-47030¥480
main71876-60210-A1i201108-201411
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71876-60210-A1i201108-201411
SHELL,TRIM0#
main71876-60210-A3i201409-201803
FLAXEN,TRIM0#
main71876-60210-A3i201409-201803
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71876-60210-C0i201108-201803
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71876-60210-C0i201108-201803
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-06C80-A3i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C80-A3i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C80-A3i201503-201512
FLAXEN,TRIM0#
main71910-06C80-A3i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C80-C2i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C80-C2i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C80-C2i201503-201512
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C80-C2i201503-201512
BLACK,TRIM2#
main71910-06C80-C2i201503-201512
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C81-A4i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C81-A4i201512-201803
FLAXEN,TRIM0#
main71910-06C81-A4i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C81-A4i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-06C81-C3i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C81-C3i201512-201803
BLACK,TRIM2#
main71910-06C81-C3i201512-201803
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C81-C3i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-06C81-C3i201512-201803
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33730-A2i201108-201305
SHELL,TRIM0#
sub71910-33731
main71910-33730-C2i201108-201305
BLACK,TRIM2#
sub71910-33731
main71910-33731-A2i201305-201411
SHELL,TRIM0#
main71910-33731-C2i201305-201411
BLACK,TRIM2#
main71910-33790-A1i201108-201411
SHELL,TRIM0#
main71910-33790-A1i201108-201411
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
main71910-33790-C1i201108-201411
BLACK,TRIM2#
main71910-33790-C1i201108-201411
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A00-A0i201409-201704
FLAXEN,TRIM0#
main71910-33A00-C0i201409-201803
BLACK,TRIM2#
main71910-33A30-A2i201409-201510
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),FLAXEN,TRIM0#
main71910-33A30-A2i201409-201510
FLAXEN,TRIM0#
main71910-33A30-A2i201409-201510
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A30-A2i201409-201510
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A30-A2i201409-201510
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A30-A2i201409-201510
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A30-C1i201409-201510
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),BLACK,TRIM2#
main71910-33A30-C1i201409-201510
BLACK,TRIM2#
main71910-33A30-C1i201409-201510
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A30-C1i201409-201510
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A30-C1i201409-201510
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A30-C1i201409-201510
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A31-A3i201510-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),FLAXEN,TRIM0#
main71910-33A31-A3i201510-201704
FLAXEN,TRIM0#
main71910-33A31-A3i201510-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A31-A3i201510-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A31-A3i201510-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A31-A3i201510-201704
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
main71910-33A31-C2i201510-201704
TSUTSUMI SFX R3&*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A31-C2i201510-201704
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A31-C2i201510-201704
TSUTSUMI,SFX,N4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A31-C2i201510-201704
TSUTSUMI SFX R4&*PSE(*DRP & *RES) & LEATHER PACKAGE,BLACK,TRIM2#
main71910-33A31-C2i201510-201704
BLACK,TRIM2#
main71910-33A31-C2i201510-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT),BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A0i201108-201411
W(LOCK),SHELL,TRIM0#
sub71930-47020¥1,040
main71930-47020-A7i201409-201803
W(LOCK),FLAXEN,TRIM0#
sub71930-47020¥1,040
main71930-47020-C0i201108-201710
W(LOCK),BLACK,TRIM2#
sub71930-47020¥1,040
main71930-47020-C0i201411-201710
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020¥1,040
main71930-47020-C4i201710-201803
W(LOCK),BLACK,TRIM2#
sub71930-47020¥1,040
main71930-47020-C4i201710-201803
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020¥1,040
main71931-47020-A0i201108-201411
W/O(LOCK),SHELL,TRIM0#
sub71931-47020¥630
main71931-47020-A7i201409-201803
W/O(LOCK),FLAXEN,TRIM0#
sub71931-47020¥630
main71931-47020-C0i201108-201710
W/O(LOCK),BLACK,TRIM2#
sub71931-47020¥630
main71931-47020-C0i201411-201710
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020¥630
main71931-47020-C4i201710-201803
W/O(LOCK),BLACK,TRIM2#
sub71931-47020¥630
main71931-47020-C4i201710-201803
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020¥630
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-33030-C0i201108-201803
BLACK,TRIM0#,2#
main72124-33030-C0i201411-201803
BLACK,TRIM0#,2#,4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-33020-C0i201108-201803
BLACK,TRIM0#,2#
main72128-33020-C0i201411-201803
BLACK,TRIM0#,2#,4#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-33100-C0i201108-201803
BLACK,TRIM0#,2#
main72138-33100-C0i201411-201803
BLACK,TRIM0#,2#,4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-33140-C0i201108-201803
BLACK,TRIM0#,2#
main72158-33140-C0i201411-201803
BLACK,TRIM0#,2#,4#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-33040i¥1,800201108-201704
72493HANDLE, VERTICAL ADJUSTING, NO.2
main72495-33010-A0i201108-201411
SHELL,TRIM0#
main72495-33010-A1i201409-201704
FLAXEN,TRIM0#
main72495-33010-C0i201108-201803
BLACK,TRIM2#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-47010-A1i201108-201411
SHELL,TRIM0#
sub72526-47010¥1,020
main72526-47010-A2i201409-201704
FLAXEN,TRIM0#
sub72526-47010¥1,020
main72526-47010-C0i201108-201803
BLACK,TRIM2#
sub72526-47010¥1,020
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-33040i201108-201704
79977AFELT, SEATBACK
main79977-33010i¥330201108-201704
8202
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-60030i¥7,000201108-201112
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT)
sub87501-60050¥7,000
main87501-60030i¥7,000201108-201112
SEAT HEATER-WITH(FRONT & REAR)
sub87501-60050¥7,000
main87501-60040i¥4,770201411
main87501-60040i¥4,770201411-201704
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
main87501-60050i¥7,000201201-201408
SEAT HEATER-WITH(FRONT & REAR)
sub87501-60040¥4,770
main87501-60050i¥7,000201201-201408
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-WITH(FRONT)
sub87501-60040¥4,770
main87501-60050i¥7,000201201-201410
sub87501-60040¥4,770
main87501-60050i¥7,000201409-201410
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
sub87501-60040¥4,770
9011910601
main90119-10601¥90
9011910921
main90119-10921¥100
90119W0180
main90119-W0180¥100
9016740044
main90167-40044¥70
9016850078
main90168-50078¥60
9417060600
main94170-60600¥60
9418560600
main94185-60600¥70

38 parts on this diagram · 9 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
