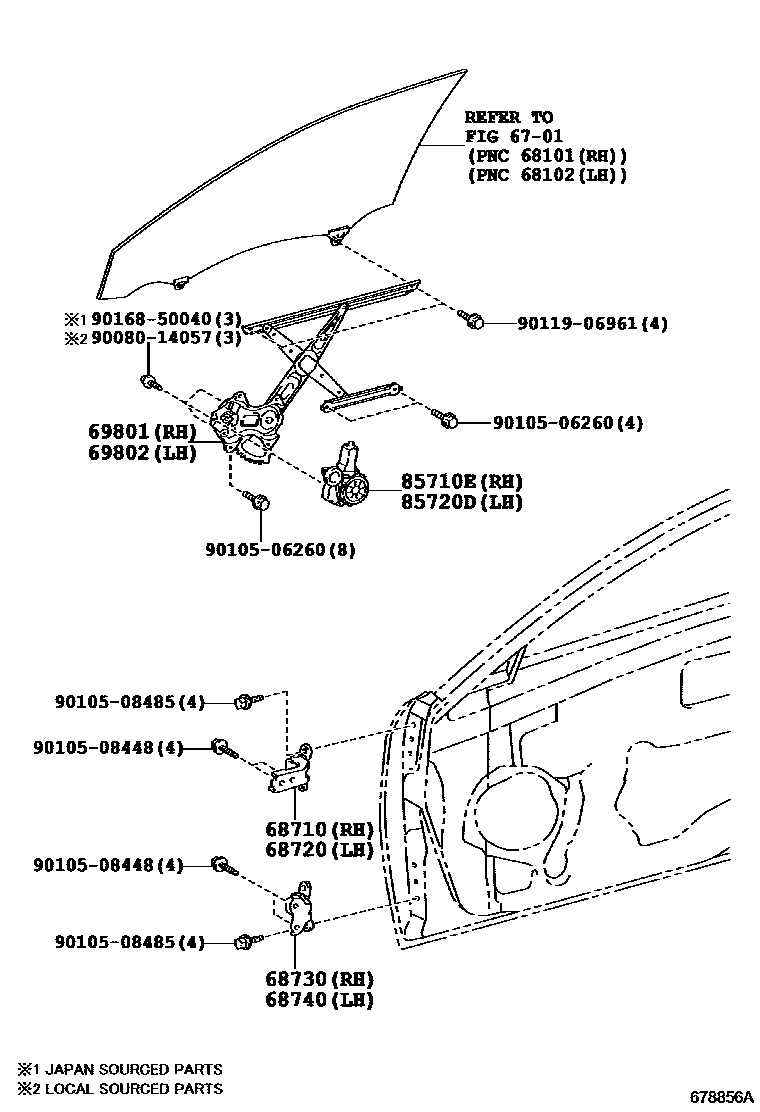

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0003 1

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D091iACV51,ASV50,GSV50..RUP201311-201704

(L)

sub68710-02060

main68710-12151iASV50,AVV50,GSV50..JPP201309-201704

(J)

main68710-12151iACV51,ASV50,AVV50,GSV50201108-201309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D091iASV50,AVV50,GSV50..JPP201311-201704

(L)

sub68720-02060

main68720-12151iASV50,AVV50,GSV50..JPP201309-201704

(J)

main68720-12151iACV51,ASV50,AVV50,GSV50201108-201309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D071iASV50,AVV50,GSV50..JPP201311-201704

(L)

sub68730-02050

main68730-12120iASV5#,GSV50..RUP201309-201704

(J)

main68730-12120iACV51,ASV50,AVV50,GSV50201108-201309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D071iACV51,ASV50,GSV50..RUP201311-201704

(L)

sub68740-02050

main68740-12120iASV50,AVV50,GSV50..JPP201309-201704

(J)

main68740-12120iACV51,ASV50,AVV50,GSV50201108-201309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33090iACV51,ASV50,AVV50,GSV50201108-201311

sub69801-52140

main69801-52140iASV50,AVV50,GSV50..JPP201312-201704

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06080iASV50,AVV50,GSV50..JPP201311-201612

(L)

main69802-33090iACV51,ASV50,AVV50,GSV50201303-201311

(J)

sub69802-52130

main69802-33090iACV51,ASV50,AVV50,GSV50201108-201303

sub69802-52130

main69802-52130iACV51,ASV50,GSV50..RUP201312-201704

(J)

main69802-52130iASV5#,GSV50..RUP201612

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42120iASV5#,GSV50..RUP201303-201704

main85710-47060iACV51,ASV50,AVV50,GSV50201108-201302

sub85710-42120

main85710-60310iASV5#,GSV50..RUP201612

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0R050iACV51,ASV50,GSV50..RUP201311-201612

(L)

main85720-42110iACV51,ASV50,GSV50..RUP201303-201704

(J)

main85720-47060iACV51,ASV50,AVV50,GSV50201108-201302

sub85720-42110

main85720-60310iASV5#,GSV50..RUP201612

9008014057

main90080-14057

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

15 parts on this diagram · 2 diagrams in section
