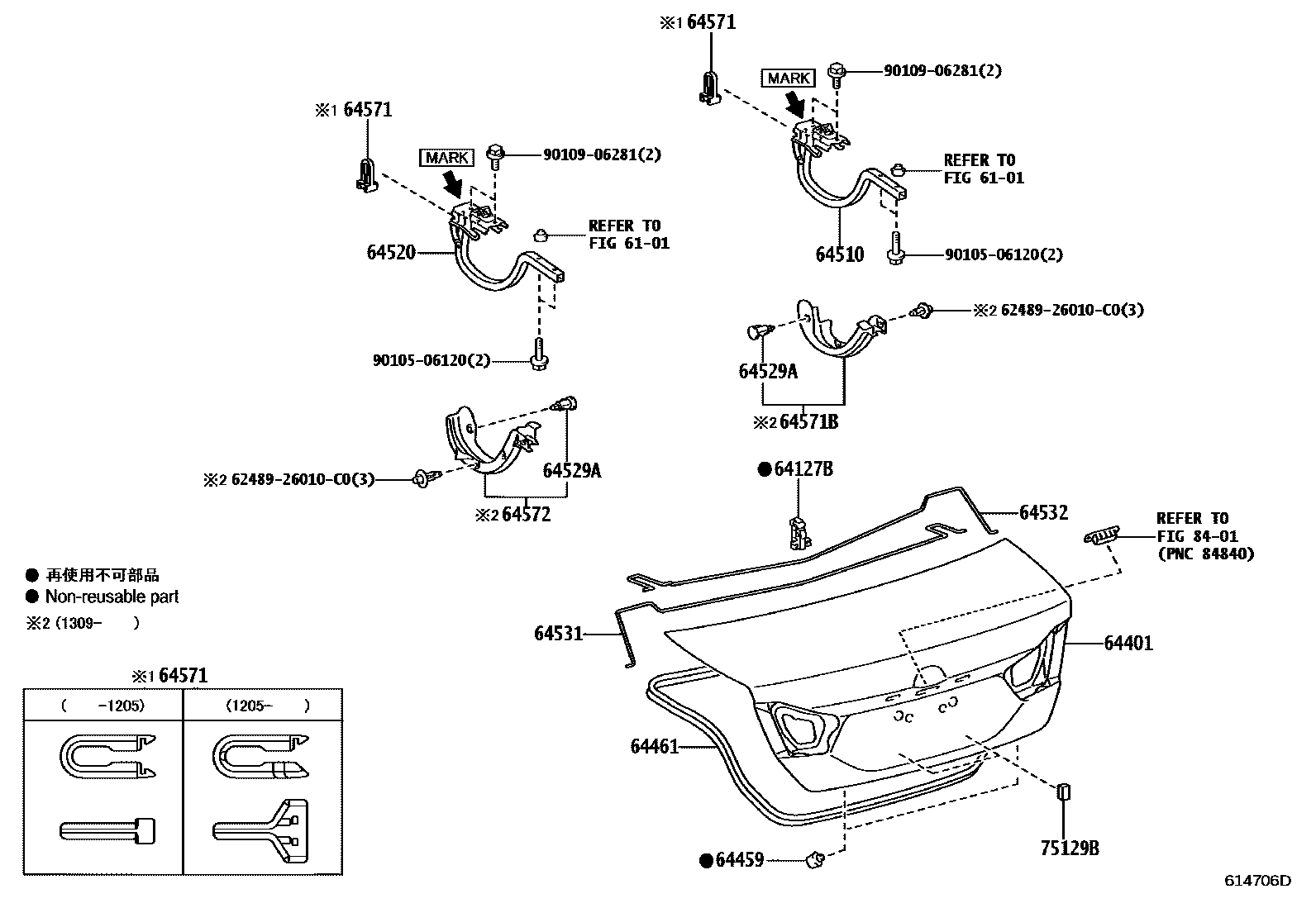

LUGGAGE COMPARTMENT DOOR & LOCK
6101
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
TSUTSUMI,SFX,N4
TSUTSUMI SFX R4
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
MARK = +
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
MARK = +
64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE
RH
LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
75129BCUSHION, REAR LICENCE PLATE
8401
6248926010C0CLIP, MAP LAMP RETAINER
main62489-26010C0
9010506120
main90105-06120
9010906281
main90109-06281
18 parts on this diagram · 3 diagrams in section
