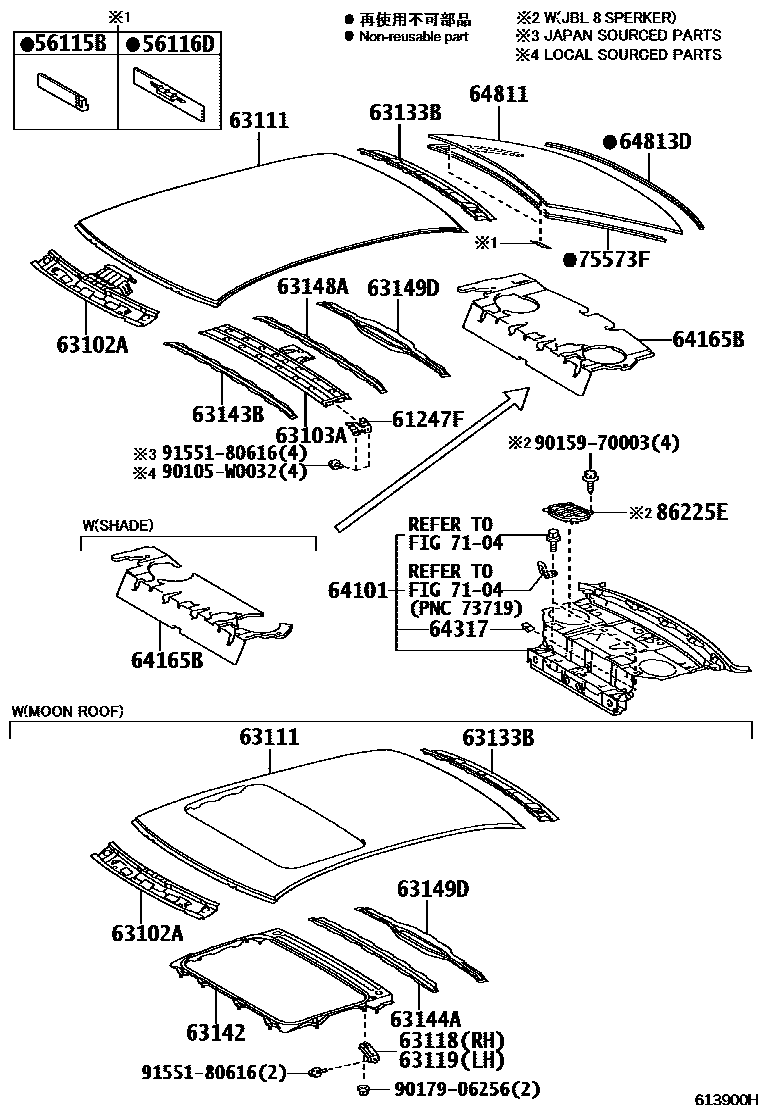

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1SLIDING ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iASV50,AVV50,GSV50..JPP201108-201409

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iASV5#,GSV50..RUP201409

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-33040×2iAVV50..RHD;ASV50,GSV50..JPP201108-201409

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33905iASV50..JPP;AVV50..RHD;GSV50..EUR201409-201704

main63102-33906iAVV50..RHD;ASV50,GSV50..EUR201108-201409

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-33020iACV51,ASV50,GSV50..RUP201108-201411

63111PANEL, ROOF

main63111-06560iASV5#..RUP201612

main63111-06570iGSV50..RUP201411-201612

TMMR,2GR,SFX,N5,(L)

main63111-33320iASV50..JPP;AVV50..RHD;GSV50..EUR201409-201704

main63111-33330iASV50..JPP..RUS201409-201704

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-33050iAVV50..RHD;ASV50,GSV50..EUR201108-201409

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-33050iAVV50..RHD;ASV50,GSV50..EUR201108-201409

MOON ROOF-WITH

63133BFRAME, BACK WINDOW

main63133-33120iASV50,AVV50,GSV50..JPP201108-201409

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-33090iAVV50..RHD;ASV50,GSV50..EUR201108-201409

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33100iAVV50..RHD;ASV50,GSV50..JPP201108-201409

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33170iAVV50..RHD;ASV50,GSV50..EUR201108-201409

MOON ROOF-WITH

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33050iAVV50..RHD;ASV50,GSV50..JPP201108-201409

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-33030iASV50,AVV50,GSV50..JPP201108-201409

64101PANEL SUB-ASSY, UPPER BACK

main64101-33330iASV50,AVV50,GSV50..JPP201409-201704

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06340supersedes 64165-06350iGSV50..RUP201311-201411

WITHOUT(REAR DOOR SUN SHADE)

main64165-06350iGSV50..RUP201411

main64165-33080iACV51,ASV50,AVV50201108-201308

main64165-33081iASV50..JPP201409-201704

main64165-33090iGSV50..RUP201108-201311

64317REINFORCEMENT, SEAT BELT ANCHORAGE TO PACKAGE TRAY

main64317-12040×2iASV50,AVV50,GSV50..JPP201409-201704

64811GLASS, BACK WINDOW

main64811-06470iASV5#,GSV50..RUP201605

main64811-33610iASV50,AVV50,GSV50..JPP201108-201409

*UVCEHT,T=3.5,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iACV51,ASV50,GSV50..RUP201108-201411

7104

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-33070iASV50,AVV50,GSV50..JPP201108-201409

86225ECOVER, SPEAKER, RH

main86225-33010supersedes 86225-33010iASV50..JPP..RUS201108-201409

*SES&*AFLS&*NS&*JA&HID

90105W0032

main90105-W0032

9015970003

main90159-70003

9017906256

main90179-06256

9155180616

main91551-80616

26 parts on this diagram · 2 diagrams in section
