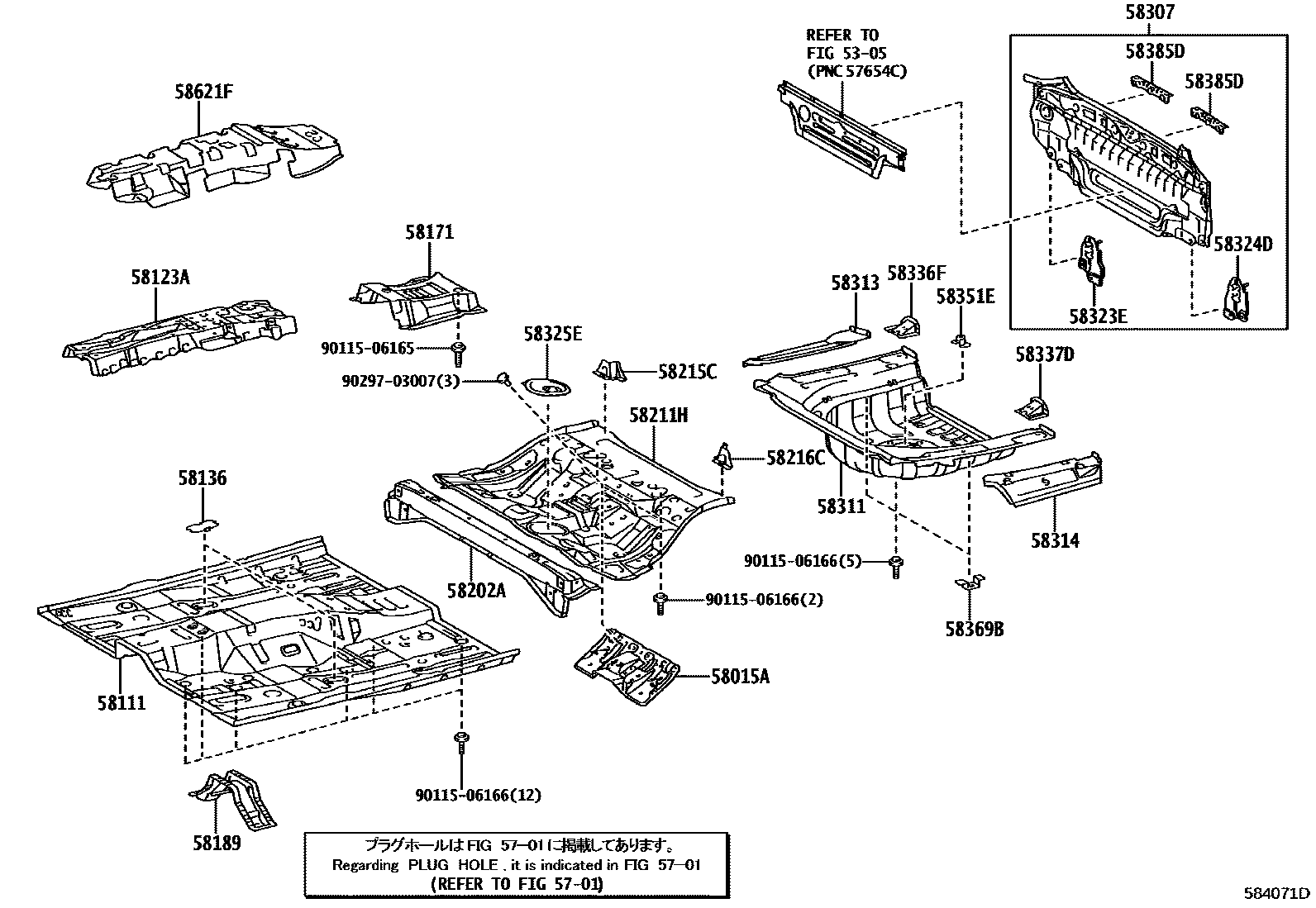

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL 0002 1FLOOR PANEL 0003 1FLOOR PANEL 0004 1FLOOR PANEL 0005 1FLOOR UNDER COVER 0007 1FLOOR UNDER COVER 0008 1FLOOR UNDER COVER 0009 1FLOOR UNDER COVER

5305

5701

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-33030supersedes 58015-33041iASV50,AVV50..JPP201108-201409

main58015-33041iASV50..JPP..RUS201409-201704

TSUTSUMI,SFX,N4

58111PAN, FRONT FLOOR

main58111-33070iACV51,ASV50,GSV50..RUP201108-201411

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-33070iACV51,ASV50,AVV50,GSV50201108-201212

58136COVER, FRONT FLOOR HOLE

main58136-33010×2iACV51,ASV50,AVV50,GSV50201108-201411

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-33080iACV51,ASV50,GSV50..RUP201108-201411

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-33050iASV50,AVV50,GSV50..JPP201212-201409

main58189-33070iACV51,ASV50,AVV50,GSV50201108-201211

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-33010iASV50,AVV50,GSV50..JPP201409-201704

58211HPAN, CENTER FLOOR

main58211-33142iACV51,ASV50,GSV50..RUP201108-201411

main58211-33160iAVV50201108-201409

58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-33040iASV5#,GSV50..RUP201409

58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-33030iASV50,AVV50,GSV50..JPP201108-201409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-33160iASV50,AVV50,GSV50..JPP201108-201409

58311PAN, REAR FLOOR

main58311-06180iASV5#,GSV50..RUP201411

main58311-33071iASV50,AVV50,GSV50..JPP201409-201704

58313PANEL, REAR FLOOR SIDE, RH

main58313-33050iASV50,GSV50..JPP201409-201704

main58313-33060iAVV50201409-201704

58314PANEL, REAR FLOOR SIDE, LH

main58314-33060iASV5#,GSV50..RUP201409

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-33080iASV50,AVV50,GSV50..JPP201108-201409

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-33060iASV50,AVV50,GSV50..JPP201108-201409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-33050iASV50,AVV50,GSV50..JPP201108-201409

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-33020iASV5#,GSV50..RUP201409

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-33030iASV50,AVV50,GSV50..JPP201108-201409

58351EBRACKET, SPARE WHEEL CLAMP

main58351-33010iASV50,AVV50,GSV50..JPP201108-201409

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010×2iASV50,AVV50,GSV50..JPP201108-201409

58385DBRACKET, REAR BUMPER COVER

main58385-33050×2iASV50,AVV50,GSV50..JPP201108-201409

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-06140iASV5#,GSV50..RUP201411

main58621-33090iASV50,AVV50,GSV50..JPP201409-201704

9011506165

main90115-06165

9011506166

main90115-06166

9029703007

main90297-03007

28 parts on this diagram · 8 diagrams in section
