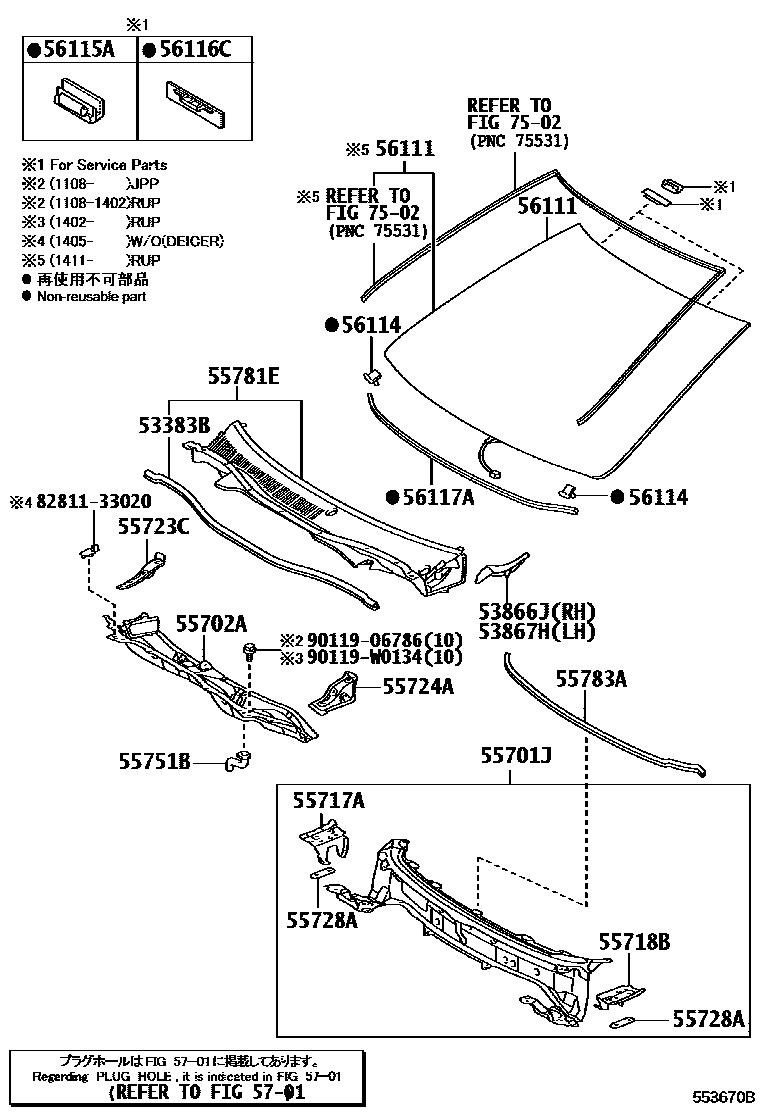

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-06120iACV51,ASV50,GSV50..RUP201404-201411

main53383-33090iASV50,AVV50..RHD201108-201310

main53383-33130iASV50,AVV50..RHD201311-201409

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33080iASV5#,GSV50..RUP201409

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33080iASV50,AVV50,GSV50..JPP201409-201704

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-33170iASV50,AVV50,GSV50..JPP..LHD201409-201704

main55701-33180iASV50,AVV50..RHD201108-201409

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-33060iASV50,GSV50..LHD201108-201110

main55702-33061iACV51,ASV50,GSV50..LHD201111-201401

main55702-33062iASV50,GSV50..JPP..LHD201409-201704

main55702-33070iASV50..RHD201108-201110

main55702-33071iASV50..RHD201409-201704

main55702-33080iAVV50..LHD201108-201110

main55702-33081iAVV50..LHD201111-201401

main55702-33082iAVV50..LHD201402-201409

main55702-33090iAVV50..RHD201108-201110

main55702-33091iAVV50..RHD201409-201704

main55702-33190iASV5#,GSV50..RUP201411

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33060iASV50,AVV50,GSV50..JPP201108-201409

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33060iASV50,AVV50,GSV50..JPP201108-201409

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33060iASV50,AVV50,GSV50..JPP..LHD201108-201409

main55723-33070iASV50,AVV50..RHD201108-201409

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33070iASV5#,GSV50..RUP201409

main55724-33080iASV50,AVV50..RHD201409-201704

55728AREINFORCEMENT, HOOD STOPPER

main55728-33040×2iASV5#,GSV50..RUP201409

55751BHOSE, COWL WATER EXTRACT, NO.1

main55751-33040iASV5#,GSV50..RUP201409

main55751-33050iAVV50;ASV50..RHD201409-201704

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-06240iACV51,ASV50,GSV50..RUP201404-201411

main55708-33150iASV50,AVV50,GSV50..LHD..EUR201108-201405

sub55708-33230

main55708-33151iASV50,AVV50,GSV50..LHD..EUR201405-201409

main55708-33160iASV50,GSV50..LHD..EUR201108-201405

COLD AREA SPEC

sub55708-33240

main55708-33161iASV50,GSV50..LHD..EUR201405-201409

COLD AREA SPEC

main55708-33170iASV50,AVV50..RHD201108-201310

main55708-33171iASV50,AVV50..RHD201311-201409

main55708-33250iASV5#,GSV50..RUP201411

55783APAD, COWL TOP SILENCER

main55783-33080×2iACV51,ASV50,GSV50..RUP201108-201411

56111GLASS, WINDSHIELD

main56101-33913supersedes 56101-06953iASV50,AVV50,GSV50..JPP..LHD201108-201301

*LAM,T=4.56,GREEN

main56101-33914iASV50,AVV50..RHD201108-201301

*LAM,T=4.56,GREEN

main56101-33954iASV50,AVV50,GSV50..JPP..LHD201409-201610

main56101-33955iASV50,AVV50..RHD201301-201409

*LAM,T=4.56,GREEN

main56101-33989iASV50,AVV50,GSV50..JPP..LHD201610-201704

main56101-33990iASV50,AVV50..RHD201610-201704

main56101-33972iASV50,GSV50..LHD..EUR201409-201610

ARGENTINA SPEC

main56101-33995iASV50,GSV50..LHD..EUR201610-201704

ARGENTINA SPEC

56114RETAINER, WINDSHIELD GLASS

main56114-33050×2iASV50,AVV50,GSV50..JPP201108-201409

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iASV50,AVV50,GSV50..JPP201108-201409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASV50,AVV50,GSV50..JPP201108-201409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iASV50,AVV50,GSV50..JPP201108-201409

*D,L=1358

5701

7502

8281133020PLATE, WIRING HARNESS THROUGH HOLE, NO.1

main82811-33020

9011906786

main90119-06786

90119W0134

main90119-W0134

23 parts on this diagram · 3 diagrams in section
