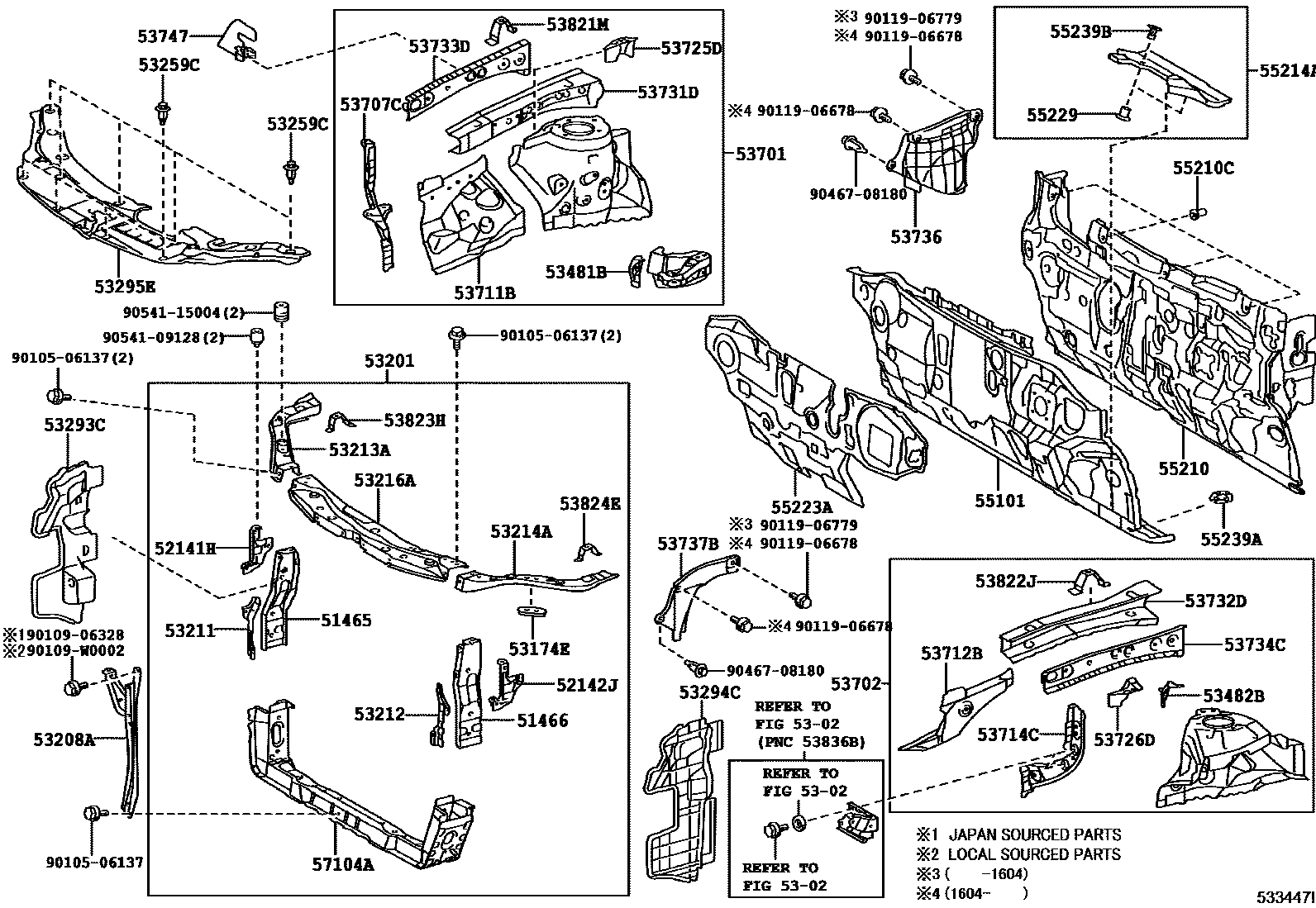

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-33060iASV50,AVV50,GSV50..JPP201409-201704

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-33070iASV50,AVV50,GSV50..JPP201108-201409

52141HARM, FRONT BUMPER, UPPER RH

main52141-33110iASV50,AVV50,GSV50..JPP201108-201409

52142JARM, FRONT BUMPER, UPPER LH

main52142-33080iASV50,AVV50,GSV50..JPP201108-201409

5302

53174EBRACKET, RADIATOR SUPPORT SIDE

main53174-33020iASV50,AVV50,GSV50..JPP201108-201409

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33182iASV50,AVV50,GSV50..JPP201108-201409

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-33050iACV51,ASV50,AVV50,GSV50201108-201409

sub53001-33010

main53208-33051iACV51,ASV50,GSV50..RUP201409-201411

53211SUPPORT, RADIATOR, RH

main53211-33081iACV51,ASV50,GSV50..RUP201108-201411

53212SUPPORT, RADIATOR, LH

main53212-33081iACV51,ASV50,GSV50..RUP201108-201411

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33050iASV50,AVV50,GSV50..JPP201108-201409

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33050iASV50,AVV50,GSV50..JPP201108-201409

53216ASUPPORT, RADIATOR, UPPER

main53216-33150iACV51,ASV50,GSV50..RUP201108-201411

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×9iACV51,ASV50,AVV50,GSV50201108-201209

main90467-07217×9iASV50,AVV50,GSV50..JPP201210-201409

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-33080iASV50,GSV50..JPP201108-201409

main53293-33090iAVV50201108-201409

main53293-33120iASV5#,GSV50..RUP201409

main53293-33130iAVV50201409-201704

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-33080iASV50,GSV50..JPP201108-201409

main53294-33090iAVV50201108-201409

main53294-33120iASV50,GSV50..JPP201409-201704

main53294-33130iAVV50201409-201704

main53294-33140iGSV50..EUR201409-201704

ARGENTINA SPEC

53295ESEAL, COOL AIR INTAKE DUCT

main53295-33070iASV50,AVV50,GSV50..JPP201108-201409

main53295-33100iASV50,AVV50,GSV50..JPP201409-201704

53481BBRACKET, HOOD SUPPORT, RH

main53481-33050iACV51,ASV50,AVV50,GSV50201108-201411

53482BBRACKET, HOOD SUPPORT LH

main53482-33040iACV51,ASV50,AVV50,GSV50201108-201411

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33170iACV51,ASV50,AVV50,GSV50201108-201411

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33130iACV51,ASV50,AVV50,GSV50201108-201411

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-33010iASV50,AVV50,GSV50..JPP201108-201409

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33080iASV50,AVV50,GSV50..JPP201108-201409

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33050iASV50,AVV50,GSV50..JPP201409-201704

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-33030iACV51,ASV50,AVV50,GSV50201108-201404

main53714-33031iASV50,AVV50,GSV50..JPP201405-201409

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-33020iASV50,AVV50,GSV50..JPP201108-201409

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-33020iASV50,AVV50,GSV50..JPP201108-201409

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33090iACV51,ASV50,GSV50..RUP201108-201411

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33080iASV5#,GSV50..RUP201409

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33050iASV50,AVV50,GSV50..JPP201108-201409

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33050iASV50,AVV50,GSV50..JPP201108-201409

53736SEAL, FRONT FENDER APRON, RH

main53736-33040iASV50,AVV50,GSV50..JPP201108-201409

53737BSEAL, FRONT FENDER APRON, LH

main53737-33020iASV50,AVV50,GSV50..JPP201108-201409

53747PLATE, AIR SEALED, RH

main53747-33020iASV50,AVV50,GSV50..JPP201108-201409

53821MBRACKET, FRONT FENDER, REAR NO.1 RH

main53821-33050iASV50,AVV50,GSV50..JPP201108-201409

53822JBRACKET, FRONT FENDER, REAR NO.1 LH

main53822-33040iASV50,AVV50,GSV50..JPP201108-201409

53823HGUSSET, FRONT FENDER, RH

main53823-33030iASV50,AVV50,GSV50..JPP201108-201409

53824EGUSSET, FRONT FENDER, LH

main53824-33030iASV50,AVV50,GSV50..JPP201108-201409

55101PANEL SUB-ASSY, DASH

main55101-33410iASV5#,AVV50,GSV50..LHD201409-201803

main55101-33430iASV50,AVV50..RHD201108-201409

55210INSULATOR ASSY, DASH PANEL

main55210-06400iASV5#,GSV50..RUP201411

main55210-33200iASV50,GSV50..JPP..LHD201409-201704

main55210-33210iASV50..RHD201409-201704

main55210-33221iAVV50..RHD201108-201409

main55210-33231iAVV50..LHD201409-201704

55210CCLIP

main90467-06197×4iASV5#,GSV50..RUP201409

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-06051iACV51,ASV50,GSV50..RUP201111-201411

main55214-33070iASV50,AVV50..RHD201108-201409

main55214-33080iASV50,AVV50,GSV50..JPP..LHD201108-201409

55223AINSULATOR, DASH PANEL, OUTER

main55223-06430iASV5#..RUP201411-201601

main55223-33190iGSV50..JPP201108-201409

main55223-33191iGSV50..RUP201601

main55223-33200iACV51,ASV50..RUP201108-201411

main55223-33210iASV50..RHD201409-201704

main55223-33220iAVV50..RHD201108-201409

main55223-33230iAVV50..LHD201409-201601

main55223-33231iAVV50..LHD201601-201704

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48020×2iASV50,AVV50,GSV50..JPP201108-201409

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33020×2iACV51,ASV50,AVV50,GSV50201108-201411

55239BPLATE, FRONT FLOOR FOOTREST, NO.2

main55239-48020×2iASV50,AVV50,GSV50..JPP201108-201409

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33051iACV51,ASV50,AVV50,GSV50201108-201402

main57104-33052iASV50,AVV50,GSV50..JPP201403-201409

9010506137

main90105-06137

9010906328

main90109-06328

90109W0002

main90109-W0002

9011906678

main90119-06678

9011906779

main90119-06779

9046708180

main90467-08180

9054109128

main90541-09128

9054115004

main90541-15004

55 parts on this diagram · 2 diagrams in section
