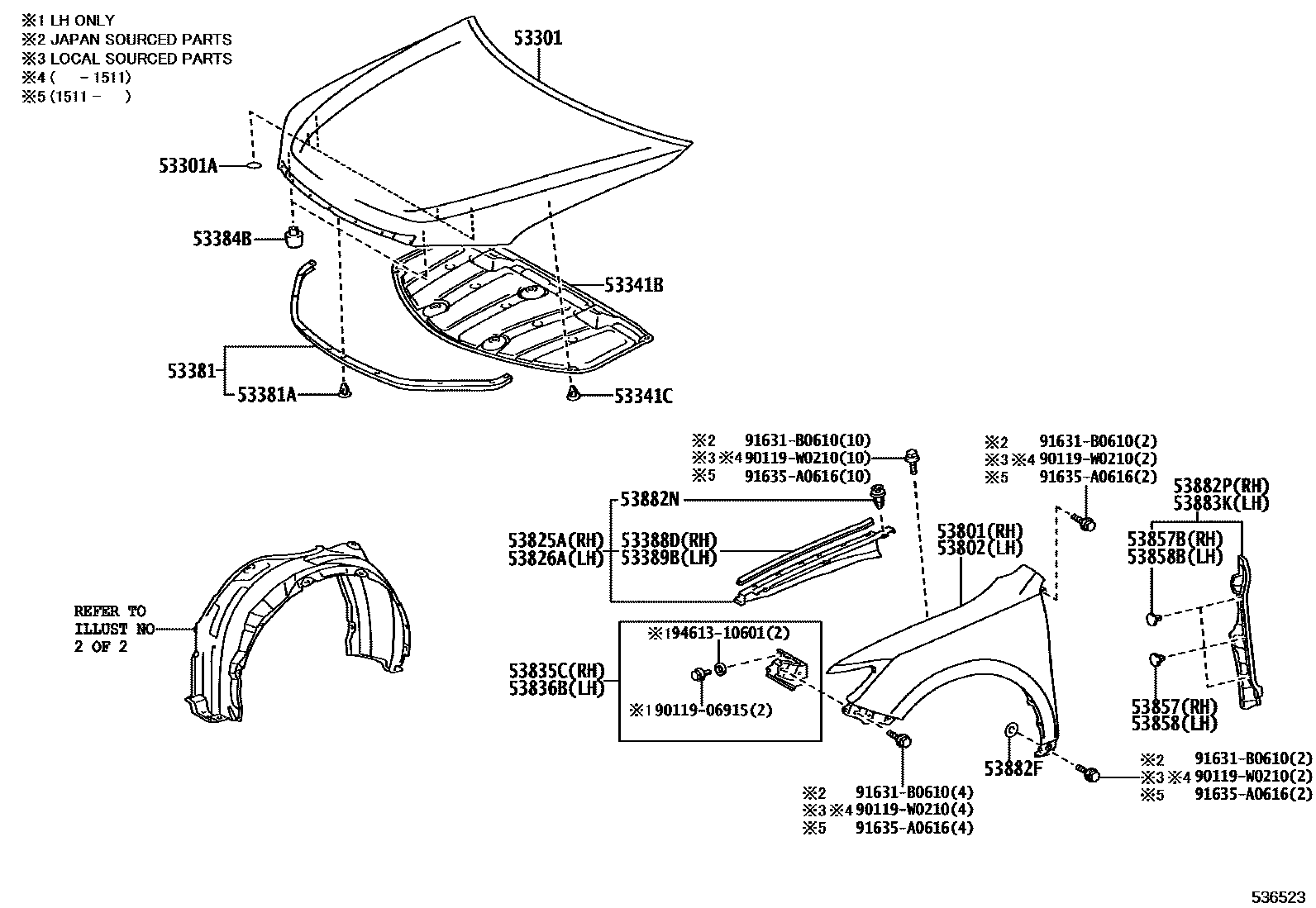

HOOD & FRONT FENDER
53301APLUG, HOLE(FOR HOOD)
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
(L)
(J)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
53882NCLIP(FOR FRONT FENDER SEAL)
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
9011906915
main90119-06915
90119W0210
main90119-W0210
91631B0610
main91631-B0610
91635A0616
main91635-A0616
9461310601
main94613-10601
28 parts on this diagram · 2 diagrams in section
