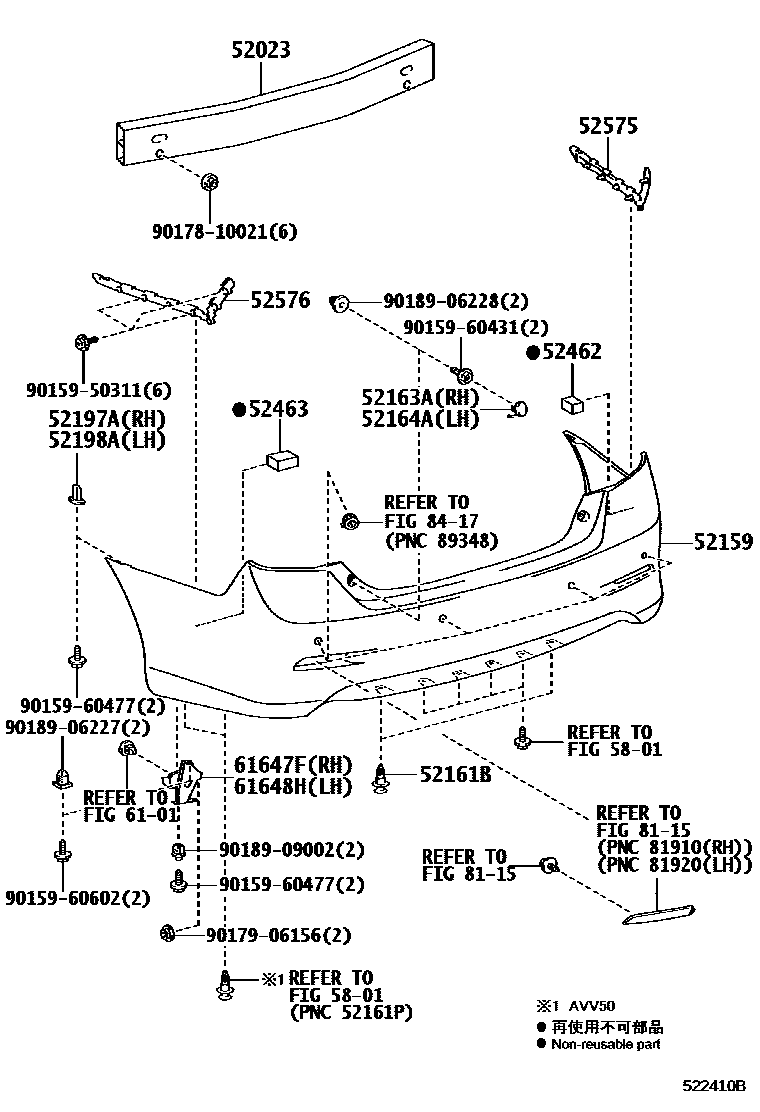

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-33150iACV51,ASV50,GSV50..RUP201108-201704

52159COVER, REAR BUMPER

main52159-06991iASV5#,GSV50..RUP201504-201803

PAINT REQ.

main52159-33939iASV50..LHD..EUR201108-201409

PAINT REQ.

main52159-33940iAVV50..LHD201108-201411

PAINT REQ.

main52159-33946iASV50..LHD..EUR201409-201511

PAINT REQ.

sub52159-33956

main52159-33947iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201511

PAINT REQ.

sub52159-33957

main52159-33956iASV50..LHD..EUR201511-201704

PAINT REQ.

main52159-33957iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201511-201704

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iASV5#,GSV50..RUP201108-201704

sub52161-0K040

52163APLATE, REAR BUMPER, RH

main52163-33901iASV50..LHD..EUR201108-201511

sub52163-33902

main52163-33902iASV50..LHD..EUR201511-201803

52164APLATE, REAR BUMPER, LH

main52164-33901iASV50..LHD..EUR201108-201511

sub52164-33902

main52164-33902iASV50..LHD..EUR201511-201803

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iASV50,AVV50,GSV50..JPP201108-201704

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iACV51,ASV50,GSV50..RUP201108-201704

52462PAD, REAR BUMPER, RH

main52462-33020iACV51,ASV50,AVV50,GSV50201108-201411

main52462-33040iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201803

52463PAD, REAR BUMPER, LH

main52463-33010iACV51,ASV50,AVV50,GSV50201108-201411

main52463-33030iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201409-201803

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33120iACV51,ASV50,AVV50,GSV50201108-201311

sub52575-33121

main52575-33121iASV5#,GSV50..RUP201312-201704

52576RETAINER, REAR BUMPER SIDE, LH

main52576-33090iACV51,ASV50,AVV50,GSV50201108-201311

sub52576-33091

main52576-33091iASV50,AVV50,GSV50..JPP201312-201704

5801

6101

61647FREINFORCEMENT, WHEEL HOUSE, RH

main61647-33060iASV50,AVV50,GSV50..JPP201409-201704

main61647-33070iASV50,AVV50,GSV50..JPP201108-201411

61648HREINFORCEMENT, WHEEL HOUSE, LH

main61648-33060iASV50,AVV50,GSV50..JPP201409-201704

main61648-33070iASV50,AVV50,GSV50..JPP201108-201411

8115

8417

9015950311

main90159-50311

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

9017810021

main90178-10021

9017906156

main90179-06156

9018906227

main90189-06227

9018906228

main90189-06228

9018909002

main90189-09002
