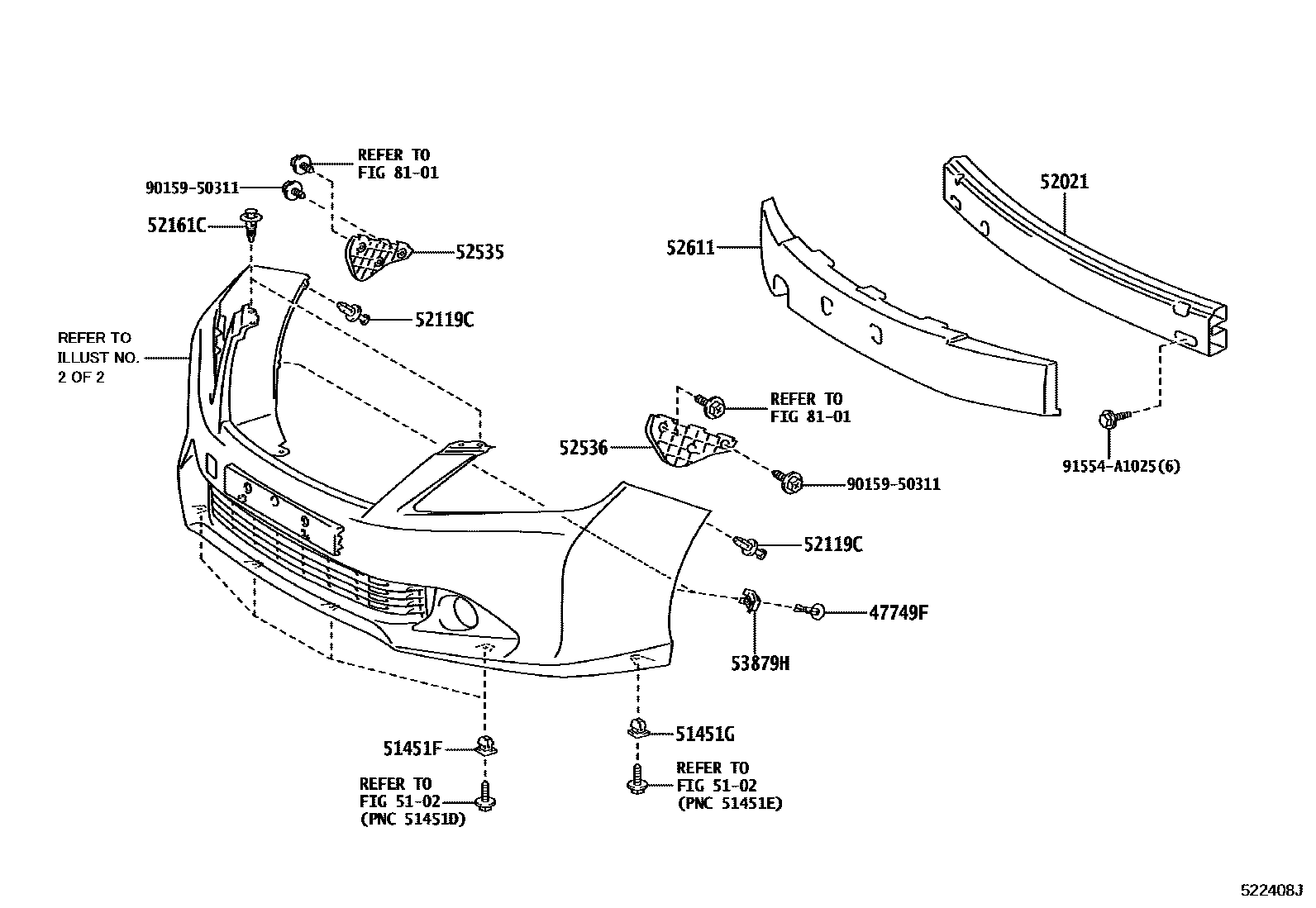

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1 0007 1 0009 1 0011 1 0012 1

47749FCLIP, PIN HOLD

main47749-50090×2iACV51,ASV50,GSV50..RUP201111-201411

main47749-58010×2iASV50,AVV50,GSV50..JPP201108-201409

5102

51451FGROMMET, NO.1

main90189-06193×2supersedes 90189-06193iAVV50201108-201409

51451GGROMMET, NO.2

main90189-06193×2supersedes 90189-06193iASV50..RUS;ASV50..RHD;ACV51,AVV50,GSV50201108-201411

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-33180iACV51,ASV50,AVV50,GSV50201108-201304

main52021-33181iASV50,AVV50,GSV50..JPP201305-201409

52119CCLIP, FRONT BUMPER COVER

main90467-05090-B1×2iACV51,ASV50,AVV50,GSV50201108-201212

DK.GRAY

main90467-05170×2iACV51,ASV50,AVV50,GSV50201301-201411

52161CPIECE, FRONT BUMPER

main52161-16010×2iASV5#,GSV50..RUP201409

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33050iASV5#,GSV50..RUP201409

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33050iASV50,AVV50,GSV50..JPP201409-201704

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06370iACV51,ASV50,GSV50..RUP201306-201411

main52611-06440iASV5#,GSV50..RUP201411-201601

main52611-33200iACV51,ASV50,GSV50..RUP201108-201305

main52611-33210iAVV50201108-201409

main52611-33260iASV50,AVV50,GSV50..JPP201409-201704

53879HRETAINER, FRONT FENDER LINER

main53879-30040×2iACV51,ASV50,AVV50,GSV50201108-201411

main53879-30050×2iASV50,AVV50,GSV50..JPP201409-201704

8101

9015950311

main90159-50311

91554A1025

main91554-A1025

14 parts on this diagram · 8 diagrams in section
