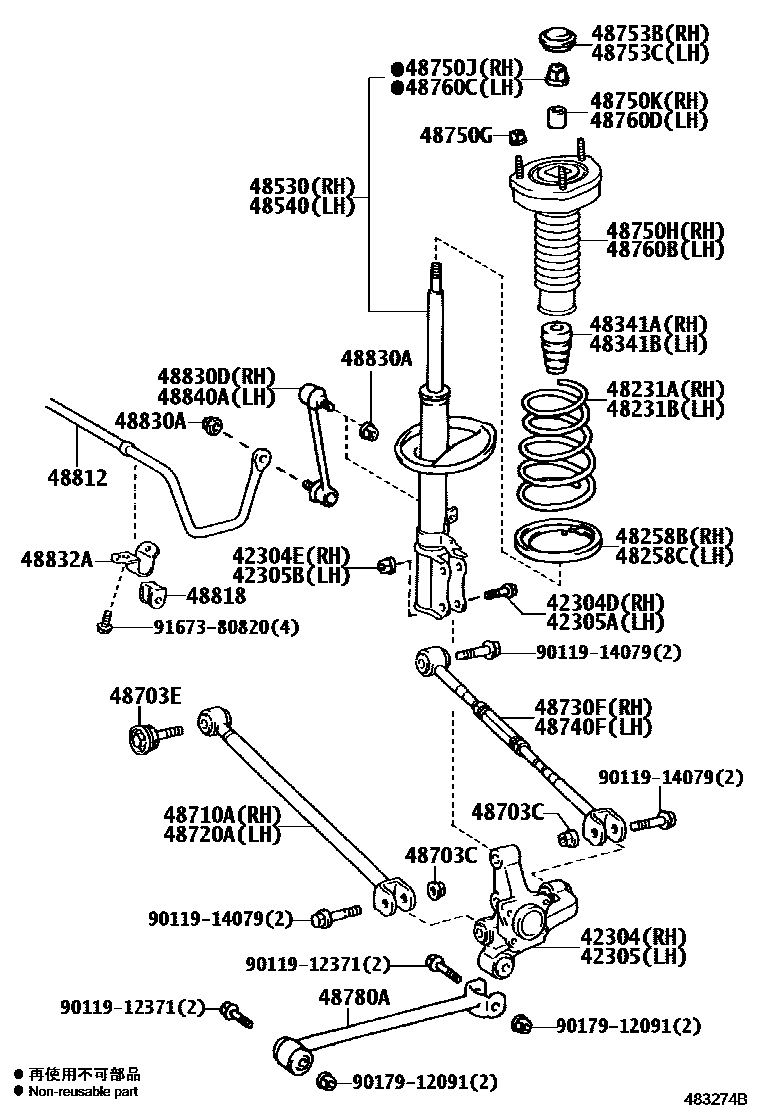

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-48010iACV51,ASV50,GSV50..RUP201108-201411

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90109-15001×2iASV5#,AVV50,GSV50201510

main90901-05001×2iACV51,ASV50,GSV50..RUP201108-201411

42304ENUT (FOR REAR AXLE CARRIER RH)

main90178-15002×2iASV5#,AVV50,GSV50201409

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-48010iASV50,AVV50,GSV50..JPP201108-201409

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90109-15001×2iASV5#,AVV50,GSV50201510

main90901-05001×2iASV5#,AVV50,GSV50201409-201509

42305BNUT (FOR REAR AXLE CARRIER LH)

main90178-15002×2iASV5#,AVV50,GSV50201409

48231ASPRING, COIL, REAR RH

main48231-33590iACV51,ASV50,GSV50..RUP201108-201411

main48231-33600iAVV50201409-201704

48231BSPRING, COIL, REAR LH

main48231-33590iASV5#,GSV50201409

main48231-33600iAVV50201409-201704

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32021iASV50,AVV50,GSV50201108-201206

main48258-32022iACV51,ASV50,GSV50..RUP201207-201411

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-33020iASV50,AVV50,GSV50201108-201206

main48258-33021iASV50,AVV50,GSV50..JPP201207-201409

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32053iACV51,ASV50,GSV50..RUP201108-201411

main48341-32054iASV5#,AVV50,GSV50201611

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32053iACV51,ASV50,GSV50..RUP201108-201411

main48341-32054iASV5#,AVV50,GSV50201611

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80618iAVV50201108-201409

MARK 48530-33460

main48530-80619iASV50,GSV50..JPP201108-201409

MARK 48530-33470

main48530-80727iASV5#,GSV50..RUP201409

MRAK 48530-33471

main48530-80728iAVV50201409-201506

MRAK 48530-33461

main48530-80794iASV50,GSV50..JPP201506-201704

MARK 48530-33471

main48530-80795iAVV50201506-201704

MARK 48530-33461

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-80014iAVV50201108-201409

MARK 48540-33460

main48540-80015iACV51,ASV50,GSV50..RUP201108-201411

MARK 48540-33470

main48540-80022iASV50,GSV50..JPP201409-201506

MARK 48540-33471

main48540-80023iAVV50201409-201506

MARK 48540-33461

main48540-80584iASV50,GSV50..JPP201506-201704

MARK 48540-33471

main48540-80585iAVV50201506-201704

MARK 48540-33461

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14068×4iASV50,AVV50,GSV50..JPP201108-201409

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-19045×2iASV5#,AVV50,GSV50201409

*14-1.50PX76-36

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-33100iASV5#,AVV50,GSV50201409

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-33100iACV51,ASV50,GSV50..RUP201108-201411

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-33110iASV5#..LHD201409

main48730-33150iASV50..RHD;AVV50,GSV50201409

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-33100iASV5#,AVV50,GSV50201409

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×6iACV51,ASV50,GSV50..RUP201108-201411

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-33130iASV5#,AVV50,GSV50201409

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-14007iASV50,AVV50,GSV50..JPP201506-201704

main90179-14015iASV5#,GSV50..RUP201409

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iASV50,AVV50,GSV50..JPP201108-201409

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-33010iASV50,AVV50,GSV50..JPP201108-201409

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-33010iASV50,AVV50,GSV50..JPP201108-201409

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-33130iASV5#,AVV50,GSV50201409

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-14007iASV50,AVV50,GSV50..JPP201506-201704

main90179-14015iASV5#,GSV50..RUP201409

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iASV50,AVV50,GSV50..JPP201108-201409

48780AROD ASSY, STRUT, REAR

main48780-33040×2iACV51,ASV50,GSV50..RUP201108-201411

48812BAR, STABILIZER, REAR

main48812-33210iASV50..JPP..RUS;AVV50,GSV50..JPP201108-201409

main48812-33250iASV50..EUR201108-201409

48818BUSH, STABILIZER, REAR

main48818-33100×2iASV50,AVV50,GSV50..JPP201108-201409

main48818-33101×2iASV5#,GSV50..RUP201506-201606

main48818-33102×2iASV5#,GSV50..RUP201606

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183×4iASV50,AVV50,GSV50..JPP201108-201409

48830DLINK ASSY, REAR STABILIZER, RH

main48830-33040iASV50,AVV50,GSV50..JPP201108-201409

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-33060×2iASV50,AVV50,GSV50..JPP201108-201409

48840ALINK ASSY, REAR STABILIZER, LH

main48830-33040iASV50,AVV50,GSV50..JPP201108-201409

9011912371

main90119-12371

9011914079

main90119-14079

9017912091

main90179-12091

9167380820

main91673-80820

40 parts on this diagram · 1 diagram in section
