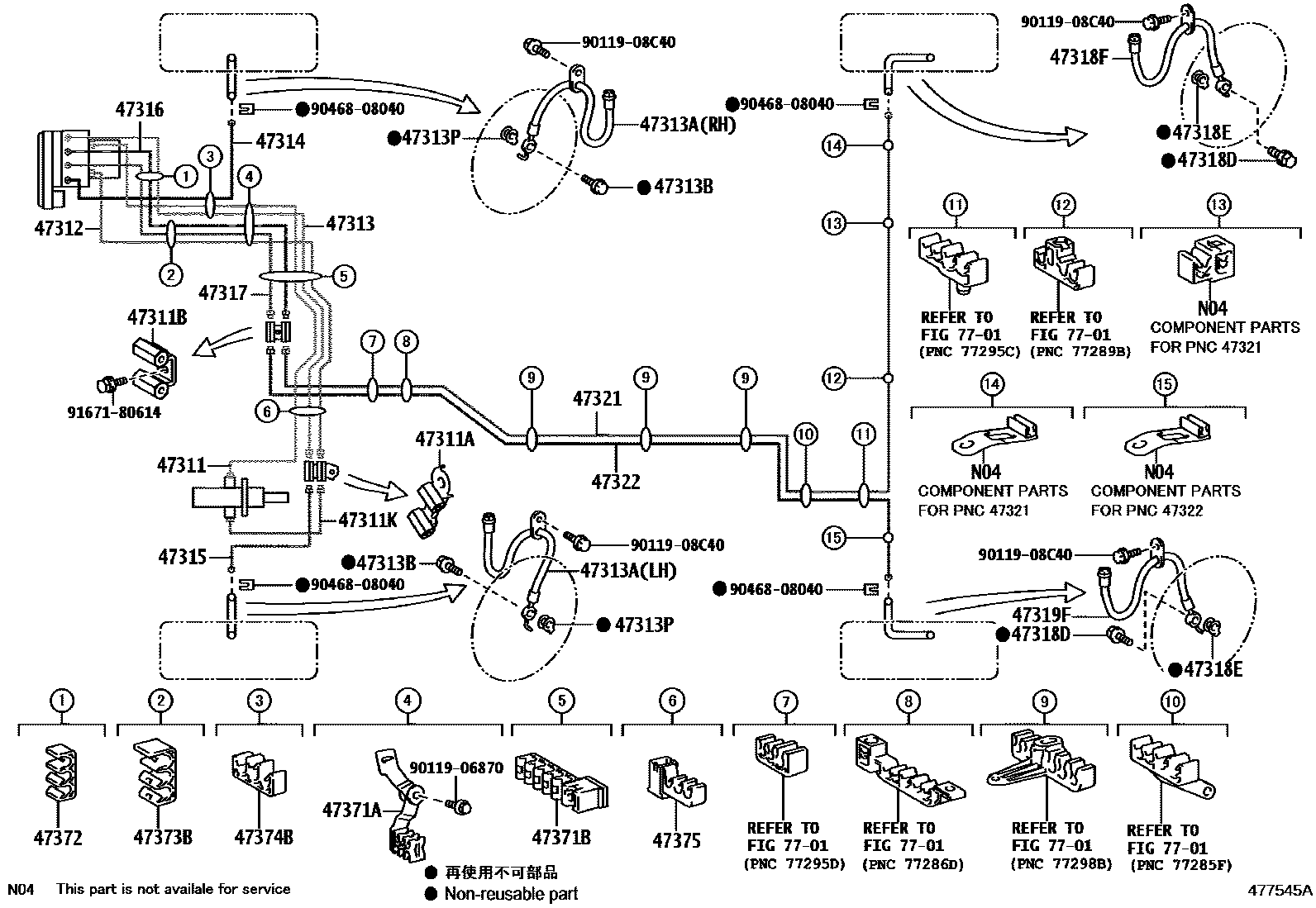

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

47311TUBE, FRONT BRAKE, NO.1

main47311-06560iASV5#,GSV50..RUP201411

main47311-33260iASV50,GSV50..JPP..LHD201409-201704

main47311-33280iASV50..RHD201409-201704

main47311-33290iAVV50..RHD201108-201308

main47311-33291iAVV50..RHD201309-201409

sub47311-33380

main47311-33300iAVV50..LHD201108-201112

main47311-33301iAVV50..LHD201409-201704

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-12066iASV50,GSV50..JPP..LHD201108-201409

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iASV50,AVV50,GSV50..JPP201108-201409

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-33240iASV50,GSV50..JPP..LHD201108-201409

47312TUBE, FRONT BRAKE, NO.2

main47312-06450iASV5#,GSV50..RUP201411

main47312-33220iASV50,GSV50..JPP..LHD201409-201704

main47312-33240iASV50..RHD201108-201409

47313TUBE, FRONT BRAKE, NO.3

main47313-06440iASV5#,GSV50..RUP201411

main47313-33220iASV50,GSV50..JPP..LHD201409-201704

main47313-33240iASV50..RHD201108-201409

main47313-33250iAVV50..RHD201108-201409

sub47313-33310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G45iASV50,AVV50,GSV50..JPP201108-201409

RH

main90947-02G48iASV5#,AVV50,GSV50201409

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iACV51,ASV50,GSV50..RUP201108-201411

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iASV50,AVV50,GSV50..JPP201108-201409

47314TUBE, FRONT BRAKE, NO.4

main47314-06400iASV5#,GSV50..RUP201411

main47314-33190iACV51,ASV50,GSV50..RUP201108-201411

main47314-33200iAVV50..RHD201108-201409

main47314-33210iAVV50..LHD201108-201409

main47314-33240iASV50,GSV50..JPP201409-201704

main47314-33260iAVV50..LHD201409-201704

main47314-33270iAVV50..RHD201409-201704

47315TUBE, FRONT BRAKE, NO.5

main47315-06421iASV5#,GSV50..RUP201411

main47315-33240iACV51,ASV50,GSV50..RUP201108-201411

main47315-33260iASV50..RHD201108-201409

main47315-33270iAVV50..RHD201108-201409

main47315-33280iAVV50..LHD201108-201409

main47315-33290iASV50,GSV50..JPP..LHD201409-201501

main47315-33291iASV50,GSV50..JPP..LHD201502-201704

main47315-33300iASV50..RHD201409-201704

main47315-33310iAVV50..LHD201409-201704

main47315-33320iAVV50..RHD201409-201704

47316TUBE, FRONT BRAKE, NO.6

main47316-06530iASV5#,GSV50..RUP201411

main47316-33300iACV51,ASV50,GSV50..RUP201108-201411

main47316-33320iASV50..RHD201409-201704

main47316-33330iAVV50..RHD201409-201704

sub47316-33420

main47316-33340iAVV50..LHD201409-201704

sub47316-33410

47317TUBE, FRONT BRAKE, NO.7

main47317-06510iASV5#,GSV50..RUP201411

main47317-33290iASV50,GSV50..JPP..LHD201409-201704

main47317-33310iASV50..RHD201409-201704

main47317-33320iAVV50..RHD201409-201704

sub47317-33410

main47317-33330iAVV50..LHD201409-201704

sub47317-33400

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iACV51,ASV50,GSV50..RUP201108-201411

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iASV50,AVV50,GSV50..JPP201108-201409

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G49iASV5#,AVV50,GSV50201409

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G50iACV51,ASV50,GSV50..RUP201108-201411

47321TUBE, REAR BRAKE, NO.1

main47321-06210iASV50,GSV50..RUP201411-201803

main47321-06220iASV51201503-201803

sub47321-06250

main47321-33180iACV51,ASV50,AVV50,GSV50201108-201411

main47321-33200iASV50,AVV50,GSV50..JPP201409-201704

47322TUBE, REAR BRAKE, NO.2

main47322-06210iASV50,GSV50..RUP201411-201803

main47322-06220iASV51201503-201803

sub47322-06250

main47322-33150iACV51,ASV50,AVV50,GSV50201108-201411

main47322-33170iASV50,AVV50,GSV50..JPP201409-201704

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33280iASV5#,GSV50201409

main90464-00876iAVV50..RHD201108-201409

main90464-00880iAVV50..LHD201409-201704

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D51iASV50,GSV50..JPP..LHD201108-201409

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iACV51,ASV50,GSV50..RUP201108-201411

main90949-01540iAVV50..LHD201409-201704

main90949-01D87iAVV50..RHD201409-201704

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00894iACV51,ASV50,GSV50..RUP201108-201411

main90949-01D16iAVV50..LHD201409-201704

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00919iASV5#,GSV50201409

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D08iASV50..RHD201409-201704

main90949-01D50iASV5#,GSV50..LHD201409

7701

9011906870

main90119-06870

9011908C40

main90119-08C40

9046808040

main90468-08040

9167180614

main91671-80614

30 parts on this diagram · 7 diagrams in section
