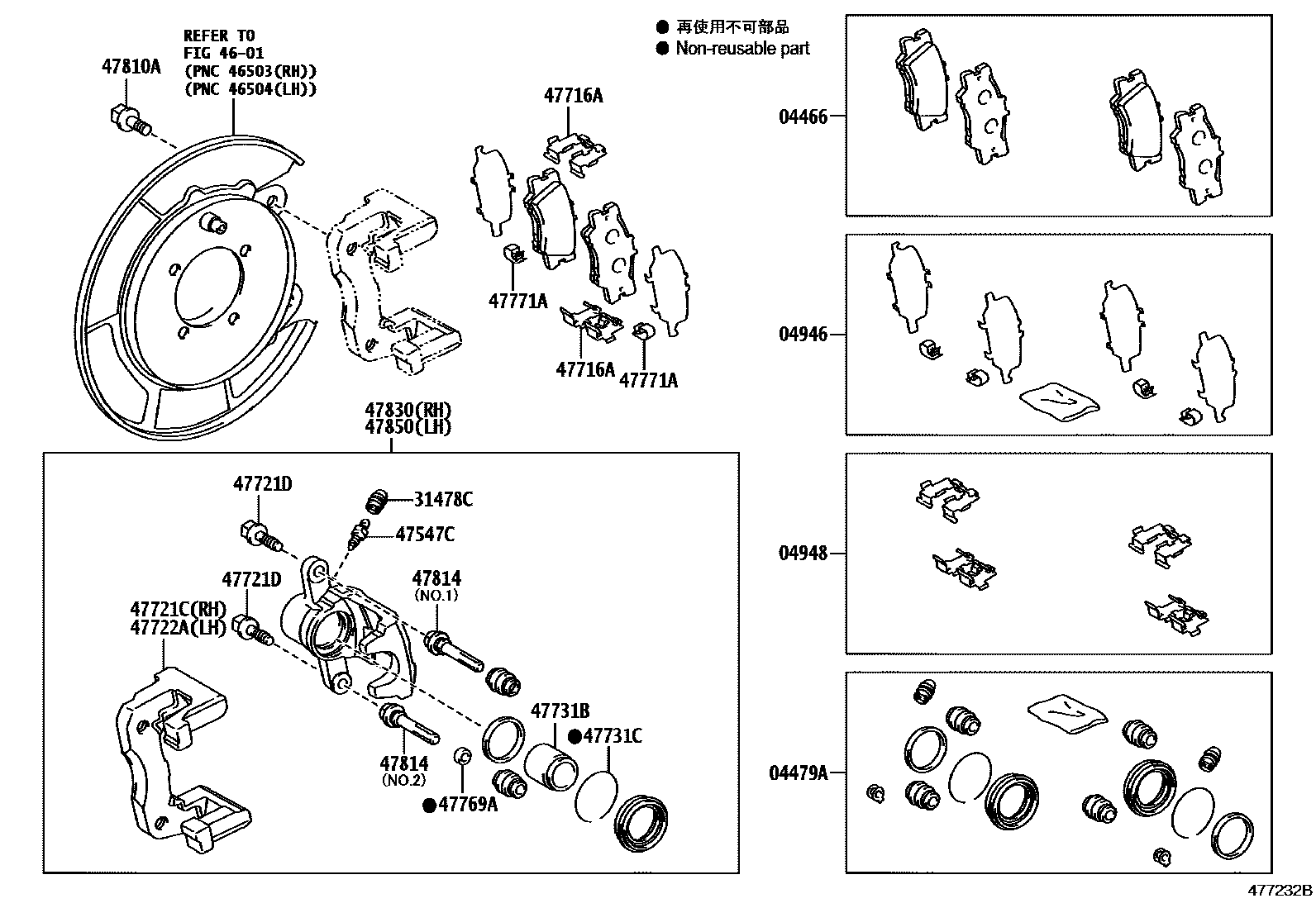

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33200iASV50,AVV50,GSV50..JPP201108-201411

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33340iASV50,AVV50,GSV50..JPP201108-201411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33040iASV50,AVV50,GSV50201108-201201

sub04946-33060

main04946-33060iASV50,AVV50,GSV50201201-201205

main04946-33070iASV50,AVV50,GSV50..JPP201206-201411

04948FITTING KIT, DISC BRAKE, REAR

main04948-33040iASV50,AVV50,GSV50..JPP201108-201411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iASV50,AVV50,GSV50..JPP201108-201411

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iASV50,AVV50,GSV50..JPP201108-201411

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-33211iASV50,AVV50,GSV50..JPP201108-201411

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-33241iASV50,AVV50,GSV50..JPP201108-201411

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iASV50,AVV50,GSV50..JPP201108-201411

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-33241iASV50,AVV50,GSV50..JPP201108-201411

47731BPISTON, REAR DISC BRAKE

main47831-33210iASV50,AVV50,GSV50..JPP201108-201411

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iASV50,AVV50,GSV50..JPP201108-201411

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iASV50,AVV50,GSV50..JPP201108-201411

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iASV50,AVV50,GSV50201108-201201

main47771-72010iASV50,AVV50,GSV50..JPP201201-201411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iACV51,ASV50,AVV50,GSV50201108-201803

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iASV50,AVV50,GSV50..JPP201108-201411

NO.1

main47815-33240iASV50,AVV50,GSV50..JPP201108-201411

NO.2

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33240iASV50,AVV50,GSV50..JPP201108-201411

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33240iASV50,AVV50,GSV50..JPP201108-201411

19 parts on this diagram · 1 diagram in section
