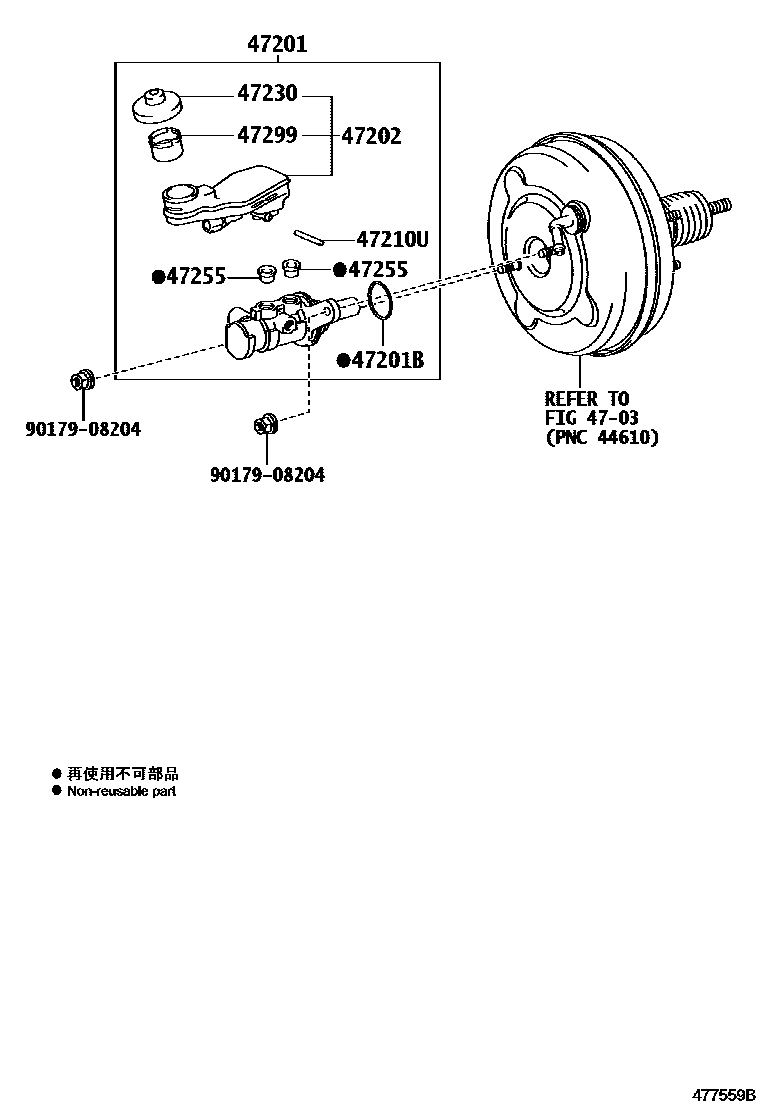

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33550iASV50..RHD201108-201209

sub47201-33551

main47201-33551iASV50..RHD201210-201307

sub47201-33552

main47201-33552iASV50..RHD201308-201601

sub47201-33553

main47201-33553iASV50..RHD201602-201704

main47201-33560iASV50,GSV50..LHD201108-201201

sub47201-33620

main47201-33620iACV51,ASV50,GSV50..LHD201202-201304

sub47201-33621

main47201-33621iACV51,ASV50,GSV50..RUP201305-201601

sub47201-33622

main47201-33622iASV5#,GSV50..LHD201602

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iACV51,ASV50,GSV50..RUP201108-201411

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33230iASV50..RHD201108-201308

sub47220-33231

main47220-33231iASV50..RHD201308-201704

main47220-33240iASV50,GSV50..LHD201108-201202

sub47220-33300

main47220-33300iASV5#,GSV50..LHD201202-201411

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iASV50..RHD201108-201411

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iAVV50201108-201704

main47230-33071iASV50..RHD201108-201411

sub47230-33072

main47230-33072iASV5#,GSV50201411

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iASV50,GSV50..LHD201108-201411

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iASV50,GSV50..LHD201108-201411

9017908204

main90179-08204

9 parts on this diagram · 4 diagrams in section
