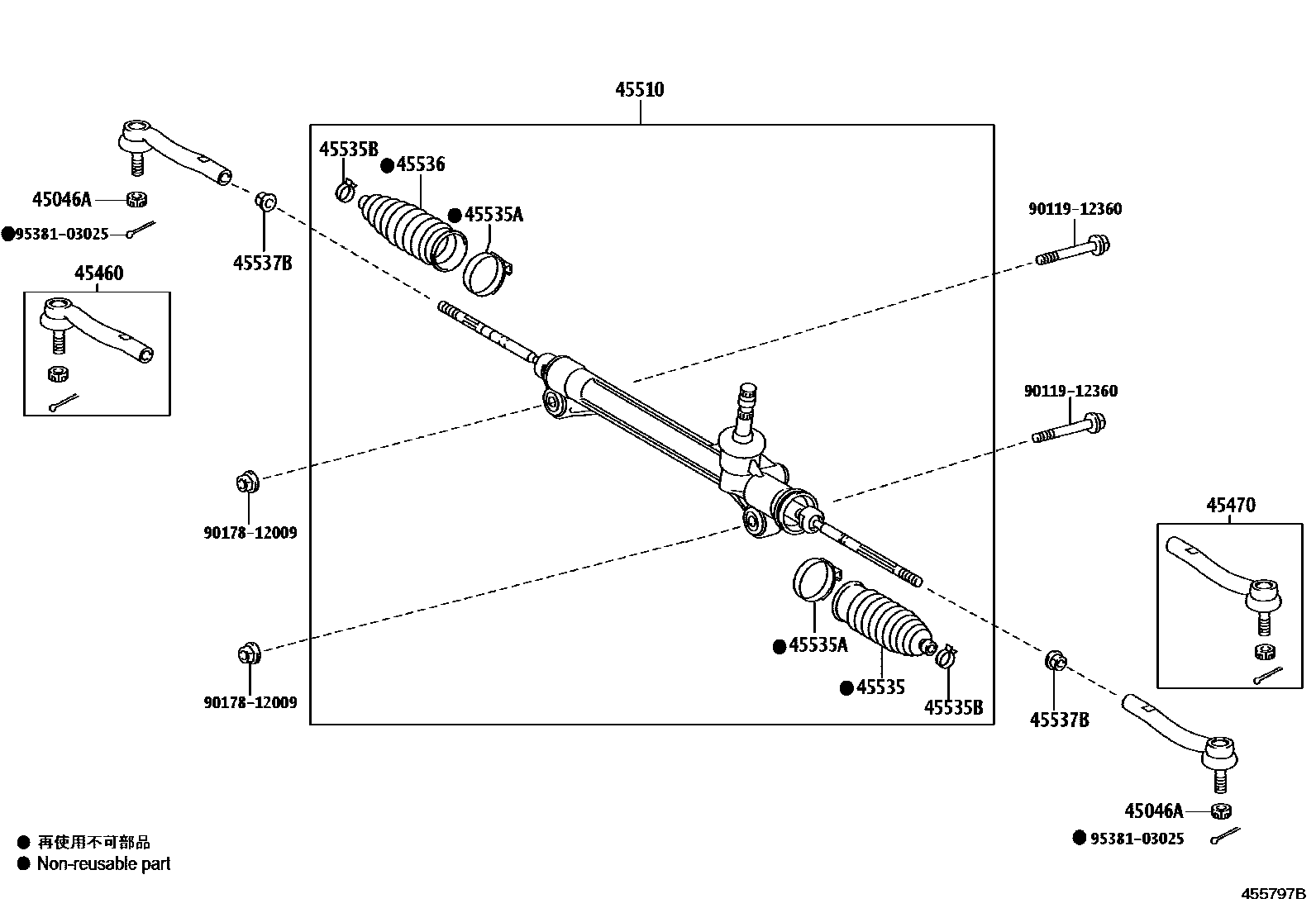

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iASV50,AVV50,GSV50..JPP201108-201411

45460ROD ASSY, TIE, RH

main45460-80005iACV51,ASV50,GSV50..RUP201108-201411

45470ROD ASSY, TIE, LH

main45470-39345iASV50,AVV50,GSV50..JPP201108-201411

45510GEAR ASSY, STEERING

main45510-33011iACV51,ASV50,GSV50..RUP201108-201411

main45510-33021iAVV50..LHD201108-201704

main45510-33031iASV50..RHD201108-201704

main45510-33041iAVV50..RHD201108-201704

45535BOOT, STEERING RACK, NO.1

main45535-39025iAVV50201108-201704

main45535-39035iACV51,ASV50,GSV50..RUP201108-201411

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-33010iAVV50201108-201704

main45538-48020iASV50,GSV50..JPP201108-201411

45535BCLIP(FOR STEERING RACK BOOT)

main45537-33010iAVV50201108-201704

main90467-19021iASV5#,GSV50201108-201411

45536BOOT, STEERING RACK, NO.2

main45535-39025iAVV50201108-201704

main45535-39035iACV51,ASV50,GSV50..RUP201108-201411

45537BNUT, RACK END LOCK

main90178-15003iASV50,AVV50,GSV50..JPP201108-201411

9011912360

main90119-12360

9017812009

main90178-12009

9538103025

main95381-03025

12 parts on this diagram · 2 diagrams in section
