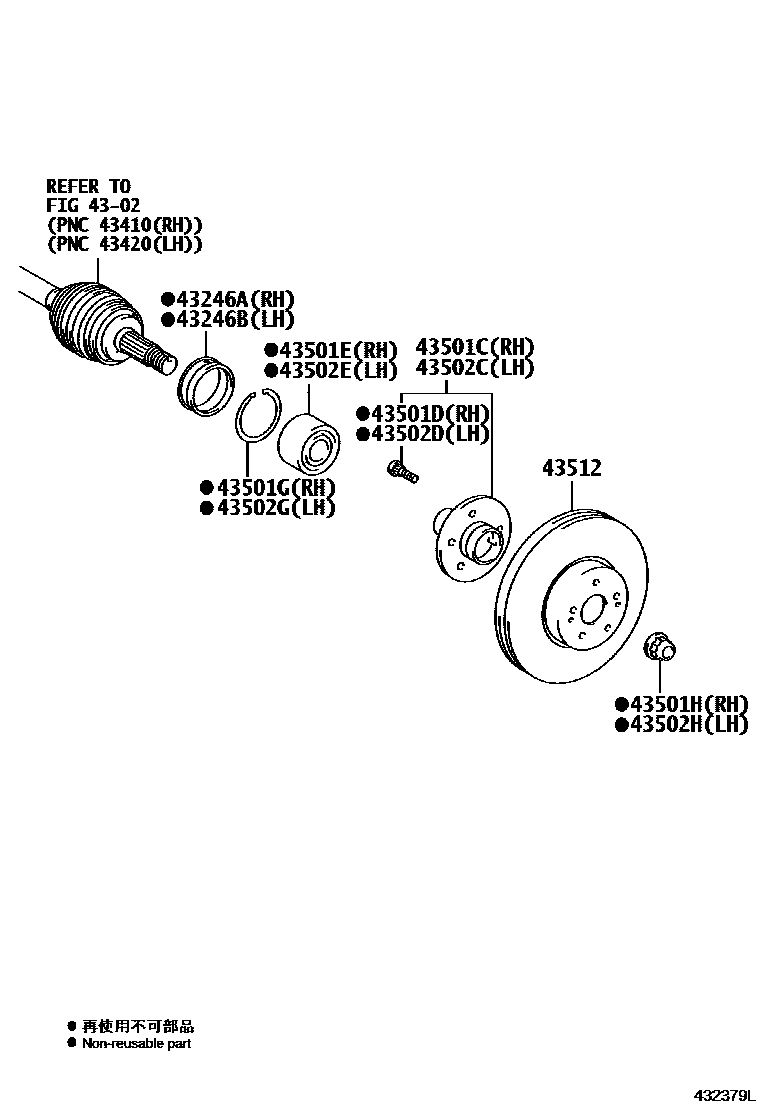

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-73010iACV51,ASV50,AVV50,GSV50201108-201411

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-73010iASV5#,AVV50,GSV50201108-201411

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28090iASV50..JPP201108-201411

main43502-28100iAVV50,GSV50201108-201411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASV50,AVV50,GSV50..JPP201108-201411

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003iASV50,AVV50,GSV50..JPP201108-201411

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iASV50,AVV50,GSV50..JPP201108-201411

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACV51,ASV50,GSV50..RUP201108-201411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28090iASV50..JPP201108-201411

main43502-28100iAVV50,GSV50..JPP201108-201411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASV50,AVV50,GSV50..JPP201108-201411

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003iACV51,ASV50,GSV50..RUP201108-201411

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iASV50,AVV50,GSV50..JPP201108-201411

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASV50,AVV50,GSV50..JPP201108-201411

43512DISC, FRONT

main43512-33140iACV51,ASV50,AVV50,GSV50201108-201803

14 parts on this diagram · 1 diagram in section
