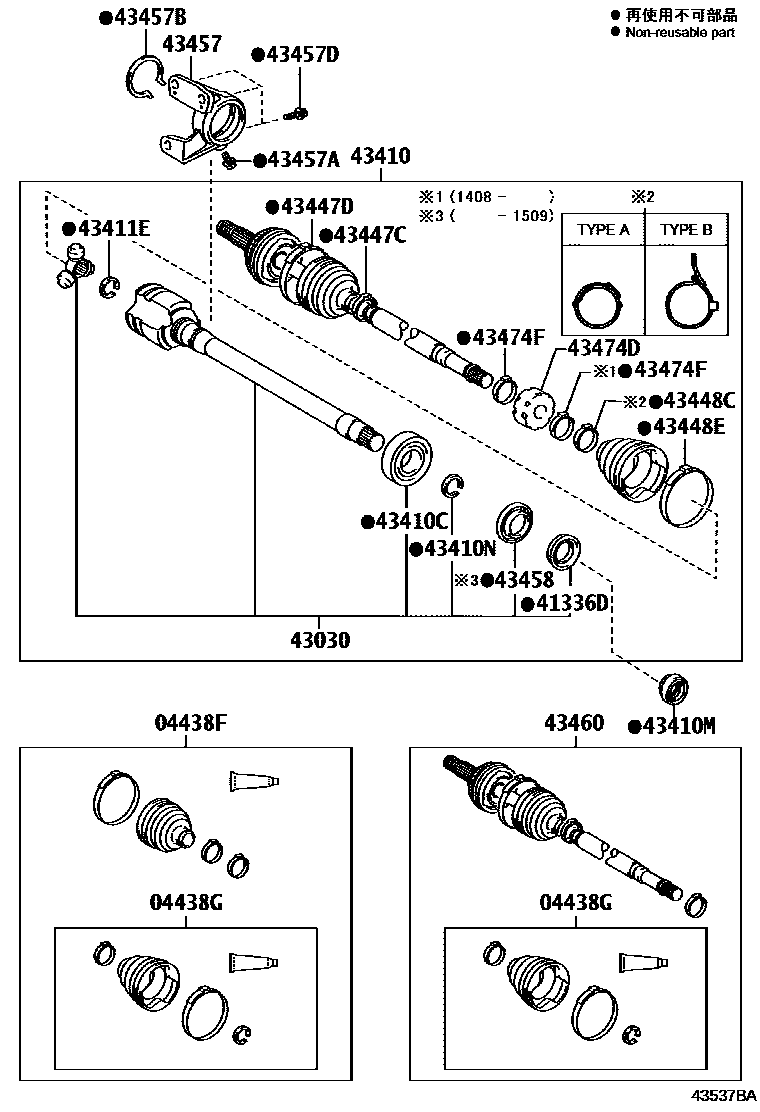

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
sub04427-06441
(L)
(L)
sub04427-0R104
sub04427-0R104
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
(L)
(L)
(J)
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
(L)
(J)
43410CBEARING (FOR FRONT DRIVE SHAFT)
(J)
(L)
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
(J)
(L)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
(J)
(L)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43458COVER, FRONT DRIVE SHAFT DUST
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
(L)
(J)
21 parts on this diagram · 7 diagrams in section
