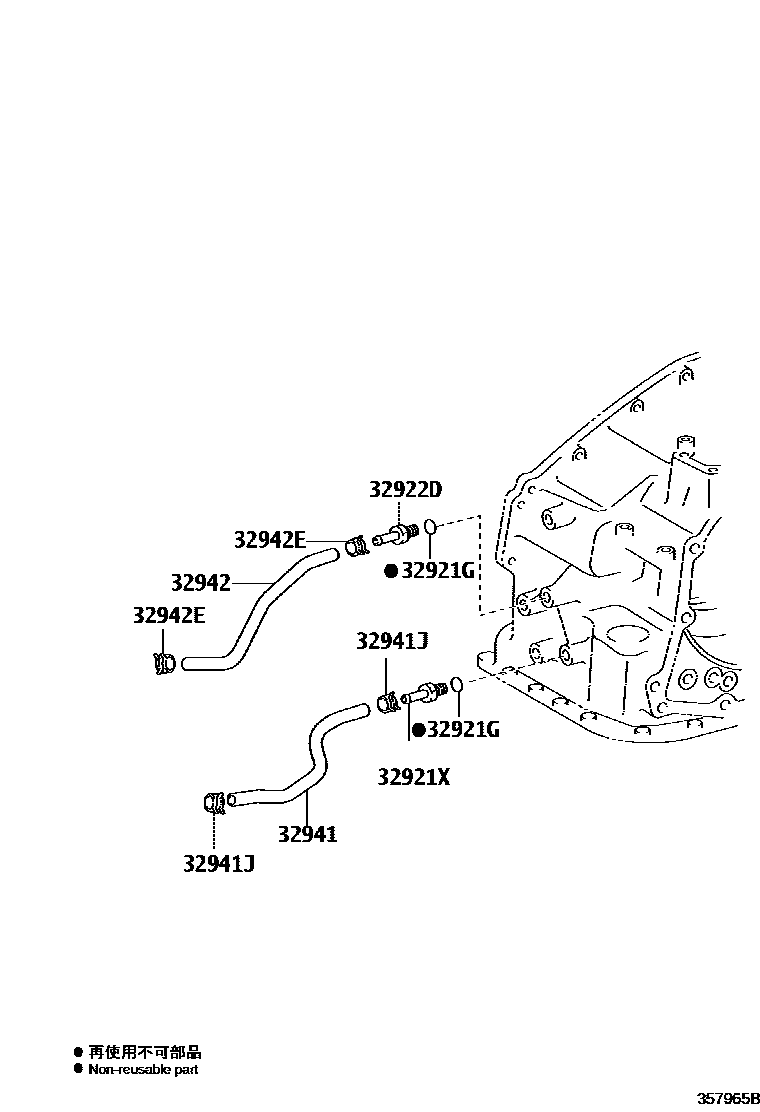

OIL COOLER & TUBE (ATM)

0001 1U660E,U760E 0002 1U660E 0003 1 0004 1U241E

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iACV51201307-201411

main90301-10189×2iACV51201208-201307

main90301-11031×2iASV50,GSV50..RUP201108-201411

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iASV50,GSV50..RUP201108-201411

main90407-13009iACV51201208-201411

sub90407-13010

main90407-14032iASV51201503

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-13004iACV51201208-201411

sub90404-13010

main90404-14027iASV50,GSV50..JPP201409-201704

32941HOSE, OIL COOLER INLET, NO.1

main32941-06100iACV51201208-201411

main32941-06130iASV51201503

main32941-33130iASV50,GSV50..JPP201409-201704

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90467-16022×2iASV50,GSV50..JPP201108-201409

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06090iACV51201208-201411

main32942-06120iASV51201503

main32942-33120iASV50,GSV50..JPP201108-201409

main32942-33141iGSV50..EUR201409-201704

PARAGUAY SPEC

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90467-16022×2iASV50,GSV50..JPP201108-201409

7 parts on this diagram · 4 diagrams in section
