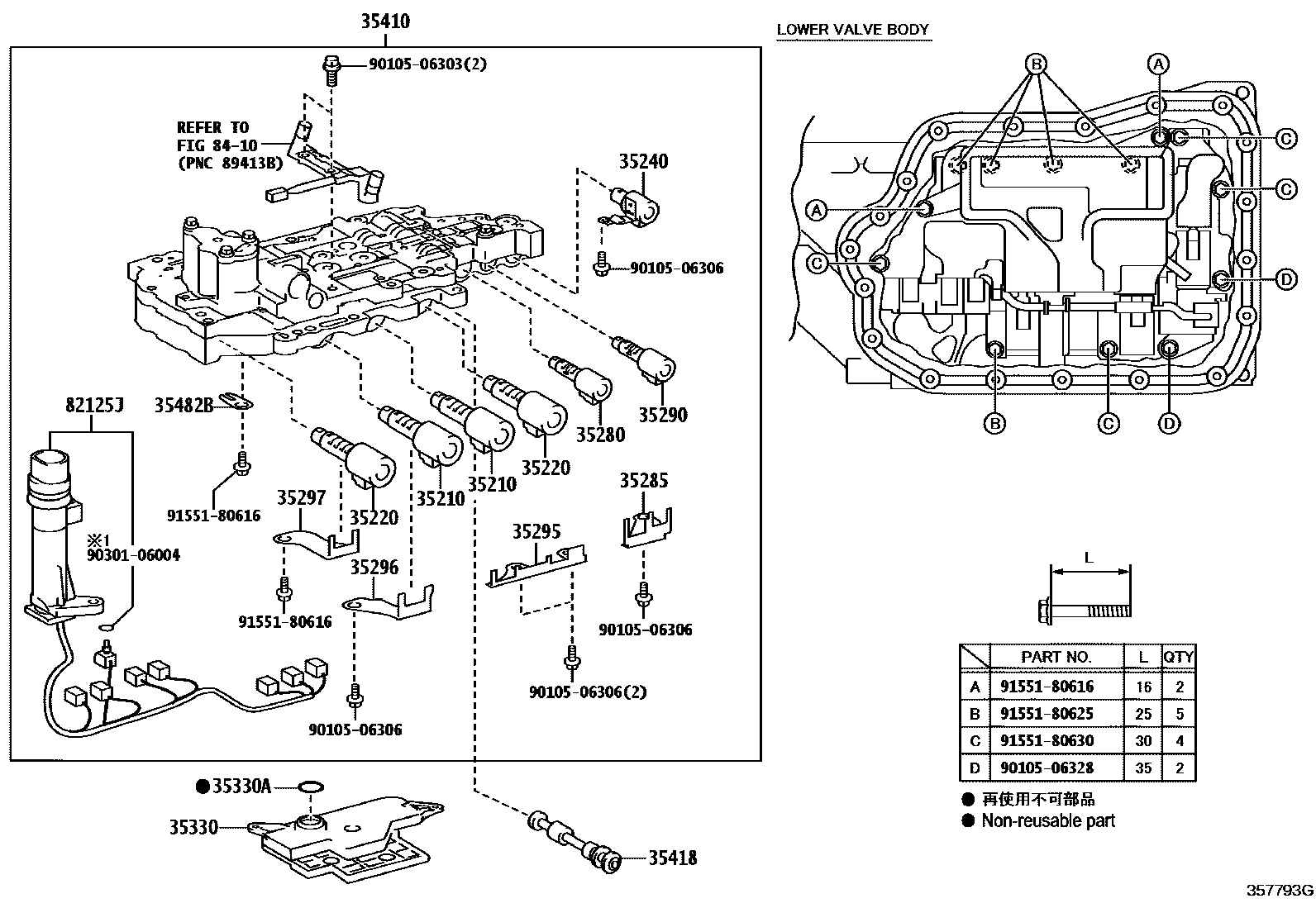

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E,U761E 0004 1U760E,U761E 0005 1U660E 0006 1U241E 0007 1U660E,U760E,U761E 0008 1U241E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iGSV50201108-201704

main35210-33050iACV51201208-201411

main35210-48030iASV51201503

main35210-73010iASV50201108-201410

sub35210-33030

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33030iACV51201208-201411

main35220-33040iGSV50..JPP201108-201704

main35220-33050iASV51201703

NO.1

main35220-33050iASV51201503-201703

main35220-33100iASV51201703

NO.2

main35220-48020iASV50..JPP201410-201704

main35220-73010iASV50..JPP201108-201410

sub35220-48020

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iACV51201208-201411

main35240-73010iASV50,GSV50..JPP201108-201704

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASV50..RUP201108-201704

main35280-33040iASV51201503

main35280-52040iGSV50..RUP201108-201704

35285PLATE, SOLENOID LOCK

main35285-33060iACV51201208-201411

main35285-33070iASV51201503

main35285-73010iASV50..RUP201108-201704

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASV50,GSV50..JPP201108-201704

main35290-48020iASV51201503

35295PLATE, SOLENOID LOCK, NO.2

main35295-33040iACV51201208-201411

main35295-33050iASV51201503

main35295-73010iASV50..RUP201108-201704

35296PLATE, SOLENOID LOCK, NO.3

main35296-33040iACV51201208-201411

main35296-33050iASV51201503

main35296-73010iASV50..JPP201108-201704

35297PLATE, SOLENOID LOCK, NO.4

main35297-33030iASV51201503

main35297-73010iASV50..JPP201108-201704

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iACV51201208-201411

main35330-33050iGSV50201108-201308

sub35330-48020

main35330-48020iGSV50..JPP201308-201704

main35330-73010iASV50..JPP201108-201704

main35330-73021iASV51201503

35330ARING, O (FOR OIL STRAINER)

main90301-27015iASV5#,GSV50..RUP201108-201704

35410BODY ASSY, TRANSMISSION VALVE

main35410-33190iACV51201208-201411

sub35410-33180

main35410-33240iGSV50..JPP201108-201704

main35410-33250iASV50..JPP201108-201704

sub35410-33260

main35410-33270iASV51201503

35418VALVE, MANUAL

main35418-21011iACV51201208-201411

main35418-33030iASV51201503

main35418-73010iASV50,GSV50..JPP201108-201704

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASV50..JPP201108-201704

82125JWIRE, TRANSMISSION

main82125-33110iACV51201208-201411

main82125-33150iGSV50201108-201803

sub82125-33151

main82125-73010iASV50201108-201803

sub82125-73011

8410

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

23 parts on this diagram · 6 diagrams in section
