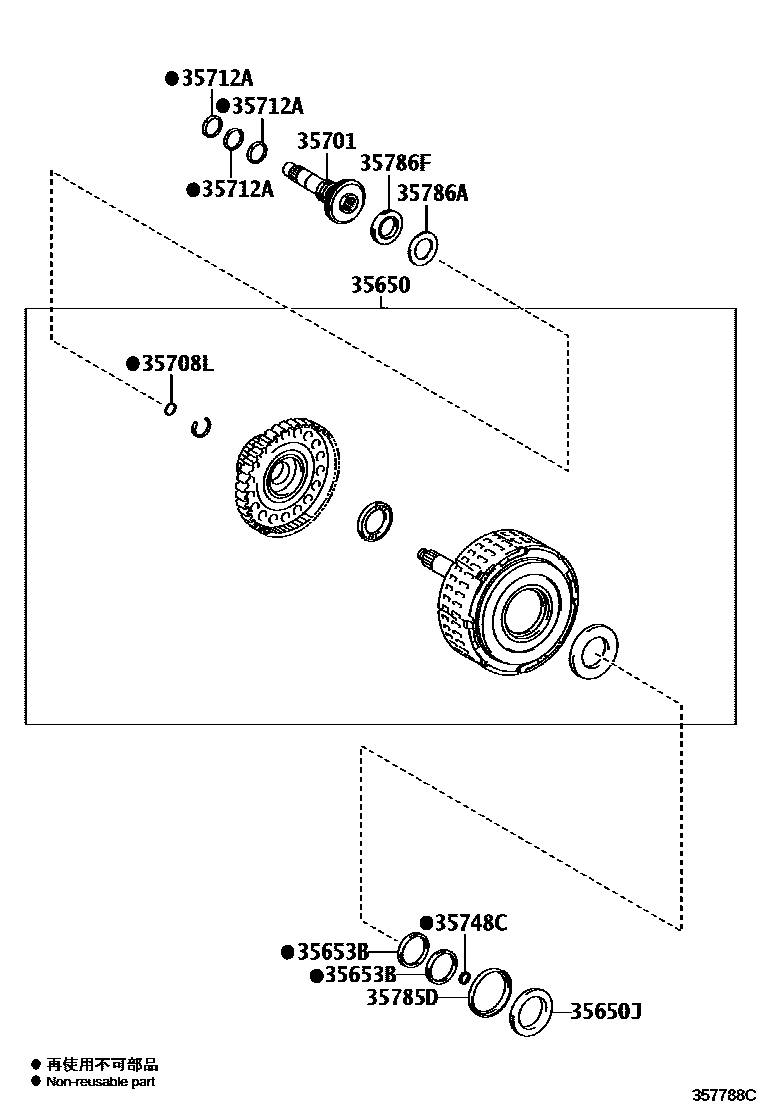

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U760E,U761E 0002 1U660E 0003 1U241E

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-33070iGSV50..JPP201108-201704

main35650-33110iASV51201503

main35650-73020iASV50..RUP201108-201704

sub35650-33090

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASV50,GSV50201108-201310

sub90374-48009

main90374-48009iASV50,GSV50..RUP201310-201704

35653RING, REAR CLUTCH OIL SEAL, OUTER

main35653-33010iACV51201208-201411

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010iASV50,GSV50..JPP201108-201704

35701SHAFT SUB-ASSY, INPUT

main35701-48010iACV51201208-201411

sub35701-28020

main35711-33060iGSV50..RUP201108-201704

main35711-33080iASV51201503

main35711-33090iASV50..JPP201108-201704

sub35711-33080

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11032iASV50,GSV50..JPP201108-201704

35712ARING, INPUT SHAFT OIL SEAL

main35712-21010iACV51201208-201411

main35712-33010iASV50,GSV50201108-201706

sub35712-33020

main35712-33020iASV5#,GSV50..RUP201707

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASV50,GSV50..RUP201108-201704

35785DRACE, THRUST BEARING, NO.4

main35785-33020iASV50,GSV50201108-201310

sub35785-48020

main35785-48020iASV50,GSV50..RUP201310-201704

35786ARACE, THRUST BEARING, NO.1

main35786-21010iACV51201208-201411

main35786-33010iASV5#,GSV50..RUP201108-201704

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iGSV50..JPP201108-201704

main90374-29007iASV5#..RUP201401-201704

11 parts on this diagram · 3 diagrams in section
