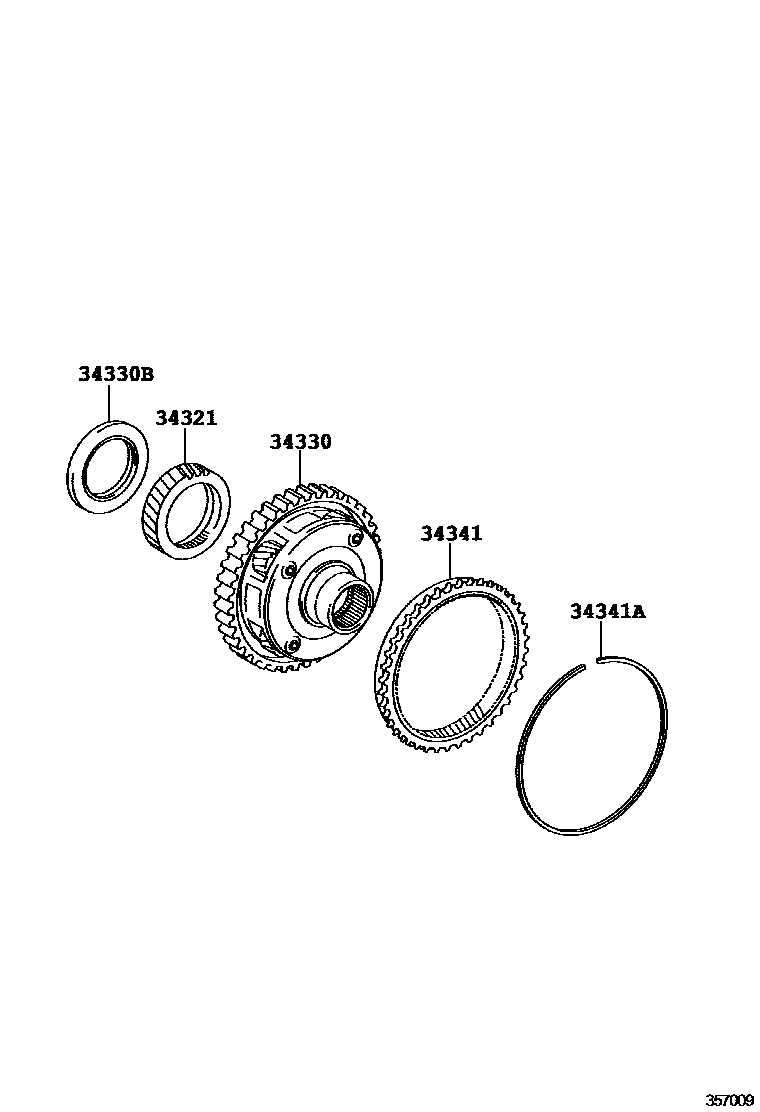

OVERDRIVE GEAR (ATM)

0001 1U660E,U760E,U761E 0002 1U241E

34321GEAR, UNDERDRIVE PLANETARY SUN

main34321-33010iGSV50..JPP201108-201704

main34321-73010iASV5#..RUP201108-201704

34330GEAR ASSY, UNDERDRIVE PLANETARY

main34330-33030iACV51201208-201411

sub34330-28H01

main34330-33040iGSV50..RUP201108-201704

main34330-33050iASV51201503

main34330-73010iASV50..JPP201108-201704

sub34330-33050

34330BBEARING, THRUST NEEDLE ROLLER

main90374-57003iASV50201108-201704

main90374-57006iASV50..JPP201401-201704

34341GEAR, UNDERDRIVE PLANETARY RING

main34341-33010iACV51201208-201411

sub34341-28020

sub34341-32011

main34341-33030iGSV50201108-201704

main34341-33040iASV51201503

main34341-33050iASV50201108-201704

sub34341-33040

34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)

main90520-99104iASV50,GSV50..JPP201108-201704

main90521-99121iACV51201208-201411

5 parts on this diagram · 2 diagrams in section
